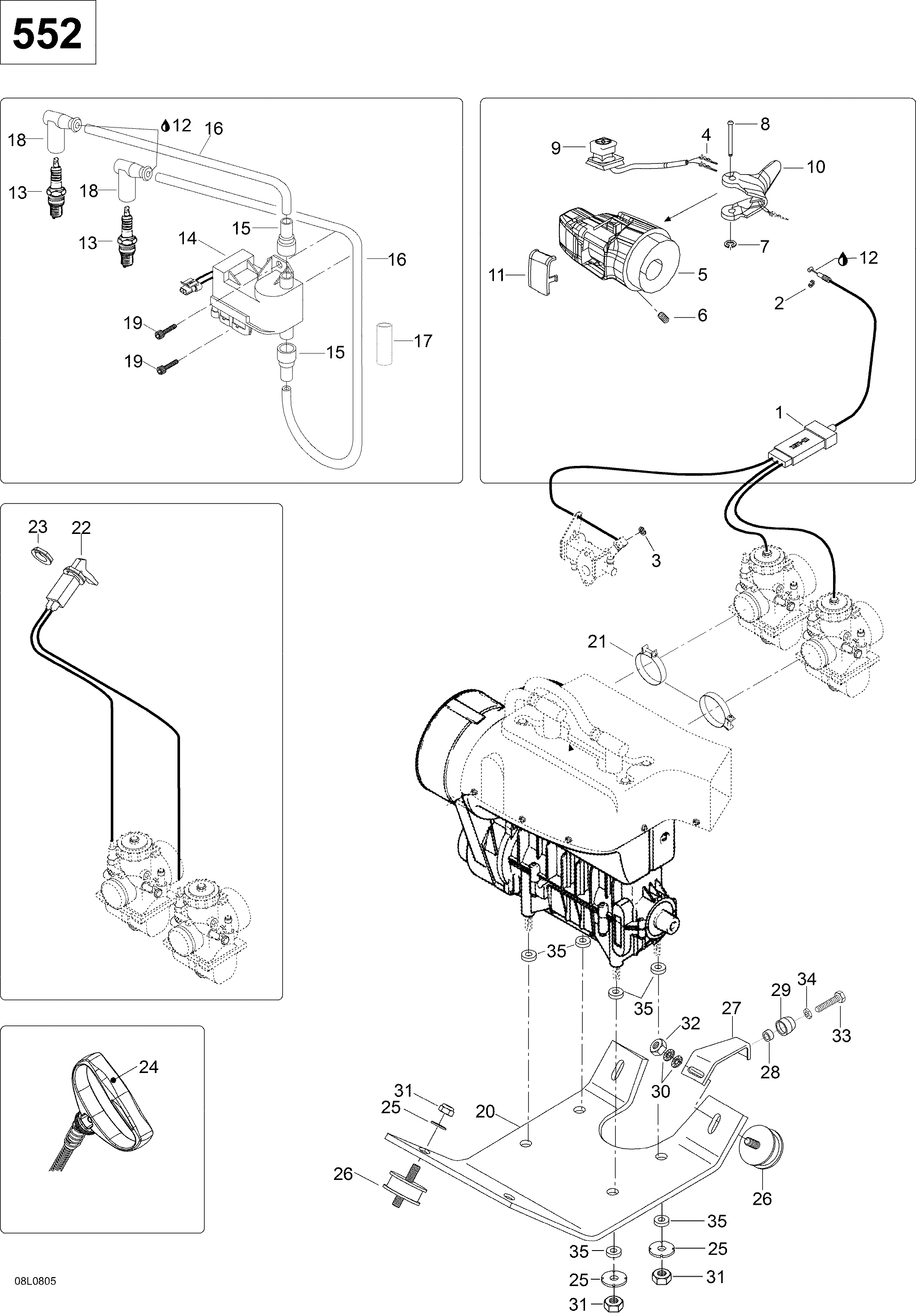

01- Engine And Engine Support 552 для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
1605249117 Throttle cableThrottle cable
-
231038 CirclipCirclip
-
331035 CirclipCirclip
-
442603 ConnectorConnector
-
5512059489 Throttle handle housingThrottle handle housing
-
6414440800 ScrewScrew
-
7414439000 CirclipCirclip
-
8414438700 PinPin
-
9515175410 Emergency switchEmergency switch
-
10512060214 Heat throttle handleHeat throttle handle
-
11572100901 CoverCover
-
12293550004 Dielectric grease, 150gDielectric grease, 150g
-
13414961100 Spark plug NGK BR9 ESSpark plug NGK BR9 ES
-
14512059626 Ingnition module. Includes 14 to 17Ingnition module. Includes 14 to 17
-
15515174900 Protection capProtection cap
-
16278001268 Ignition cable, l=690 mmIgnition cable, l=690 mm
-
17540806051 Protection hoseProtection hose
-
18278000237 Spark plug connectorSpark plug connector
-
1940322 Self tapping screw M6 x16Self tapping screw M6 x16
-
20605249349 Engine mount. plateEngine mount. plate
-
21414532700 ClampClamp
-
22535482 ChokeChoke
-
23414977200 Plastic nutPlastic nut
-
24572084400 GripGrip
-
25512056700 Lock washerLock washer
-
26570127700 Rubber mount.Rubber mount.
-
27605352447 SupportSupport
-
282846014 Rubber sleeveRubber sleeve
-
29605449240 SleeveSleeve
-
3020068 Lock washer D10Lock washer D10
-
3133012 Elastic stop nut M10Elastic stop nut M10
-
3233004 Nut M10Nut M10
-
3340121 Hex. screw M8 x 40Hex. screw M8 x 40
-
3433003 Nut M8Nut M8
-
355446347 SleeveSleeve
