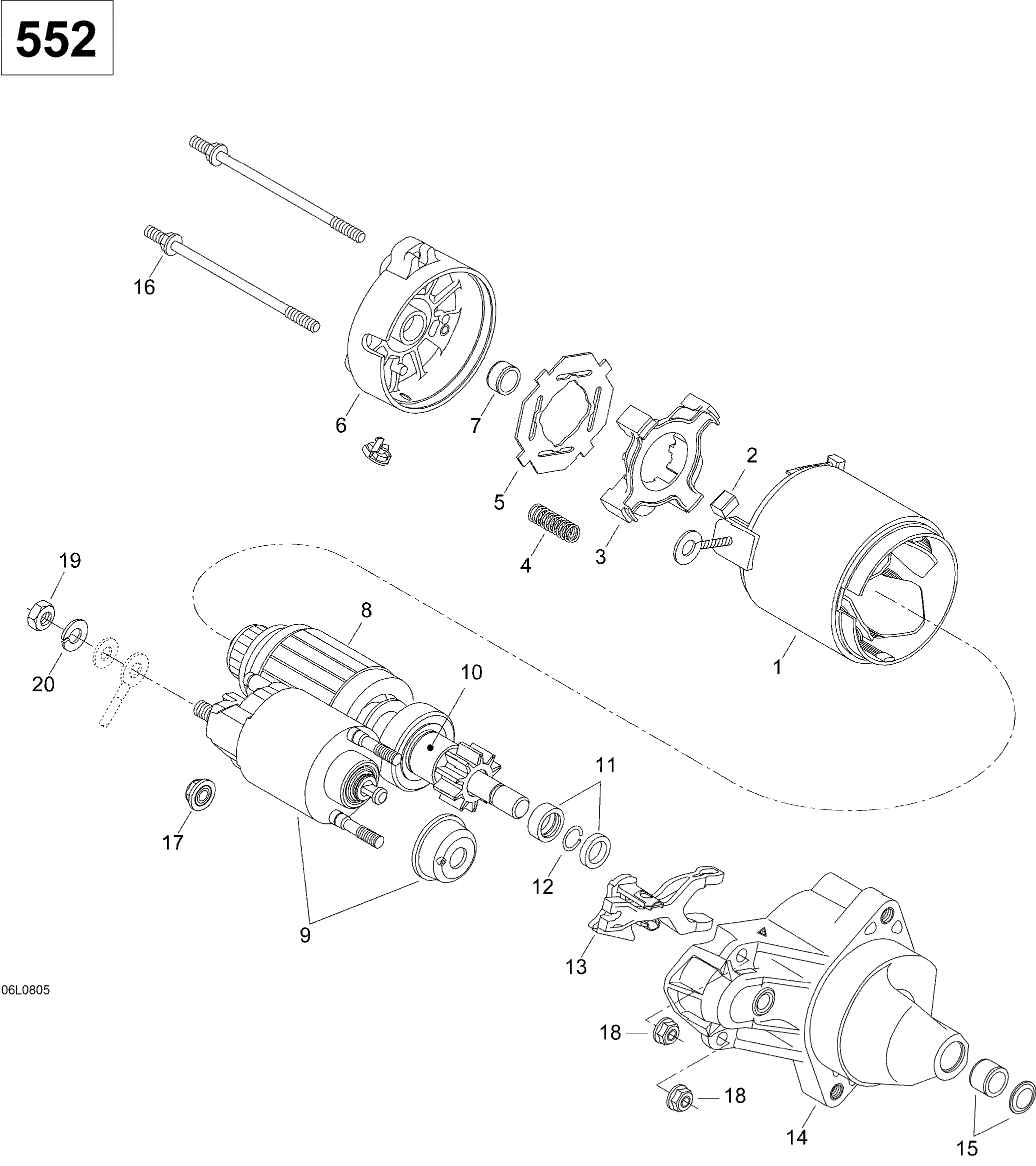

04- Electric Starter 552 для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
-410212400 Electric starter ass'y. Includes 1 to 20Electric starter ass'y. Includes 1 to 20
-
1410213106 Housing starterHousing starter
-
2410213107 BrushBrush
-
8410210200 Armature ass'yArmature ass'y
-
9410210300 Switch ass'ySwitch ass'y
-
10410210400 ClutchClutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
14410213113 HousingHousing
-
15410210900 Bushing brassBushing brass
-
16410212000 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
1933003 Nut M8Nut M8
-
2020014 Lock washer 8 mmLock washer 8 mm
