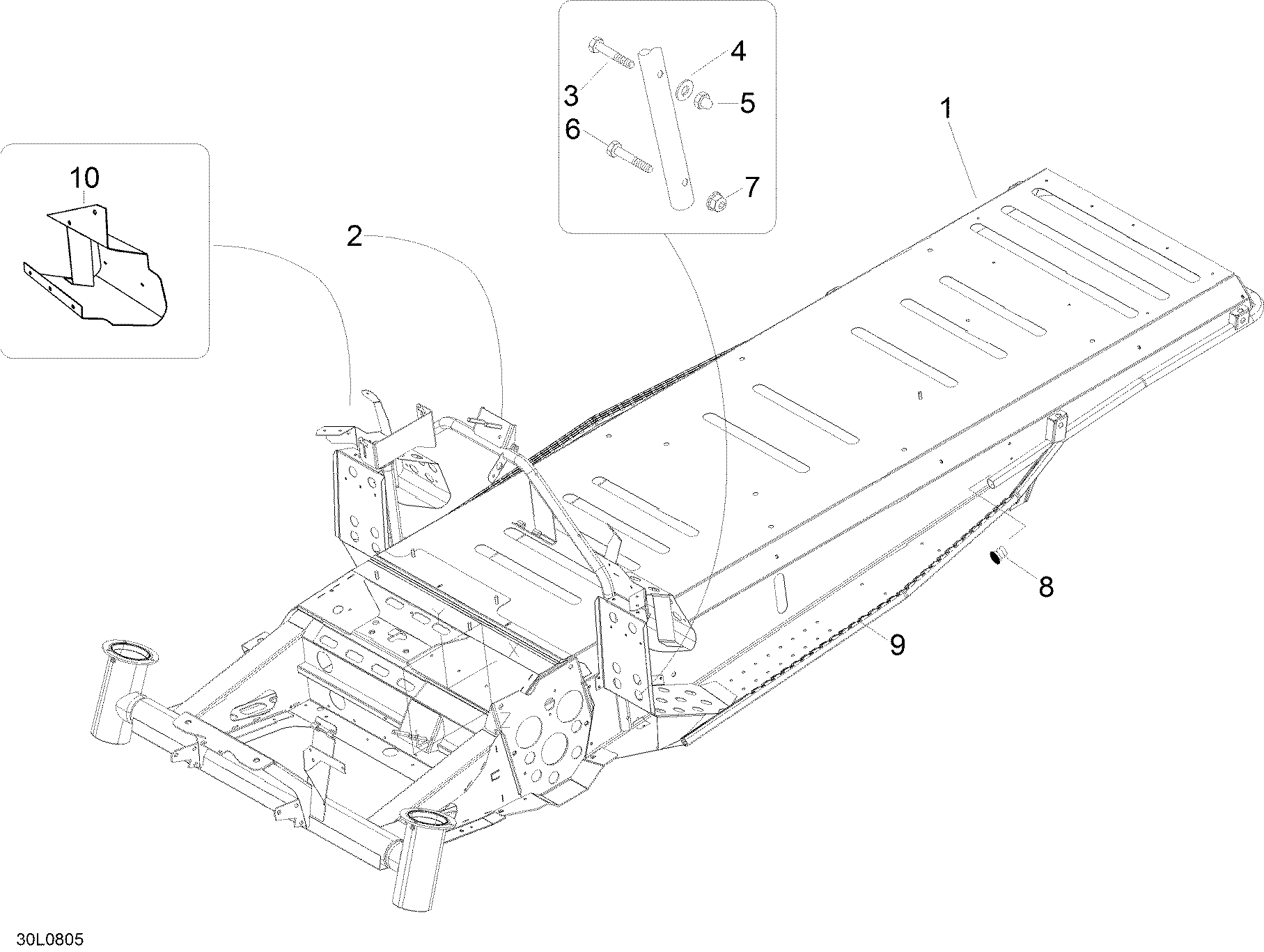

09- Frame для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
1605155133 Frame ass'yFrame ass'y
-
2605155220 Handle steering supp.Handle steering supp.
-
340003 Screw M6 x 35Screw M6 x 35
-
420003 WasherWasher
-
533051 Nut M6Nut M6
-
640002 Screw M6 x 40Screw M6 x 40
-
733200 Nut M6Nut M6
-
828210 Filler plug S-22Filler plug S-22
-
9605253506 Reinforcement R.H.Reinforcement R.H.
-
9605253507 Reinforcement L.H.Reinforcement L.H.
-
10605253504 Toe rest R.HToe rest R.H
-
10605253505 Toe rest L.HToe rest L.H
