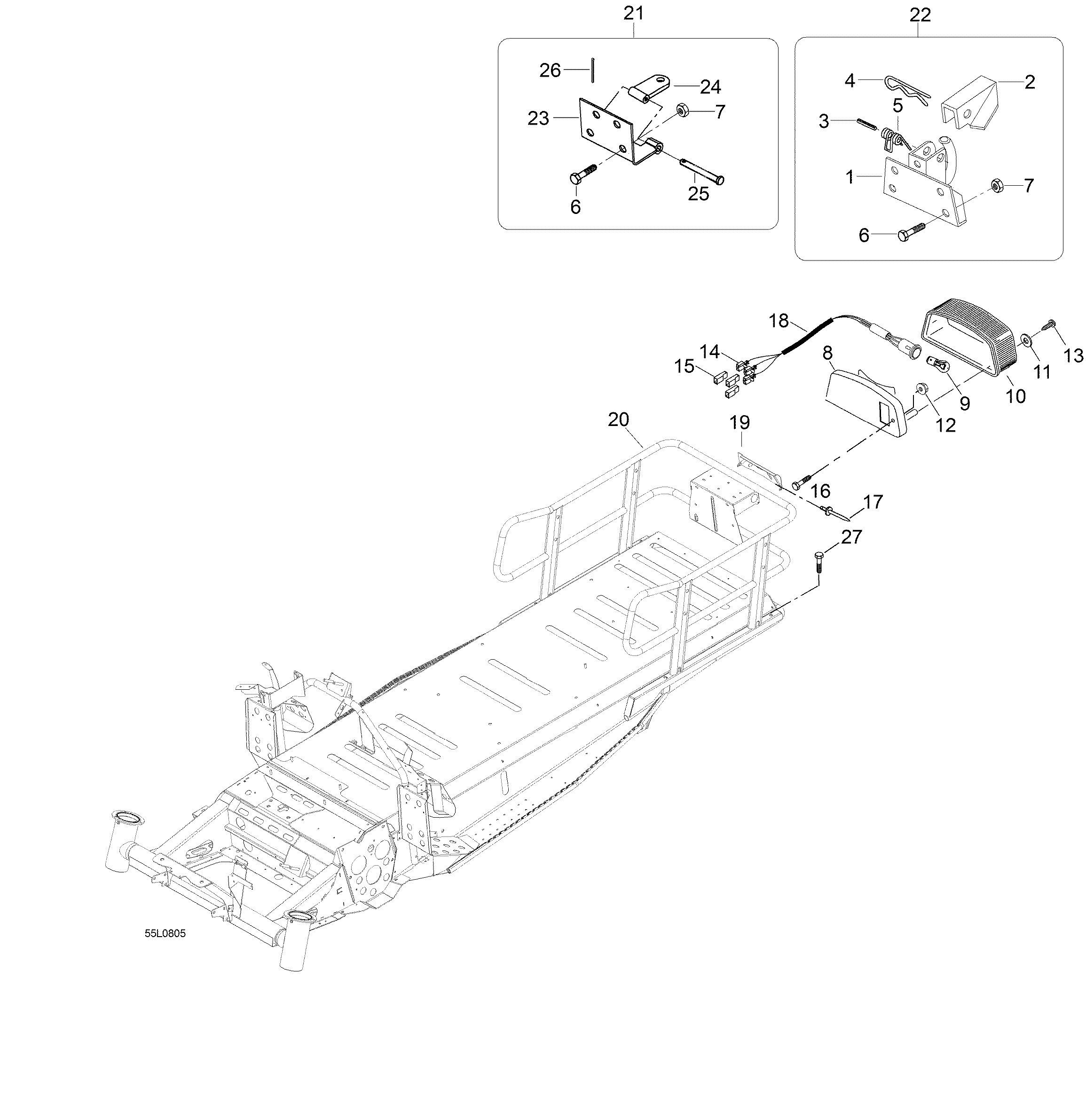

09- Rack для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
15344208 Hitch WeldHitch Weld
-
25440767 LockLock
-
341012 Spring PinSpring Pin
-
441029 Needle PinNeedle Pin
-
5545693 SpringSpring
-
640009 Hex. screw M8 x 50Hex. screw M8 x 50
-
733011 Elastic stop nut M8Elastic stop nut M8
-
8515175397 Taillamp housingTaillamp housing
-
9410504100 BulbBulb
-
10414513700 LensLens
-
11414516400 WasherWasher
-
1233200 Elastic flanged nut M6Elastic flanged nut M6
-
13414516300 ScrewScrew
-
1442178 ConnectorConnector
-
1542179 Connector housingConnector housing
-
1640032 Hex. screw M6 x 30Hex. screw M6 x 30
-
1736010 RivetRivet
-
1839023 TubingTubing
-
19605351510 SpacerSpacer
-
20605255117 RackRack
-
215344152 Hitch Assy. Includes 23 to 26Hitch Assy. Includes 23 to 26
-
225344156 Hitch Assy. Includes 1-5Hitch Assy. Includes 1-5
-
235344151 PlatePlate
-
24548745 Hitch plateHitch plate
-
25560309200 Pin-retainerPin-retainer
-
2641031 Saksisokka 2,5x16 DIN 94-SSaksisokka 2,5x16 DIN 94-S
-
2740316 Screw M 8x20Screw M 8x20
