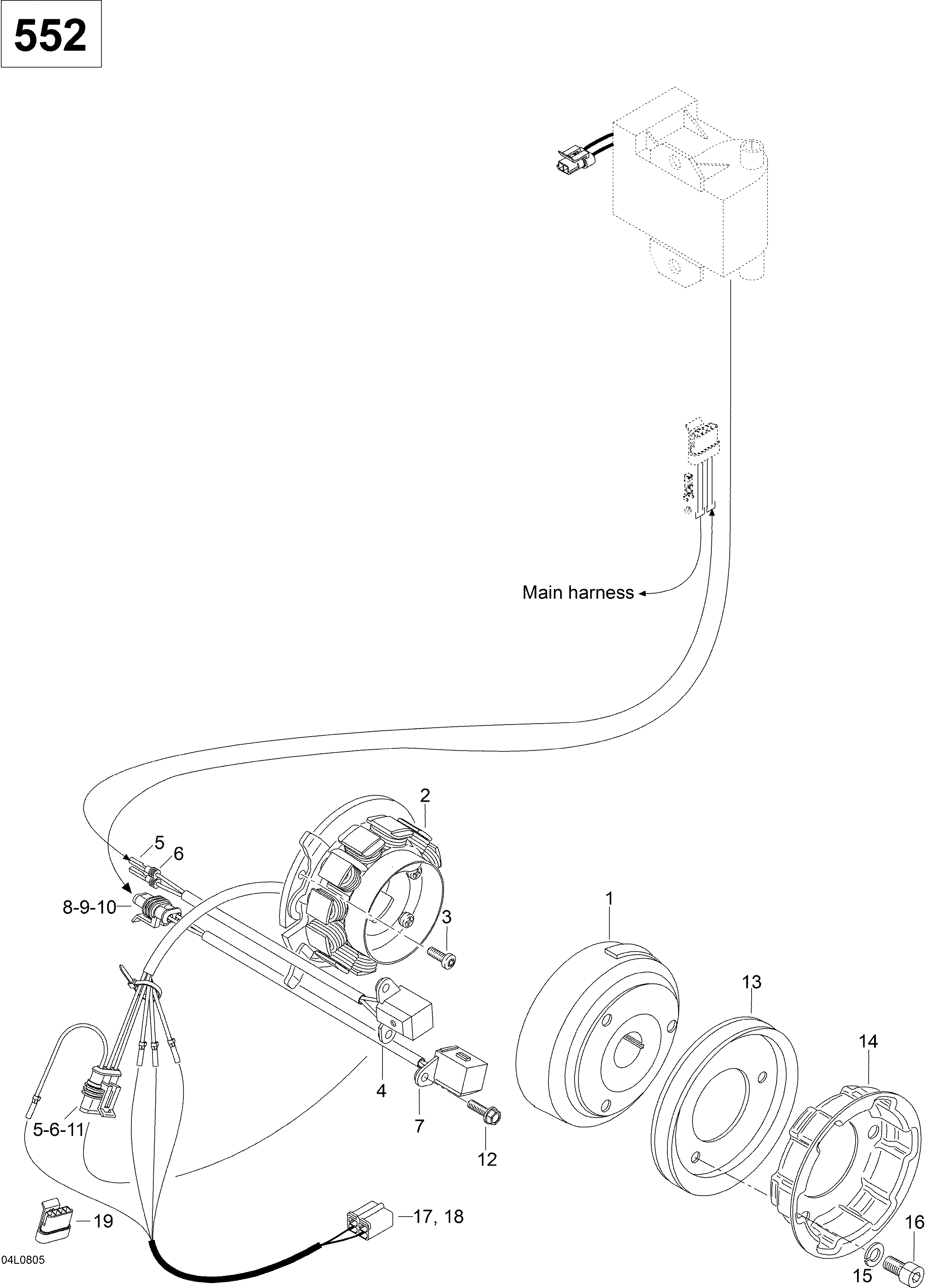

03- Magneto 552 для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
-420888970 Magneto ass'y 12V/340W. Includes 1 to 2Magneto ass'y 12V/340W. Includes 1 to 2
-
1420889376 Magneto flywheelMagneto flywheel
-
2420889369 Stator plate ass'yStator plate ass'y
-
3420641521 Torx, allen screw M5 x 16Torx, allen screw M5 x 16
-
4420966548 Pick up ass'y for reverse. Includes 4 to 6Pick up ass'y for reverse. Includes 4 to 6
-
5278001014 Female terminalFemale terminal
-
6278001013 SealSeal
-
7420966546 Pick up assy. Includes 7 to 10Pick up assy. Includes 7 to 10
-
8409209500 Female terminal housingFemale terminal housing
-
9278001014 Female terminalFemale terminal
-
10278001013 SealSeal
-
11409209600 Female terminal housingFemale terminal housing
-
12420941925 Taptite Screw M5 x 16Taptite Screw M5 x 16
-
13420980486 V-belt pulleyV-belt pulley
-
14420852414 Starting pulleyStarting pulley
-
15420845311 Lock washer 8 mmLock washer 8 mm
-
16420440852 Torx flange screw M8 x 16Torx flange screw M8 x 16
-
17278001473 Male connector housingMale connector housing
-
18278001474 Male lockMale lock
-
1942618 Male connector housing (4 circuit)Male connector housing (4 circuit)
