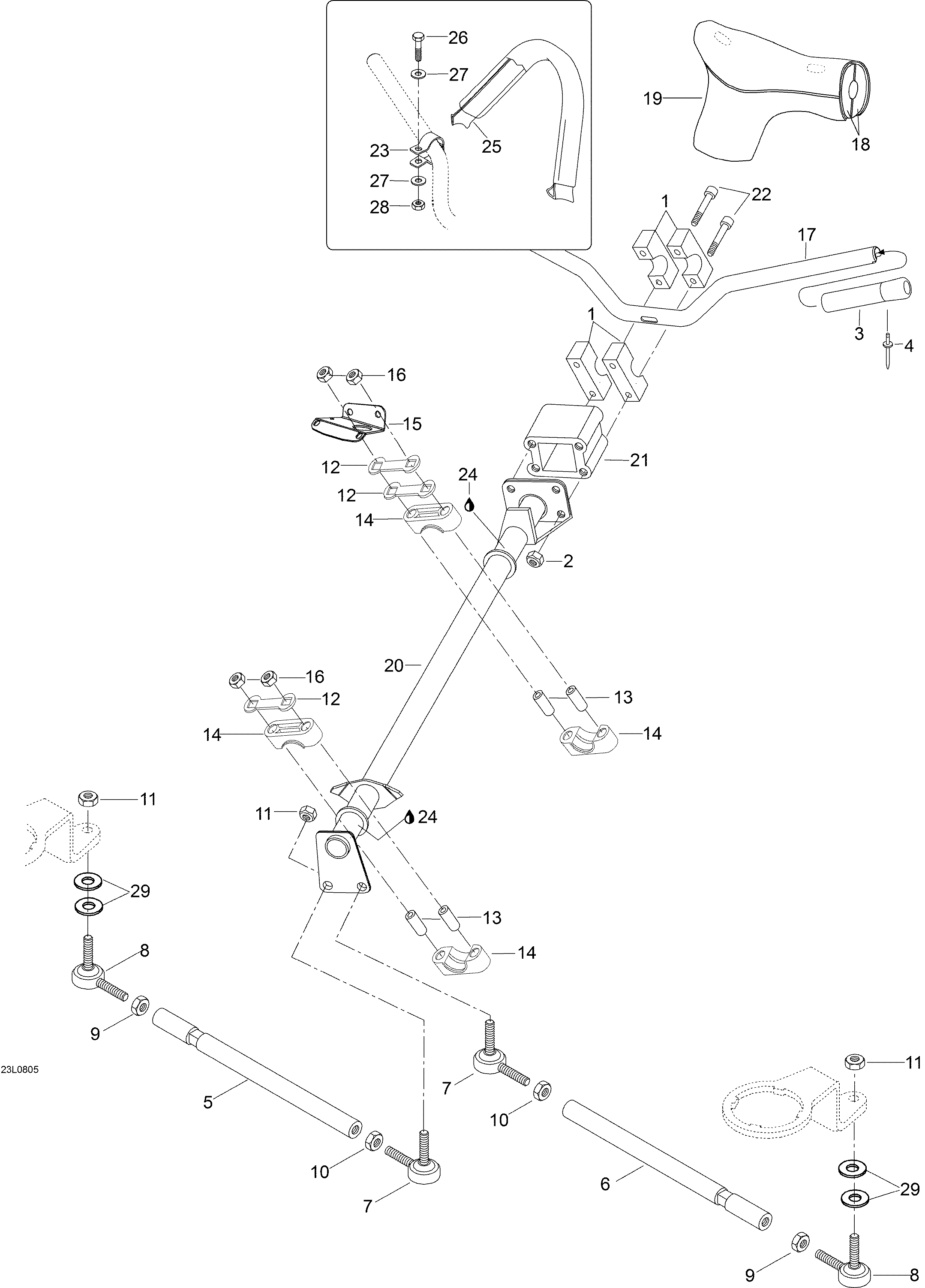

07- Steering System для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
1548448 Steering clampSteering clamp
-
233011 Elastic stop nut M8Elastic stop nut M8
-
35340464 GripGrip
-
436005 RivetRivet
-
5605455619 R.H. tie rod lenght. 430 mmR.H. tie rod lenght. 430 mm
-
6605455620 L.H. tie rod lenght. 388 mmL.H. tie rod lenght. 388 mm
-
7506151495 L.H. Ball jointL.H. Ball joint
-
8506151492 R.H. Ball jointR.H. Ball joint
-
933019 Nut R.H.Nut R.H.
-
1033017 Nut L.H.Nut L.H.
-
1133023 Elastic stop nut M10Elastic stop nut M10
-
12506150600 Stopper plateStopper plate
-
13506150500 Housing bushingHousing bushing
-
14506150400 Half bushingHalf bushing
-
15605352322 Console supportConsole support
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17605251368 Handle barHandle bar
-
18605252111 Foam, rearFoam, rear
-
18605252110 Foam, frontFoam, front
-
19605254571 CoverCover
-
20605255608 Main tubeMain tube
-
21605349584 Extension 60mmExtension 60mm
-
2240124 Socket head screw M8 x 100Socket head screw M8 x 100
-
23506151792 Support plateSupport plate
-
24219700417 Synthetic greaseSynthetic grease
-
25506152115 Tie-downTie-down
-
2640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
2720003 WasherWasher
-
2833010 Elastic stop nut M6Elastic stop nut M6
-
2931014 Shim ringShim ring
