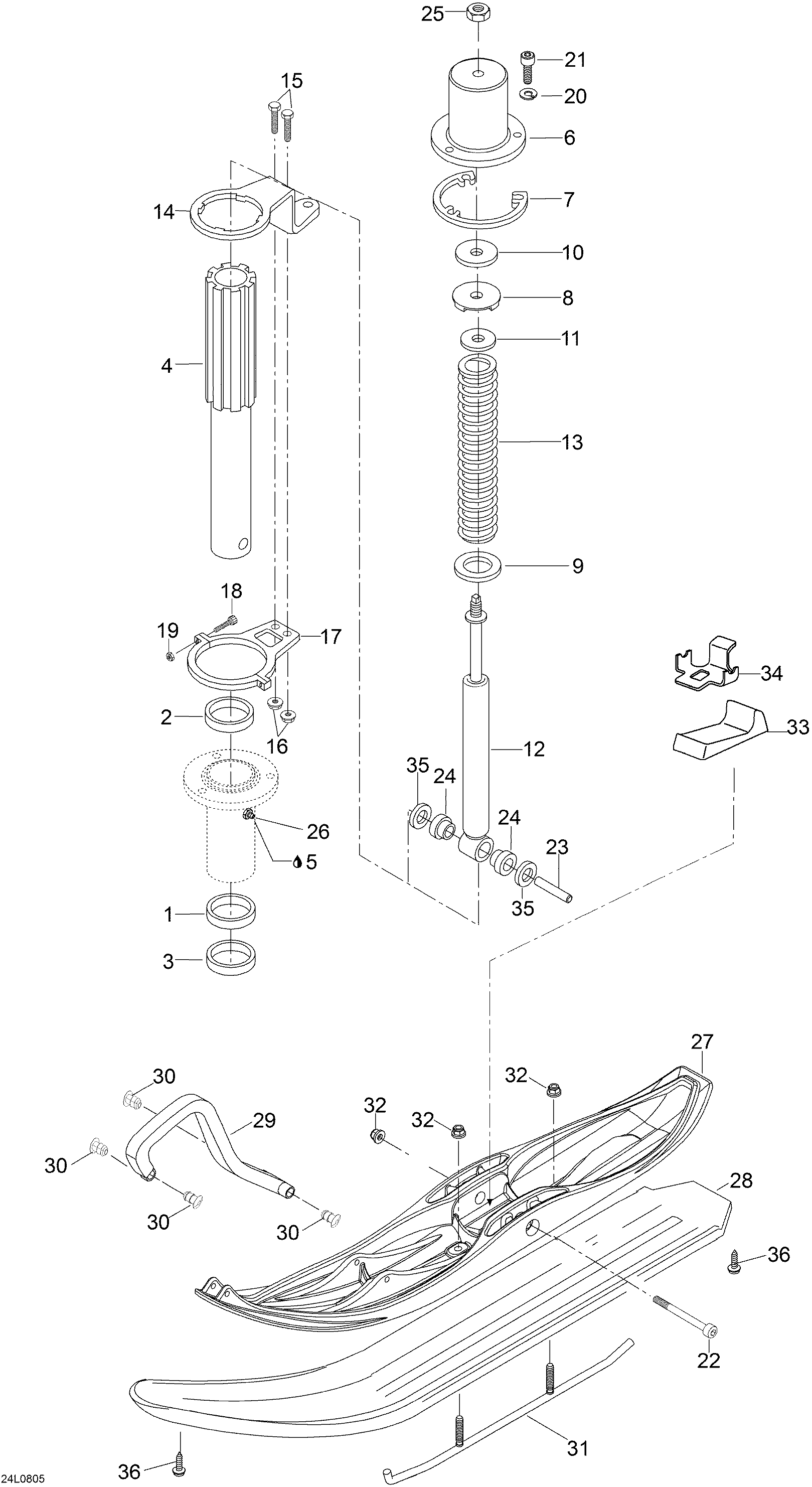

07- Front Suspension And Ski для BRP Lynx YETI Pro 550 - 2008
-
№АртикулНазвание
-
1414803200 Lower cushionLower cushion
-
2414803100 Upper cushionUpper cushion
-
3316373 Oil sealOil seal
-
45245362 Ski legSki leg
-
5219700417 Synthetic greaseSynthetic grease
-
6605249284 CoverCover
-
7503145600 SpacerSpacer
-
8605354835 StopperStopper
-
9549493 WasherWasher
-
105440399 WasherWasher
-
11549492 PlatePlate
-
12505070920 ShockShock
-
135241330 SpringSpring
-
14605353422 Steering Arm RHSteering Arm RH
-
14605353423 Steering Arm LHSteering Arm LH
-
1540031 Hex. screw M6 x 25Hex. screw M6 x 25
-
1633200 Elastic flanged nut M6Elastic flanged nut M6
-
175344180 Support ass'ySupport ass'y
-
1840146 Socket head screw M4 x 20Socket head screw M4 x 20
-
1933008 Elastic stop nut M4Elastic stop nut M4
-
2020014 Lock washer A8Lock washer A8
-
2140305 Socket head screw M8 x 20Socket head screw M8 x 20
-
2240225 Socket head screw M10 x 140Socket head screw M10 x 140
-
23605348921 CushionCushion
-
24572034500 SpacerSpacer
-
2533012 Elastic stop nut M10Elastic stop nut M10
-
2634019 Grease nippleGrease nipple
-
27605153775 ADJ-ski. Includes 27 to 28ADJ-ski. Includes 27 to 28
-
28605153964 Ski linerSki liner
-
29505070963 HandleHandle
-
30505071812 RetainerRetainer
-
31605348424 Carbide ski runner ass'yCarbide ski runner ass'y
-
3233074 Elastic flanged nut M10Elastic flanged nut M10
-
33605348439 Rubber damperRubber damper
-
34605348437 Support plateSupport plate
-
35605448594 SpacerSpacer
-
36605640019 Plastofast-screw 6x18 MP PZPlastofast-screw 6x18 MP PZ
