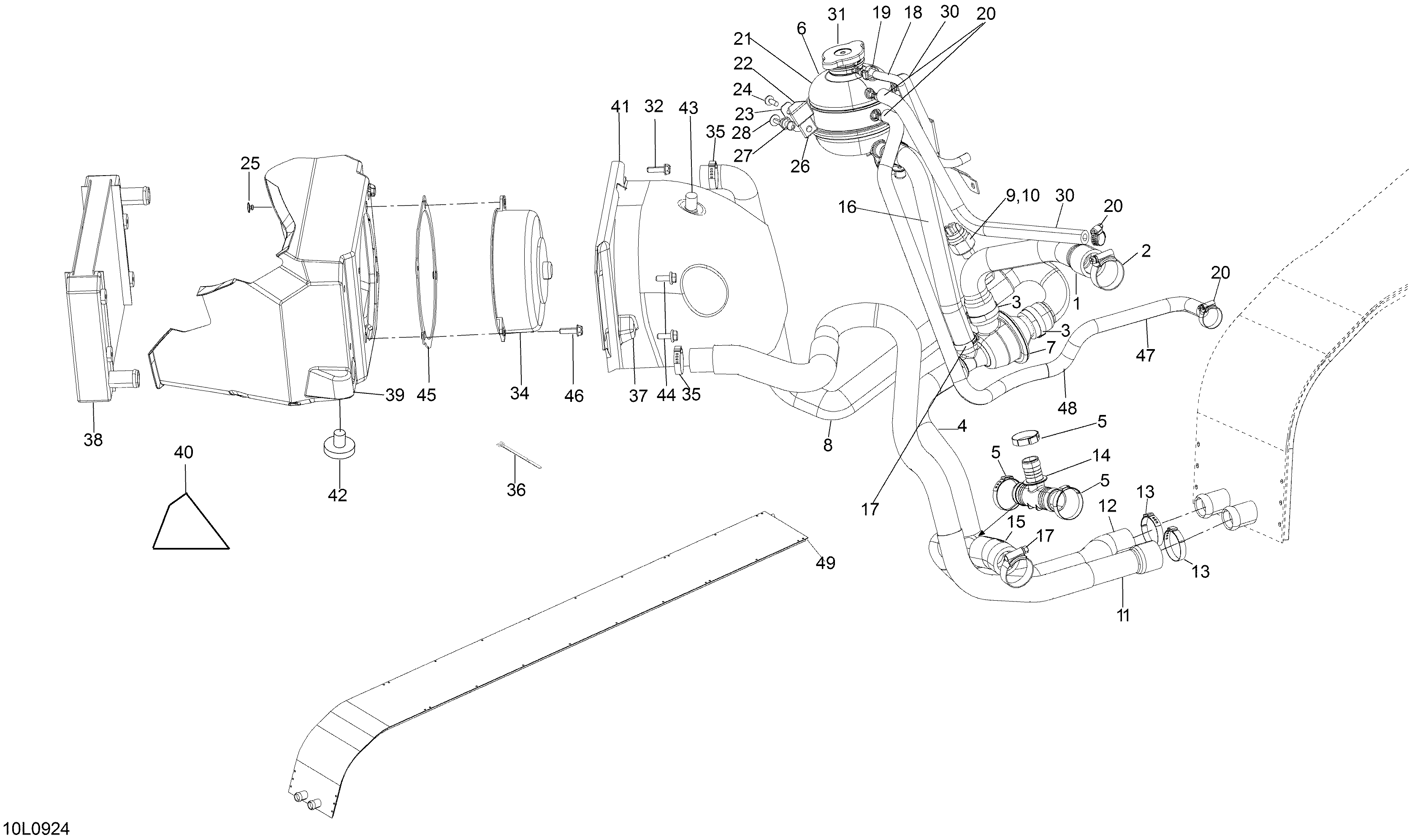

01- Cooling System для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
1509000522 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000181 Oetiker Gear ClampOetiker Gear Clamp
-
4509000523 Bybass HoseBybass Hose
-
5293650099 Oetiker Gear ClampOetiker Gear Clamp
-
7509000499 Thermostat HousingThermostat Housing
-
8509000596 Thermostat Outlet HoseThermostat Outlet Hose
-
9509000480 SwitchSwitch
-
10293800018 Loctite 59231Loctite 59231
-
11509000588 HoseHose
-
12509000589 Radiator HoseRadiator Hose
-
13509000045 Oetiker Gear ClampOetiker Gear Clamp
-
14509000372 T-FittingT-Fitting
-
15509000557 Radiator HoseRadiator Hose
-
16509000597 Filler HoseFiller Hose
-
17509000442 Gear ClampGear Clamp
-
18509000598 Bleeder HoseBleeder Hose
-
19293650170 Hose ClampHose Clamp
-
20293650053 Oetiker Gear ClampOetiker Gear Clamp
-
21509000368 Coolant TankCoolant Tank
-
22509000600 Reservoir supportReservoir support
-
23509000608 FasteningFastening
-
24732600030 ScrewScrew
-
2536005 RivetRivet
-
26509000609 Rubber supprotRubber supprot
-
27517303439 PinPin
-
28250000146 ScrewScrew
-
30415110000 HoseHose
-
31509000187 Pressure CapPressure Cap
-
32205061244 Scoket screwScoket screw
-
34509000456 FanFan
-
3527011 ClampClamp
-
36508000532 Velcro stripVelcro strip
-
37508000572 BumperBumper
-
38509000488 CoolerCooler
-
39509000489 Cooling fan shroudCooling fan shroud
-
40509000615 FoamFoam
-
41509000558 DeflectorDeflector
-
42570044700 Ruber damperRuber damper
-
43710000992 ClipClip
-
44207661244 ScrewScrew
-
45509000614 Screw plateScrew plate
-
46210262040 ScrewScrew
-
47509000601 HoseHose
-
48415080000 TubingTubing
-
49509000586 Radiator. NTC_600SDIRadiator. NTC_600SDI
