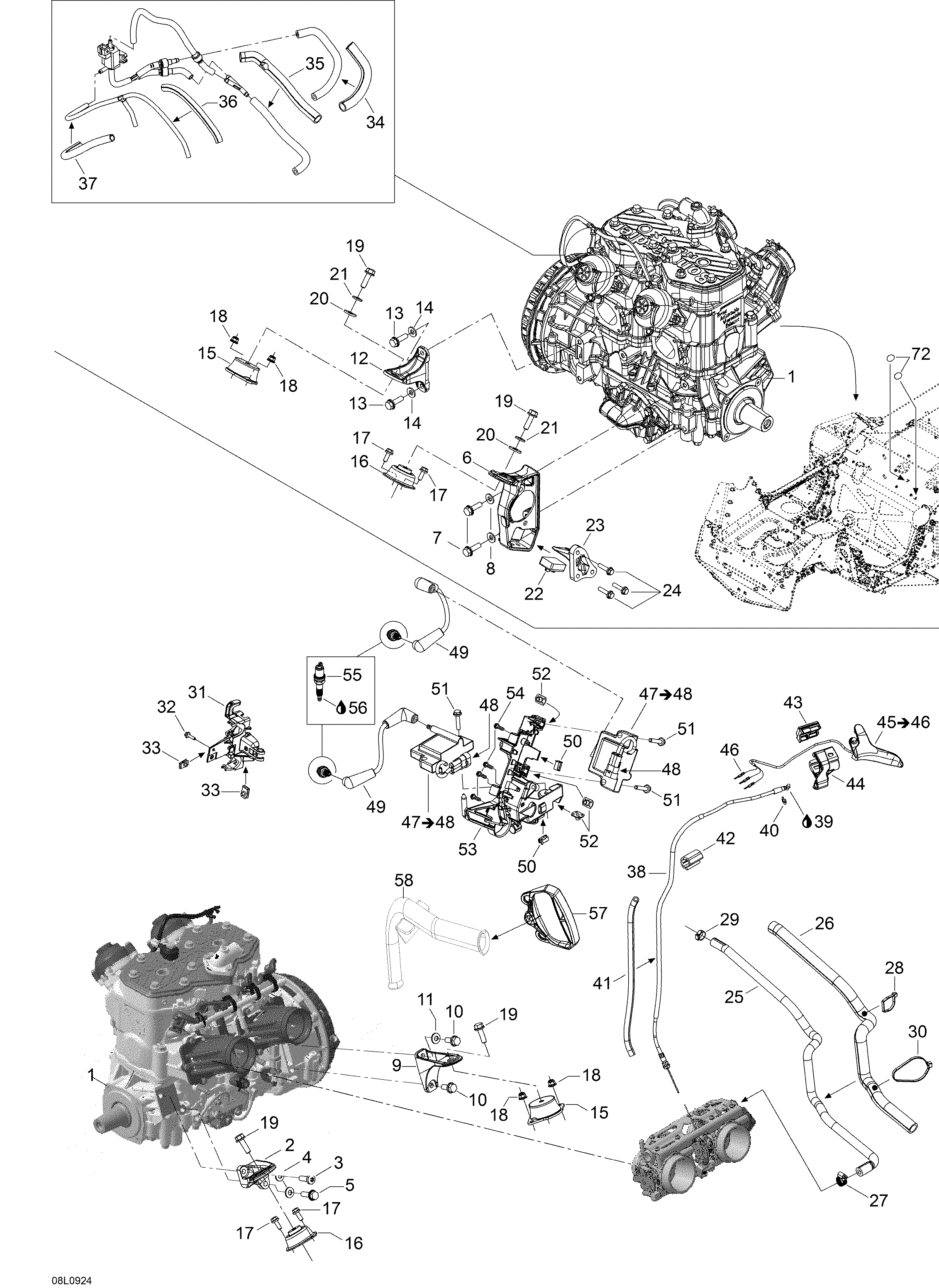

01- Engine And Engine Support для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
2512060478 Rear PTO SupportRear PTO Support
-
3250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6512060406 Front PTO SupportFront PTO Support
-
7207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
8234281474 Conical Spring Washer M8Conical Spring Washer M8
-
9512060470 Rear MAG SupportRear MAG Support
-
10207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
11234281474 Conical Spring Washer M8Conical Spring Washer M8
-
12512060469 Front MAG SupportFront MAG Support
-
13207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060457 Rubber MountRubber Mount
-
16512060387 Rubber MountRubber Mount
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19207583086 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
20503183200 Washer, YellowWasher, Yellow
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060488 StopperStopper
-
23512060489 Stopper SupportStopper Support
-
24207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
25509000601 Formed Hose Output TBFormed Hose Output TB
-
26415080000 Tubing 16 mmTubing 16 mm
-
27293650170 Hose ClampHose Clamp
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29293650053 Oetiker ClampOetiker Clamp
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31512060298 Solenoid SupportSolenoid Support
-
32207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
33250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
34409901800 Tubing 13 mmTubing 13 mm
-
35409901800 Tubing 13 mmTubing 13 mm
-
36409901700 Tubing 9 mmTubing 9 mm
-
38512060086 Throttle CableThrottle Cable
-
39293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
40414274500 CirclipCirclip
-
41515175442 Protector tubeProtector tube
-
42415079900 ProtectorProtector
-
43512060198 Upper HousingUpper Housing
-
44512060430 Lower HousingLower Housing
-
45512060468 Throttle Handle Ass'y. Includes 45 to 46Throttle Handle Ass'y. Includes 45 to 46
-
46515175232 Male TerminalMale Terminal
-
47278001546 Ignition Coil. Includes 47 to 48Ignition Coil. Includes 47 to 48
-
48710000568 HousingHousing
-
49420664302 Ignition Cable, 190 mmIgnition Cable, 190 mm
-
50710000992 ClipClip
-
51250000213 Hex. Flange ScrewHex. Flange Screw
-
52293100003 NutNut
-
53512060279 Support CoilsSupport Coils
-
54241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
55512060029 Spark PlugSpark Plug
-
56293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
57512060136 Starter GripStarter Grip
-
58512060451 TubeTube
