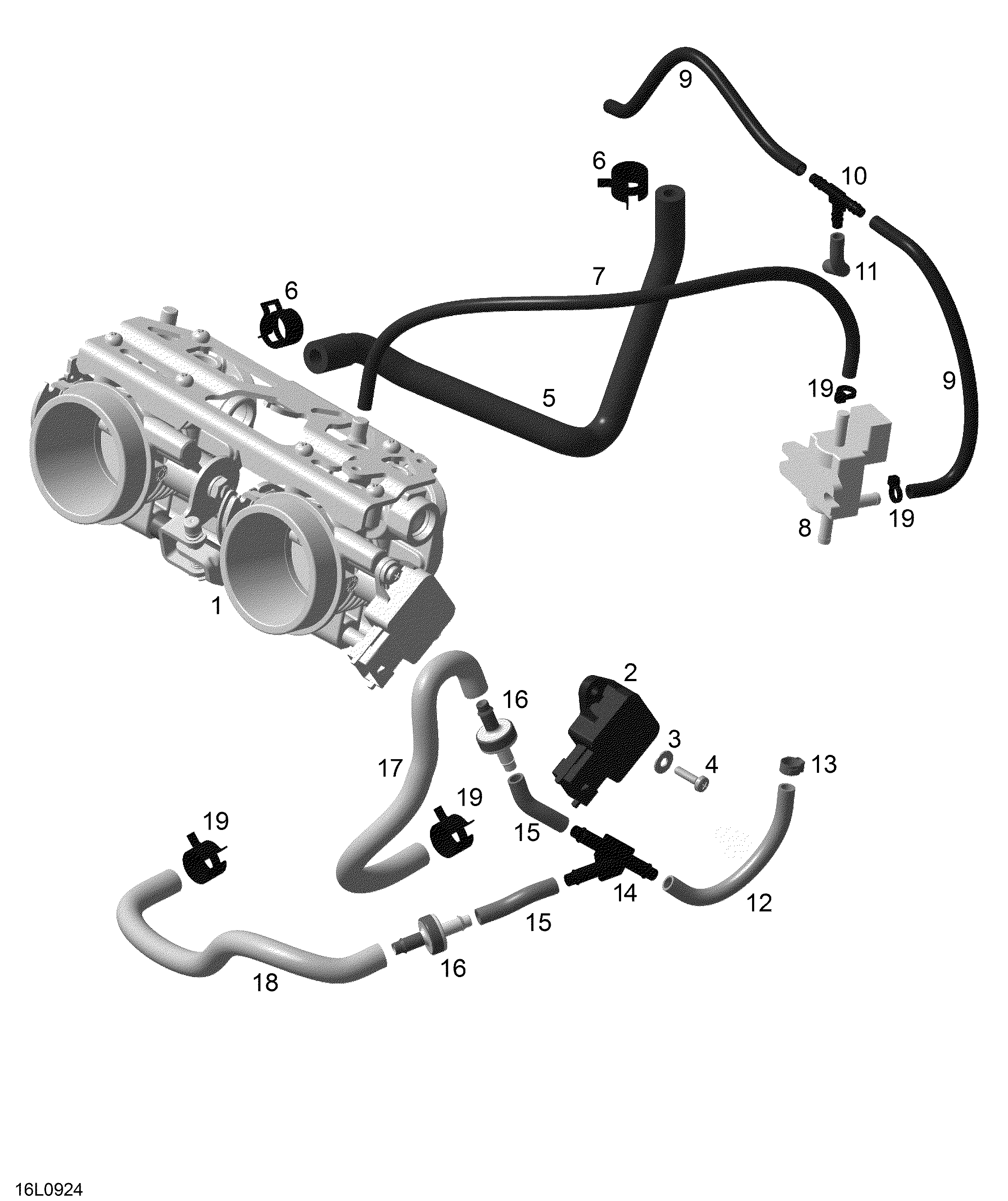

02- Throttlebody для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
1420892132 Throttle body ass'yThrottle body ass'y
-
2270000251 Throttle sensorThrottle sensor
-
3234041600 WasherWasher
-
4208641660 Screw M4 x 16Screw M4 x 16
-
5420460860 From houseFrom house
-
6420853510 ClampClamp
-
7420940011 Screw M5 x 10Screw M5 x 10
-
8270600005 Solenoid valveSolenoid valve
-
9420660571 Pressure line 180mmPressure line 180mm
-
10293710068 T-fittingT-fitting
-
11420660572 Pressure line 50mmPressure line 50mm
-
12420460852 Pressure line 50mmPressure line 50mm
-
13420853658 ClampClamp
-
14420460635 Y-nippelY-nippel
-
15420460851 Pressure line 40mmPressure line 40mm
-
16420660543 Check valveCheck valve
-
17420460782 Molded hoseMolded hose
-
18420460786 Molded hose 225 mmMolded hose 225 mm
-
19420853510 ClampClamp
-
20293750001 Tie rapTie rap
