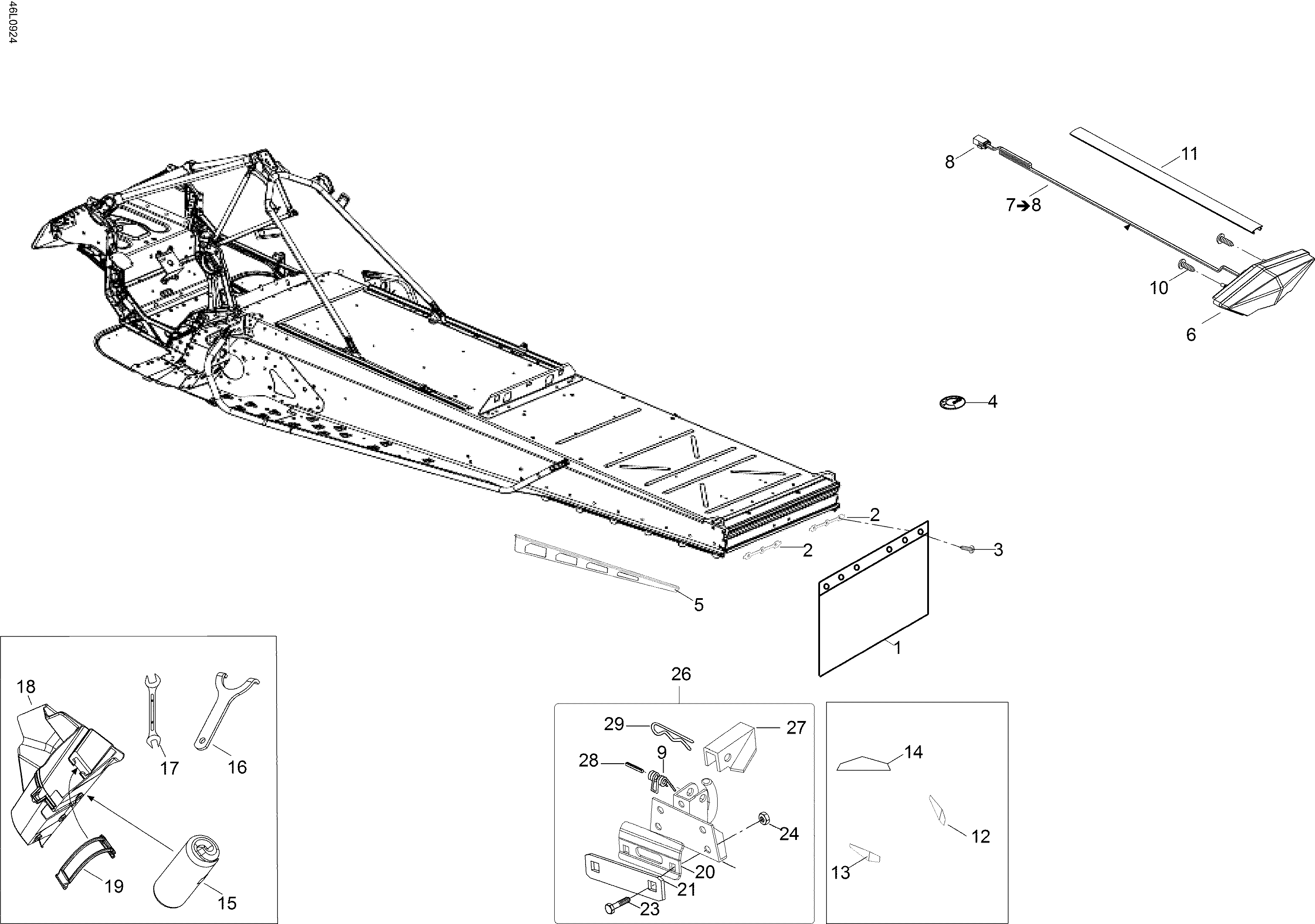

09- Utilities для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
1520000857 Snow guardSnow guard
-
2520000847 Screw PlateScrew Plate
-
3250000145 ScrewScrew
-
4219902468 BRP logo 48 mmBRP logo 48 mm
-
5520000693 Snow guard R.H.Snow guard R.H.
-
5520000694 Snow guard L.H.Snow guard L.H.
-
6520000692 Rear lightRear light
-
7515176746 Wiring HarnessWiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9545693 Retainer springRetainer spring
-
1040611 ScrewScrew
-
11520000829 TrimTrim
-
12520000843 ReflectorReflector
-
13520000844 ReflectorReflector
-
14705002423 ReflectorReflector
-
14705003412 ReflectorReflector
-
15520000841 Tool kitTool kit
-
16529035582 Adjusting wrenchAdjusting wrench
-
1734017 WrenchWrench
-
18520000720 Tool kit rackTool kit rack
-
19520000528 Fastening rubberFastening rubber
-
20520000727 Pressure platePressure plate
-
21520000728 Pressure platePressure plate
-
23207784044 ScrewScrew
-
24233281414 NutNut
-
265344156 Hitch Ass'yHitch Ass'y
-
275440767 Pin-retainerPin-retainer
-
2841012 Spring pinSpring pin
-
2941029 PinPin
