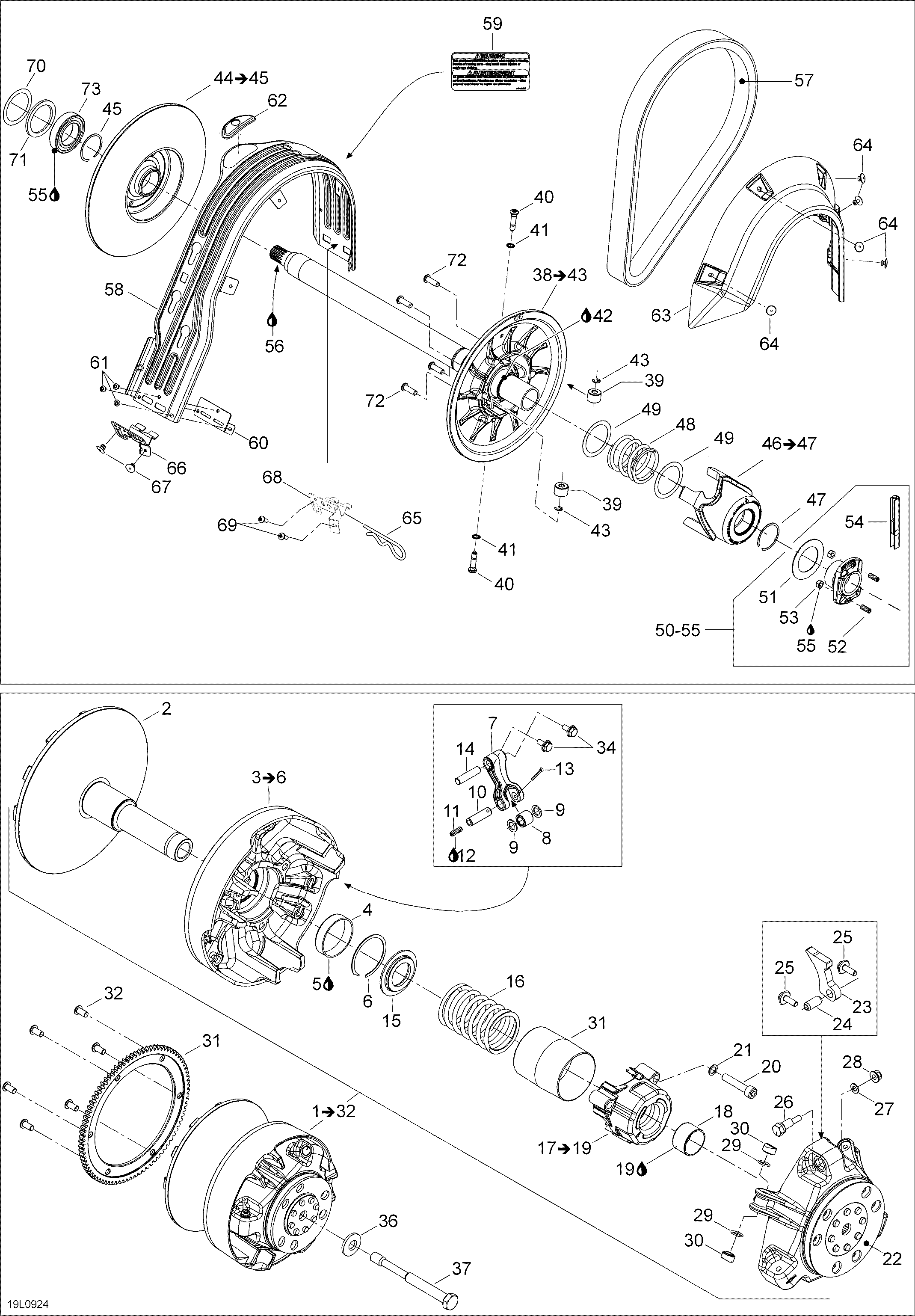

05- Drive System для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
2417222777 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 RollerRoller
-
9417004302 Stopper WasherStopper Washer
-
10417222594 Threaded Pin, M6Threaded Pin, M6
-
11206262599 Socket Set ScrewSocket Set Screw
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414993000 Spring, Yellow/RedSpring, Yellow/Red
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor Cup Ass'yGovernor Cup Ass'y
-
23417222444 Ramp 600Ramp 600
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex. Flanged Scew M6 X 18Hex. Flanged Scew M6 X 18
-
26417222955 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29732401030 O-RingO-Ring
-
30417223021 Slider ShoeSlider Shoe
-
31417223042 Ring GearRing Gear
-
32250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
33417009205 GuardGuard
-
34210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
36250200006 Spring Washer 14 mmSpring Washer 14 mm
-
37417120000 Drive Pulley BoltDrive Pulley Bolt
-
38417127100 Fixe Flange Ass'y. Includes 38 to 43Fixe Flange Ass'y. Includes 38 to 43
-
39417127016 RollerRoller
-
40417127078 StudStud
-
41250200009 Lock Washer 8 mmLock Washer 8 mm
-
42413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
43414753500 CirclipCirclip
-
44417126955 Slidding Flange Ass'y. Includes 44 to 45Slidding Flange Ass'y. Includes 44 to 45
-
45293370049 CirclipCirclip
-
46417127161 Cam Ass'y. Includes 46 to 47Cam Ass'y. Includes 46 to 47
-
47293370049 CirclipCirclip
-
48417127118 Spring, BlackSpring, Black
-
49417126322 Swivel AbutmentSwivel Abutment
-
5041529409 Adjustment Kit includes 50-54Adjustment Kit includes 50-54
-
51417127155 Washer. Includes 51 to 53Washer. Includes 51 to 53
-
52206261690 Pressure Screw M6 x 16Pressure Screw M6 x 16
-
53233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
54529035501 Spacing ToolSpacing Tool
-
55413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
56293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
57417300197 Drive BeltDrive Belt
-
58417300357 Belt GuardBelt Guard
-
59516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
60417300380 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GrommetGrommet
-
63417300356 Side ProtectorSide Protector
-
64293150103 Pop RivetPop Rivet
-
65114045200 Hair PinHair Pin
-
66417300364 Belt Guard BracketBelt Guard Bracket
-
67293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
68417300363 Belt Guard BracketBelt Guard Bracket
-
69293150163 Rivet HocklokRivet Hocklok
-
70504152958 Support WasherSupport Washer
-
71504152959 Sealing RingSealing Ring
-
72250000283 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
73504152574 Ball BearingBall Bearing
