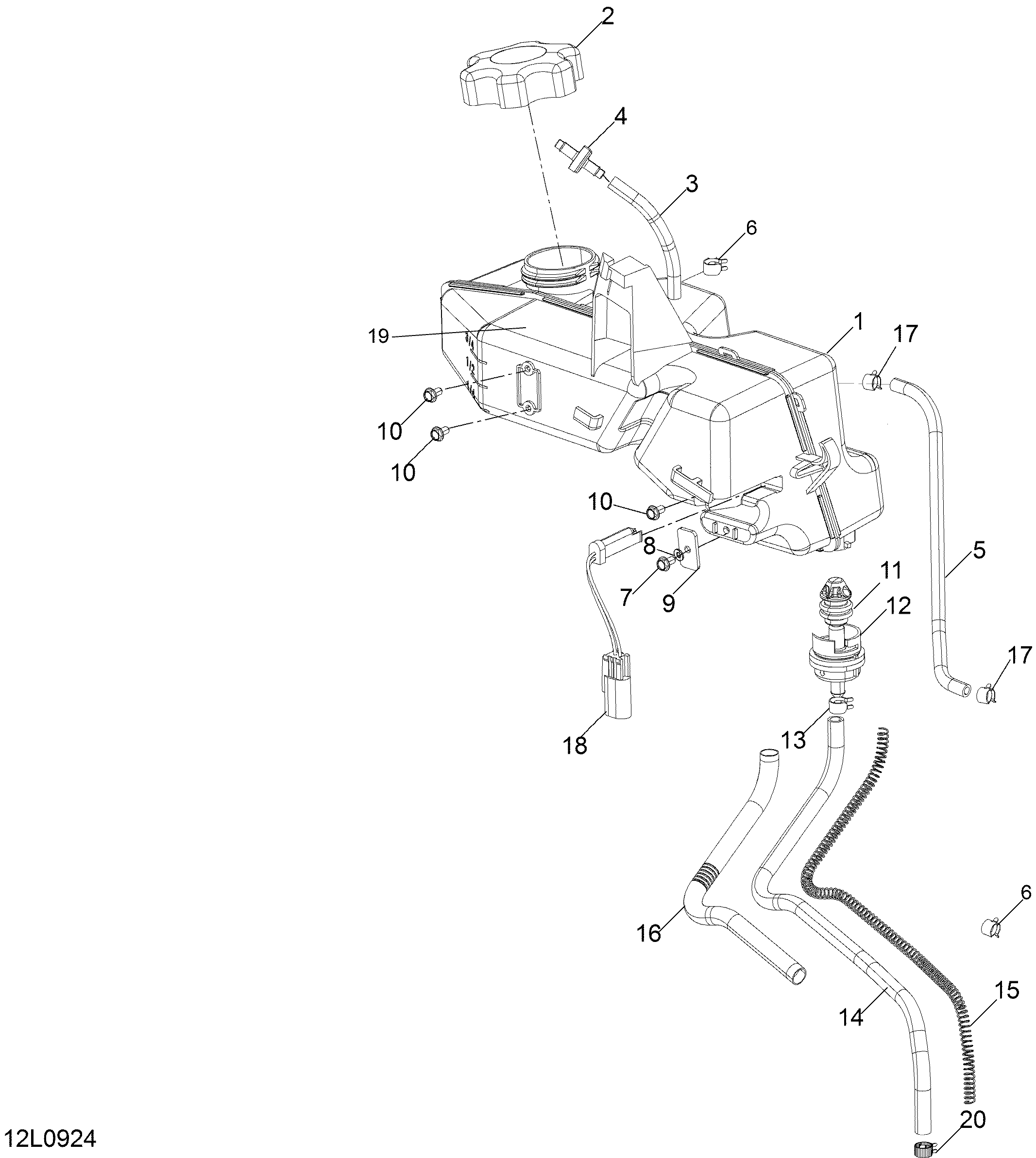

02- Oil System для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
1519000188 Oil tankOil tank
-
2519000194 CapCap
-
3415080200 HoseHose
-
4275500398 Valve checkValve check
-
5519000197 HoseHose
-
6293650184 ClampClamp
-
7250000331 ScrewScrew
-
8224061201 Washer 6mmWasher 6mm
-
9519000179 BracketBracket
-
10241151640 ScrewScrew
-
11519000217 GrommetGrommet
-
12519000195 Oil filterOil filter
-
13414415200 ClampClamp
-
14415080700 HoseHose
-
15519000196 SpringSpring
-
16415079900 TubingTubing
-
17414554800 Spring clampSpring clamp
-
18515176508 Level sensorLevel sensor
-
19516003875 Warning decalWarning decal
-
20414420700 ClampClamp
