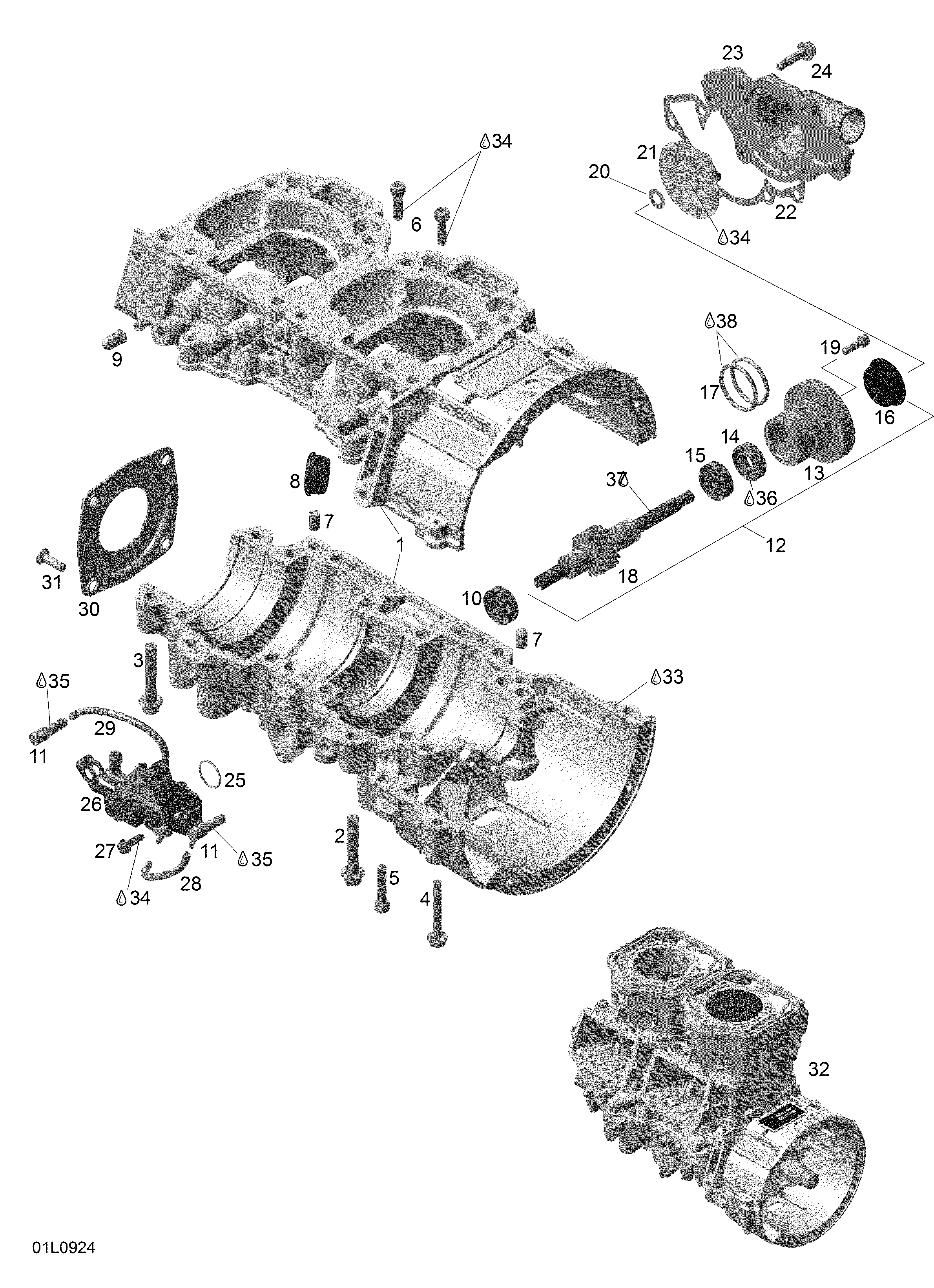

01- Crankcase для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
1420890222 Crankcase ass'y. Includes 1 to 11Crankcase ass'y. Includes 1 to 11
-
2420640836 Screw M8 x 75Screw M8 x 75
-
3420640431 Screw M8 x 45Screw M8 x 45
-
4420640311 Screw M6 x 45Screw M6 x 45
-
5205063044 Allen screw M6 x 30Allen screw M6 x 30
-
6420840401 Allen screw M6 x 22Allen screw M6 x 22
-
7420632010 PinPin
-
8420860965 Cable grommetCable grommet
-
9420960770 Closure capClosure cap
-
10420232100 Ball bearingBall bearing
-
11420956510 Checkvalve assyCheckvalve assy
-
12420837421 Waterpump/oilpump shaft. Includes 12 to 18Waterpump/oilpump shaft. Includes 12 to 18
-
14420230196 Oil sealOil seal
-
15420232100 Ball bearingBall bearing
-
16420650370 Rotary sealRotary seal
-
17420950890 O-ringO-ring
-
19420840511 Allen screw M5 x 16Allen screw M5 x 16
-
20420227945 Thrust washerThrust washer
-
21420222505 ImpellerImpeller
-
22420931810 GasketGasket
-
23420922630 Pump housingPump housing
-
24420240031 Screw M6 x 25Screw M6 x 25
-
25293300041 O-ringO-ring
-
26420888780 Oil pumpOil pump
-
27420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
28414413800 Oil line, mag side 70 mmOil line, mag side 70 mm
-
29414413800 Oil line P.T.O side 115 mmOil line P.T.O side 115 mm
-
30420812420 Oil seal coverOil seal cover
-
31420941436 Screw M6 x 20Screw M6 x 20
-
33293800081 Loctite 5910, 50mlLoctite 5910, 50ml
-
32300059372 Short block engineShort block engine
-
34293800060 Loctite 243, 10mlLoctite 243, 10ml
-
35413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
36420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
37413803300 Transmission oilTransmission oil
-
38413707000 Injection oilInjection oil
