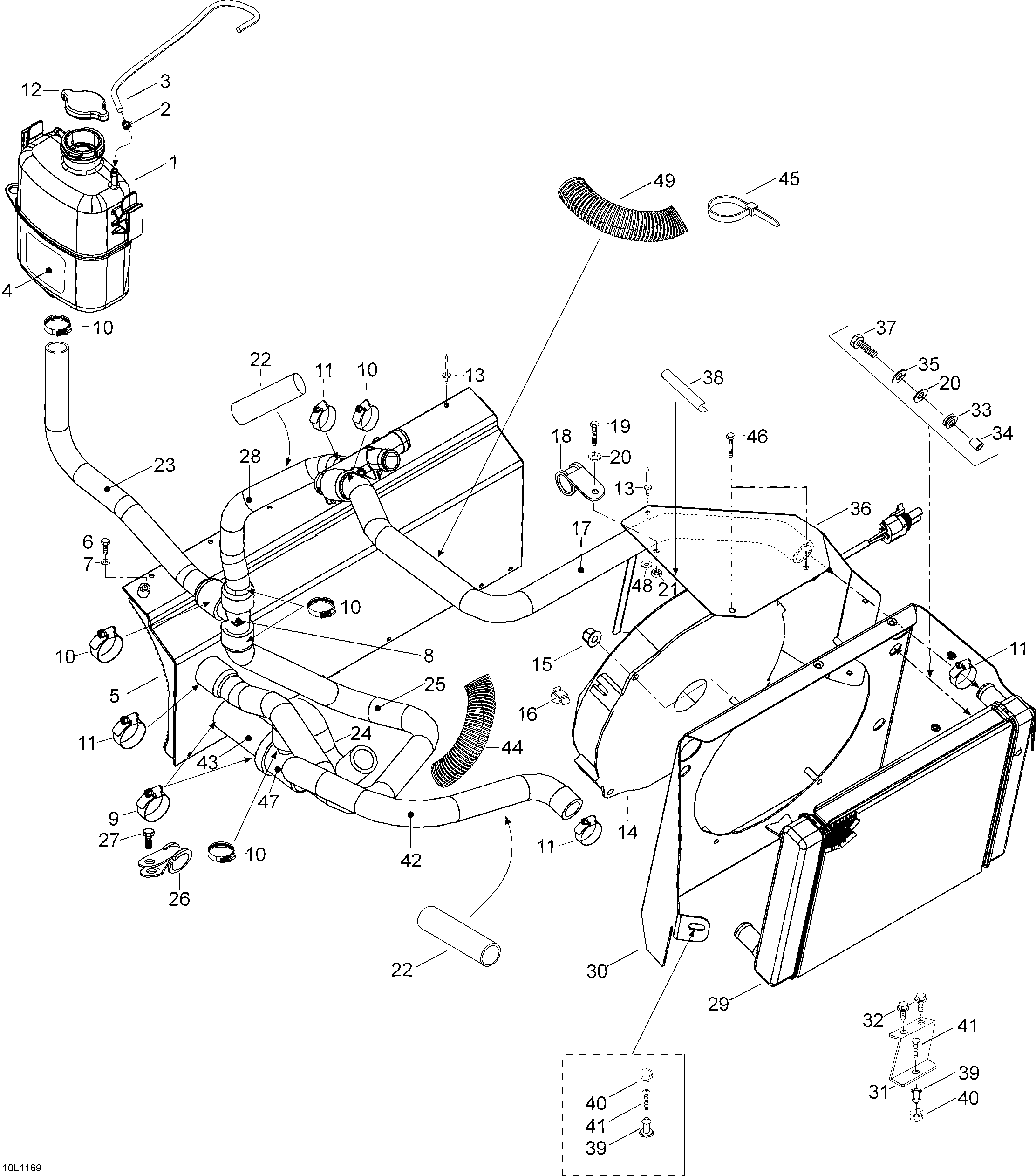

01- Cooling System для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
1276000086 Coolant TankCoolant Tank
-
2605627003 ClampClamp
-
339038 HoseHose
-
444110 Al-TejpAl-Tejp
-
5605253699 RadiatorRadiator
-
640114 Screw M6 x 10Screw M6 x 10
-
8509000219 T-FittingT-Fitting
-
9408800400 Tridon Gear ClampTridon Gear Clamp
-
10605627002 ClampClamp
-
11605627004 ClampClamp
-
12509000180 Pressure CapPressure Cap
-
1336108 RivetRivet
-
14605155907 FanFan
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16414227300 ClipClip
-
17605253694 HoseHose
-
1827039 ClampClamp
-
1940029 Screw M6 x 16Screw M6 x 16
-
20234062410 Flat Washer 6 mmFlat Washer 6 mm
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2239062 Al-TubingAl-Tubing
-
23605253689 HoseHose
-
24605354452 HoseHose
-
25605354451 HoseHose
-
2627039 ClampClamp
-
2740322 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
28605253690 HoseHose
-
29605353238 Radiator 250Radiator 250
-
30605254916 Support PlateSupport Plate
-
31605354917 Fastening plateFastening plate
-
3240030 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
33293720053 GrommetGrommet
-
34605453745 BushingBushing
-
3520052 Lock washer A6Lock washer A6
-
36605254458 Deflector PlateDeflector Plate
-
37210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
3828413 Sealing listSealing list
-
39517303439 KnobKnob
-
40517302841 GrommetGrommet
-
41243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
42605253693 HoseHose
-
43605354450 HoseHose
-
4427127 TubingTubing
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4640030 Screw M6 x 20Screw M6 x 20
-
47605353701 ThermostatThermostat
-
4820002 Washer A5,3Washer A5,3
-
4928036 TubingTubing
