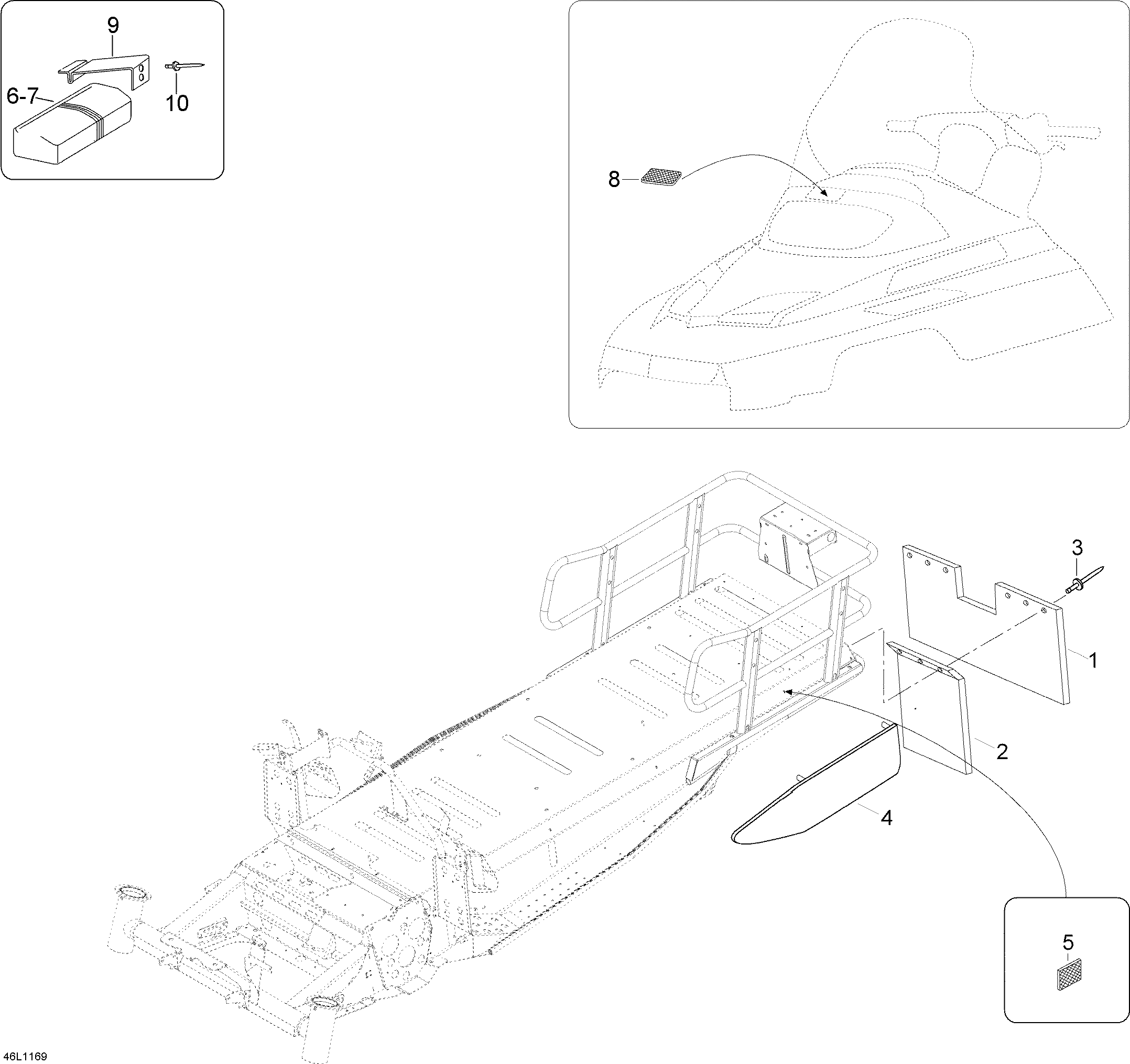

09- Utilities для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
1605354719 SnowquardSnowquard
-
2605355316 SupportSupport
-
336037 RivetRivet
-
4605354746 LH Side Snow GuardLH Side Snow Guard
-
4605354747 RH Side Snow GuardRH Side Snow Guard
-
521121 Reflector (Yellow)Reflector (Yellow)
-
6605352219 Tool Set. Includes 5 to 7Tool Set. Includes 5 to 7
-
7605356331 Tools box ass?yTools box ass?y
-
821118 Reflector (Bright)Reflector (Bright)
-
95346728 Toolkit support springToolkit support spring
-
1036108 RivetRivet
