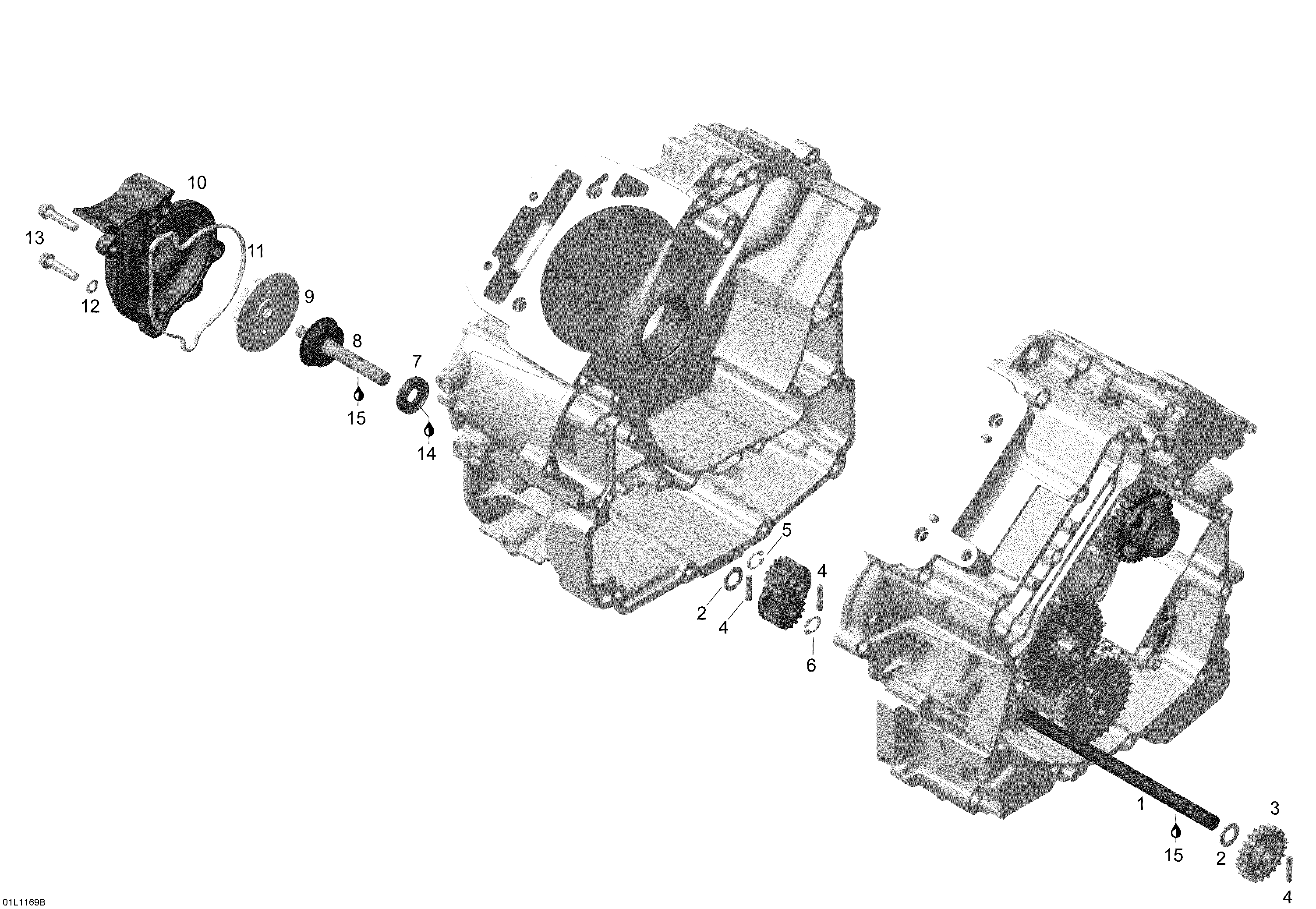

01- Waterpump для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6504152282 CirclipCirclip
-
8420620175 Water Pump Shaft Ass'yWater Pump Shaft Ass'y
-
9420222505 Water ImpellerWater Impeller
-
10420222780 Water Pump HousingWater Pump Housing
-
11420651190 GasketGasket
-
12420230415 Seal WasherSeal Washer
-
13420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
14293550030 Grease, Super LubeGrease, Super Lube
-
15619590114 Oil, 0 W 40, 12x1 literOil, 0 W 40, 12x1 liter
