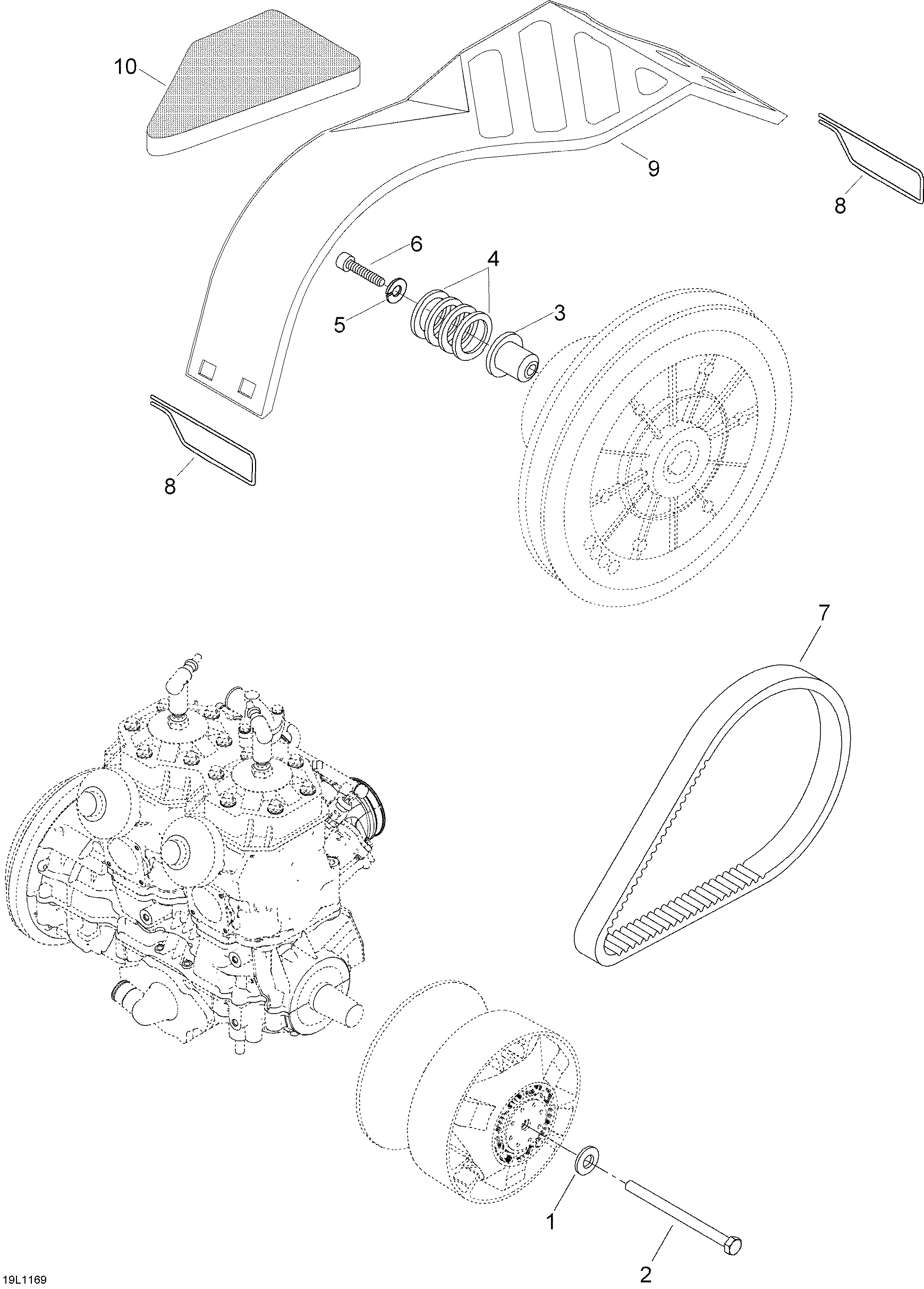

05- Pulley System для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
120110 Lock washer M14Lock washer M14
-
2417300285 Drive Pulley BoltDrive Pulley Bolt
-
35443765 SleeveSleeve
-
43125351 ShimShim
-
520014 Lock washer A8Lock washer A8
-
640290 Socket head screw M8 x 55Socket head screw M8 x 55
-
7605348425 Drive BeltDrive Belt
-
85442726 PinPin
-
9605149860 Belt GuardBelt Guard
-
10605250741 Isolant FoamIsolant Foam
