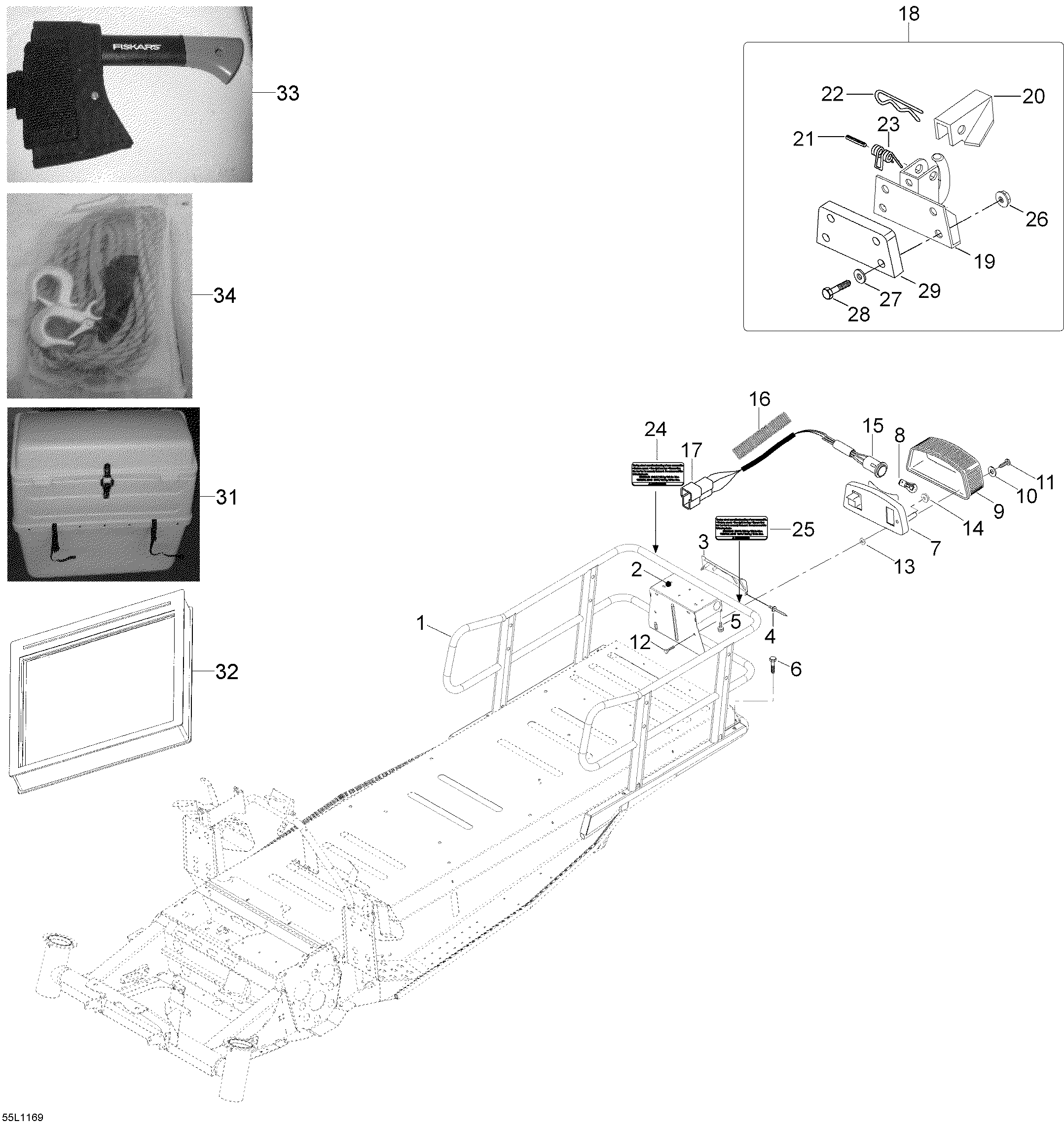

09- Rack для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
1605356205 Rack, WhiteRack, White
-
2605256018 Bracket, tail lampBracket, tail lamp
-
3605356019 PlatePlate
-
436010 RivetRivet
-
540332 Socket head screw M6 x 16Socket head screw M6 x 16
-
640316 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
7515175397 Lamp HousingLamp Housing
-
8520000758 BulbBulb
-
9414513700 LensLens
-
10414516400 WasherWasher
-
11209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
1240064 Lock screw M6 x 40Lock screw M6 x 40
-
1320077 Washer A8,4Washer A8,4
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15605354685 Harness ass'y, rear lightHarness ass'y, rear light
-
16409901800 Tubing 13 mmTubing 13 mm
-
1742269 Male connector housingMale connector housing
-
185344156 Hitch ass'y. Includes 18 to 23Hitch ass'y. Includes 18 to 23
-
205440767 LockLock
-
2141012 PinPin
-
2241029 Hair pinHair pin
-
23545693 SpringSpring
-
24605448799 Pulling Bar DecalPulling Bar Decal
-
255447929 Instruction labelInstruction label
-
26232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
27234081410 Flat Washer 8 mmFlat Washer 8 mm
-
2840009 Hex. screw M8 x 50Hex. screw M8 x 50
-
29605351510 SpacerSpacer
-
31605155493 Cargo Box Assy, whiteCargo Box Assy, white
-
32605354950 Map caseMap case
-
3321154 AxeAxe
-
3421156 RopeRope
