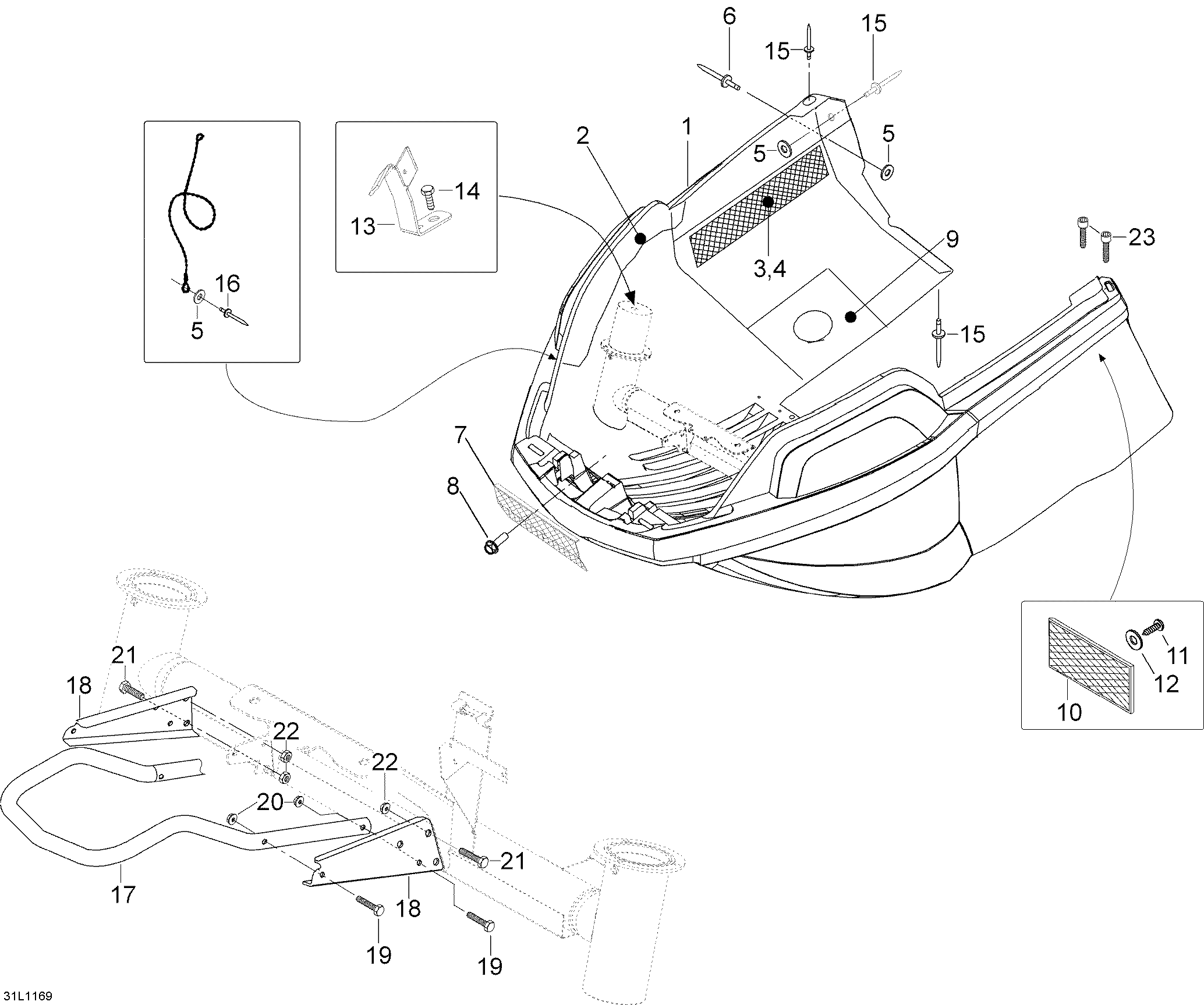

09- Bottom Pan для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
1605254970 Bottom Pan Ass'y. Includes 1 to 8Bottom Pan Ass'y. Includes 1 to 8
-
2619690002 Isolation SheetIsolation Sheet
-
3605354968 RH Side GrillRH Side Grill
-
4605354969 LH Side GrillLH Side Grill
-
520008 Washer 5,3 mmWasher 5,3 mm
-
636009 RivetRivet
-
7605255513 Front GrillFront Grill
-
840847 Wronic-screw 4,2 x 13Wronic-screw 4,2 x 13
-
9605354031 Reflective SheetReflective Sheet
-
10414510200 Reflector, AmberReflector, Amber
-
1140063 Screw M5 x 12Screw M5 x 12
-
1220018 Serrated lock washer A5,3Serrated lock washer A5,3
-
13605354709 LH BracketLH Bracket
-
13605354710 RH BracketRH Bracket
-
1440401 Hex. screw M6 x 10Hex. screw M6 x 10
-
1536037 RivetRivet
-
1636087 RivetRivet
-
17605155732 BumperBumper
-
18605355113 LH Bumper PlateLH Bumper Plate
-
18605355114 RH Bumper PlateRH Bumper Plate
-
1940002 Hex. screw M6 x 40Hex. screw M6 x 40
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2140036 Hex. screw M8 x 20Hex. screw M8 x 20
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2340332 Allen Screw M6 x 16Allen Screw M6 x 16
