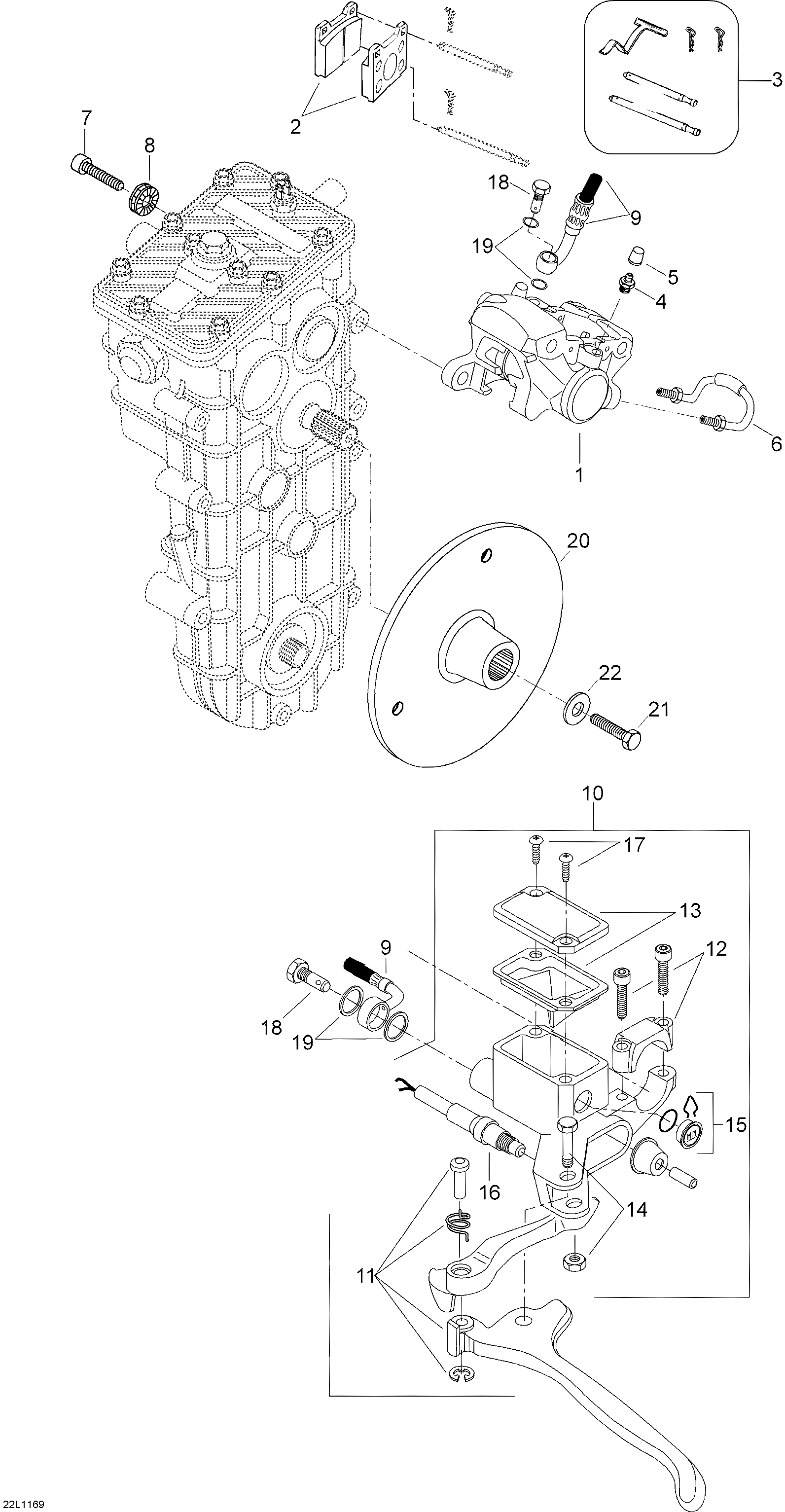

06- Hydraulic Brake для BRP Lynx YETI Pro Army V-800 - 2011
-
№АртикулНазвание
-
1507032448 Brake Caliper Ass'y. Includes 1 to 6Brake Caliper Ass'y. Includes 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3415128865 Kit, Pins, Retainers, SpringKit, Pins, Retainers, Spring
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
740277 Socket head screw M10 x 65Socket head screw M10 x 65
-
820068 Lock washer D10Lock washer D10
-
9507032237 HoseHose
-
10507032512 Master Cylinder. Includes 10 to 17Master Cylinder. Includes 10 to 17
-
11507032268 Brake Short Lever Ass’YBrake Short Lever Ass’Y
-
12507032477 ClampClamp
-
13415029900 CapCap
-
14415030000 Pin Ass'yPin Ass'y
-
16507032366 MicroswitchMicroswitch
-
17216141260 Screw M4 X 12Screw M4 X 12
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20605353250 Brake DiscBrake Disc
-
2140336 Hex. screw M8 x 20Hex. screw M8 x 20
-
22546336 WasherWasher
