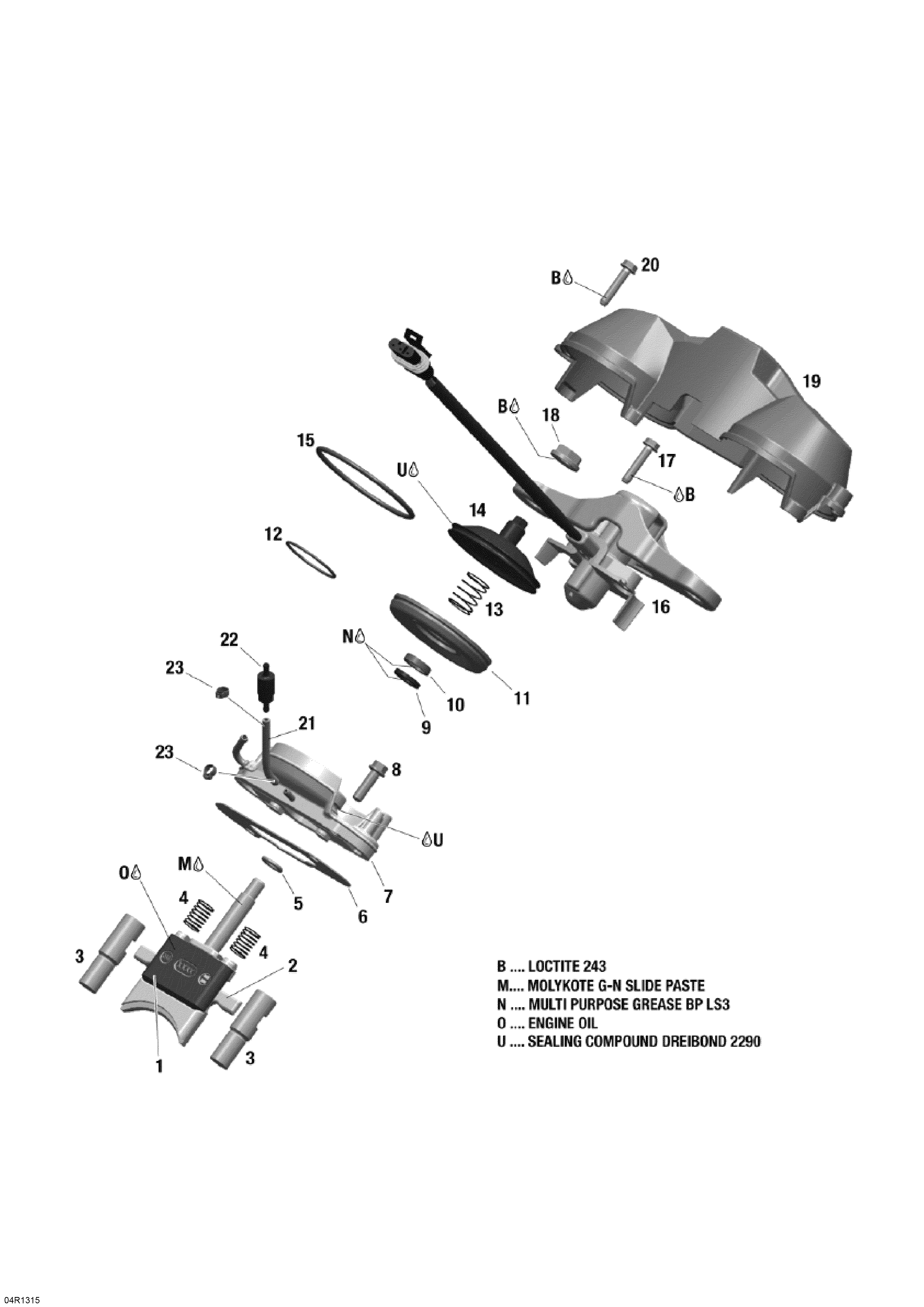

01- 3D Rave для BRP Lynx BoonDocker 600 E-TEC - 2013

№

Артикул

Название
1

420854980 Exhaust Valve, Upper

Exhaust Valve, Upper

22 930 ₽
2

420854974 Exhaust Valve, Lower

Exhaust Valve, Lower

22 990 ₽
3

420854990 Exhaust Valve

Exhaust Valve

10 220 ₽
4

420238556 Spring

Spring

690 ₽
5

420931765 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

360 ₽
6

420430032 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

9 170 ₽
7

420854888 Valve Housing

Valve Housing

33 150 ₽
8

420440207 Flanged Torx Screw M6 x 20. Tightening Torque 8-10 Nm

Flanged Torx Screw M6 x 20. Tightening Torque 8-10 Nm

1 120 ₽
9

420431380 Gasket Ring. Included In Gasket Kit

Gasket Ring. Included In Gasket Kit

2 770 ₽
10

420950730 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

660 ₽
11

420260725 Bellows

Bellows

18 540 ₽
12

420838255 Hose Spring

Hose Spring

2 610 ₽
13

420238557 Spring

Spring

1 740 ₽
14

420854442 Valve Cover

Valve Cover

5 090 ₽
15

420939285 Hose Spring

Hose Spring

510 ₽
16

420854088 Position Sensor With Valve Bar

Position Sensor With Valve Bar

0 ₽
17

420241270 Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

530 ₽
18

420942190 Nut M12 x 1.5. Tightening Torque 6-8 Nm

Nut M12 x 1.5. Tightening Torque 6-8 Nm

4 170 ₽
19

420910820 Rave Cover

Rave Cover

970 ₽
20

420241270 Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

530 ₽
21

414413800 Oil Line

Oil Line

300 ₽
22

404160200 Check Valve Ass’y

Check Valve Ass’y

0 ₽
23

420851508 Clamp

Clamp

1 910 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
U

420297906 Sealing Compound, 30ml

Sealing Compound, 30ml

3 950 ₽
