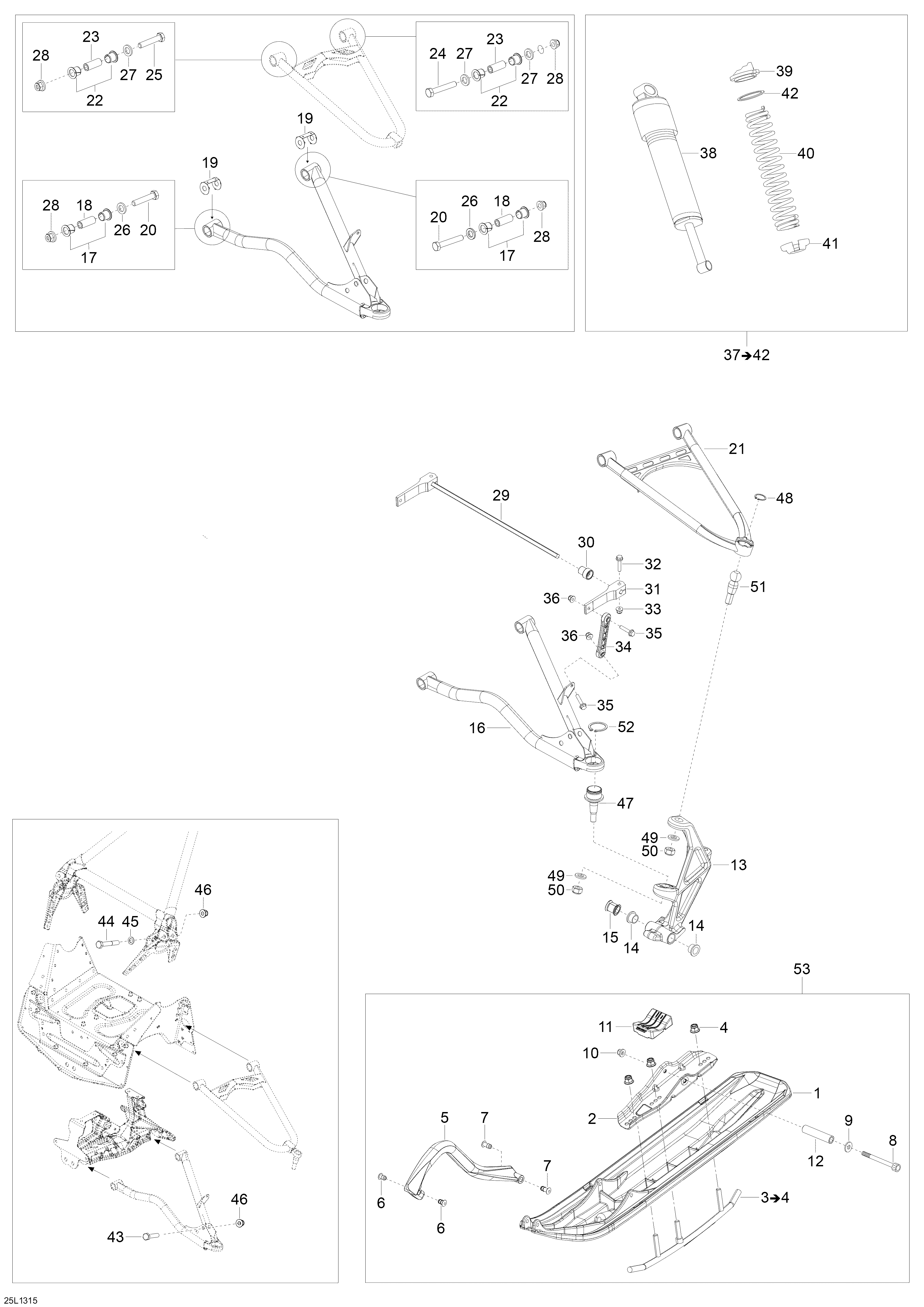

07- Front Suspension And Ski для BRP Lynx BoonDocker 600 E-TEC - 2013
-
№АртикулНазвание
-
1505073154 Blade Ski (Black)Blade Ski (Black)
-
2505073240 Ski BridgeSki Bridge
-
3605349378 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5505072976 Handle (Black)Handle (Black)
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket Screw M10 x 100Socket Screw M10 x 100
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505073309 Rubber DamperRubber Damper
-
12506133300 SpacerSpacer
-
13505072959 Ski Leg LHSki Leg LH
-
13505072960 Ski Leg RHSki Leg RH
-
14505072690 BushingBushing
-
15505071999 SpacerSpacer
-
16505073225 RH Lower ArmRH Lower Arm
-
16505073226 LH Lower ArmLH Lower Arm
-
17503191766 CushionCushion
-
18505072401 Aluminum BushingAluminum Bushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505073013 Upper Arm LHUpper Arm LH
-
21505073014 Upper Arm RHUpper Arm RH
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
25250000289 Screw Hex. M10 x 50Screw Hex. M10 x 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505073236 Front ShockFront Shock
-
39505070150 Adjuster CamAdjuster Cam
-
40505072792 SpringSpring
-
41706200881 Spring StopperSpring Stopper
-
42503191872 Spring GuideSpring Guide
-
43207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
44207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
45503189564 WasherWasher
-
46233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47505072682 Ball JointBall Joint
-
48293370070 CirclipCirclip
-
49234021410 Flat WasherFlat Washer
-
50250100089 Nut M12Nut M12
-
51505072913 Ball JointBall Joint
-
52293370035 CirclipCirclip
-
53860200884 Blade Ski Kit (Black). Includes 1 To 11Blade Ski Kit (Black). Includes 1 To 11
