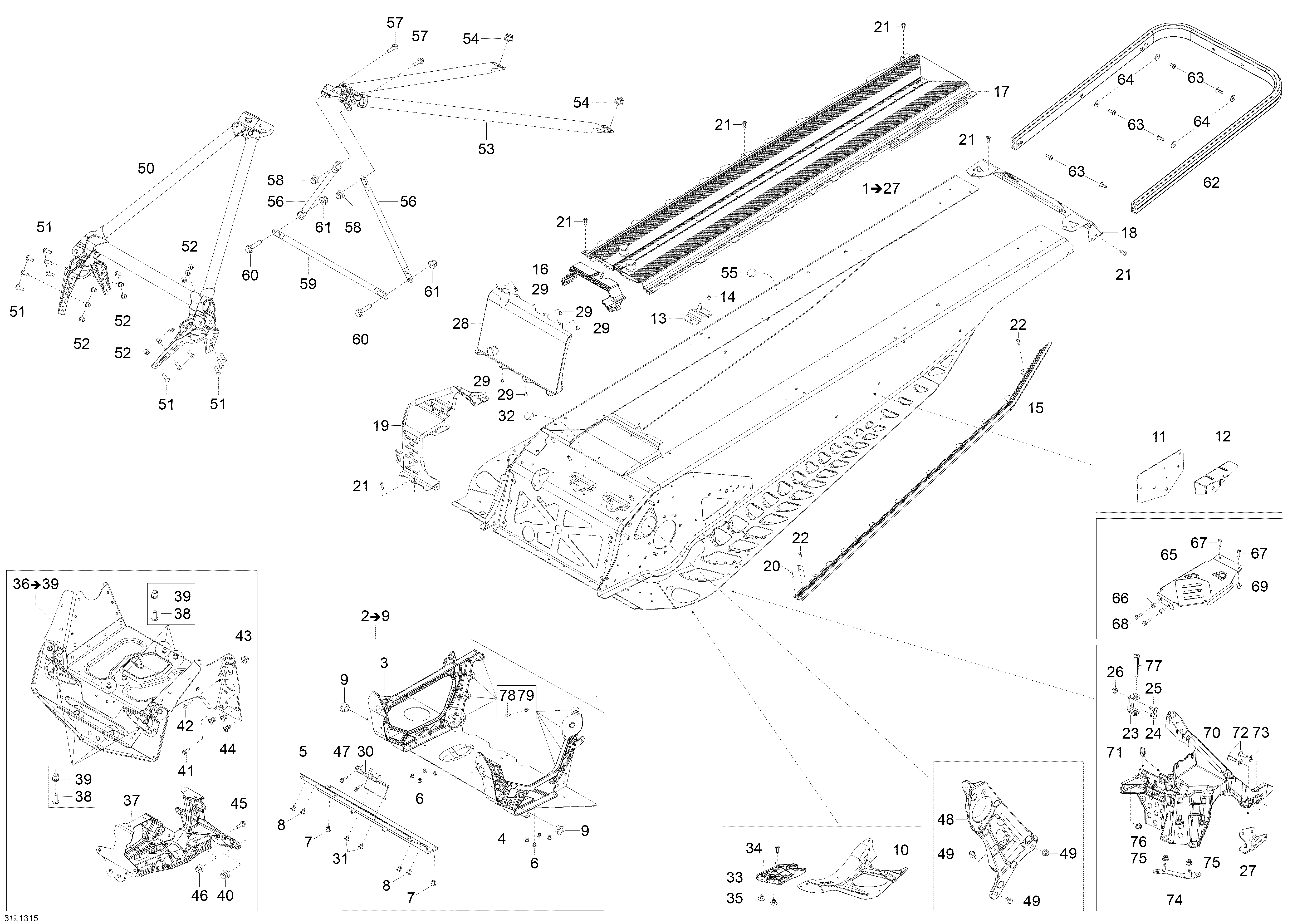

09- Frame для BRP Lynx BoonDocker 600 E-TEC - 2013
-
№АртикулНазвание
-
1518327278 Frame Ass?y. Includes 1 To 27Frame Ass?y. Includes 1 To 27
-
2518326077 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 Member RHMember RH
-
4518326796 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505073317 CushionCushion
-
10518324874 Reinforcement RHReinforcement RH
-
10518324875 Reinforcement LHReinforcement LH
-
11518327305 Rear Arm SupportRear Arm Support
-
12518327297 Angle SupportAngle Support
-
13518326421 Rear Base RHRear Base RH
-
13518326443 Rear Base LHRear Base LH
-
14293150119 RivetRivet
-
15518327068 Roller LHRoller LH
-
15518327069 Roller RHRoller RH
-
16518326656 SealSeal
-
17518326728 Rear RadiatorRear Radiator
-
18518326362 Rear CapRear Cap
-
19518326216 Stirrup RHStirrup RH
-
20390402300 Pop Rivet 3/16Pop Rivet 3/16
-
21390909200 RivetRivet
-
22390909100 RivetRivet
-
23518326961 AttachAttach
-
24293150147 RivetRivet
-
25250000534 Torx Truss M6 x 16Torx Truss M6 x 16
-
26233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
27518326960 SupportSupport
-
28518326485 Front RadiatorFront Radiator
-
29390909200 RivetRivet
-
30518325943 MAG SupportMAG Support
-
31293150119 RivetRivet
-
32518325560 Adhesive PatchAdhesive Patch
-
33518325782 Deflector RHDeflector RH
-
33518325783 Deflector LHDeflector LH
-
34207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
35293150104 Pop Rivet 3/16Pop Rivet 3/16
-
36518326210 Cross Member. Includes 36 To 39Cross Member. Includes 36 To 39
-
37518325925 SupportSupport
-
38207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
41210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
42207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
43233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
44293150179 RivetRivet
-
45207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
48518327460 Pulley SupportPulley Support
-
49233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
50518327565 Front MemberFront Member
-
51207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
52233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
53518327237 Rear MemberRear Member
-
54233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
55518325560 Adhesive PatchAdhesive Patch
-
56518325114 SupportSupport
-
57207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
58233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
59518325115 Upper ColumnUpper Column
-
60250000522 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
61233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
62518326611 Rear BumperRear Bumper
-
63250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
64224061201 Flat WasherFlat Washer
-
65518327128 Footrest LH, BlackFootrest LH, Black
-
65518327089 Footrest RH, BlackFootrest RH, Black
-
66605636003 Clinch Nut M6Clinch Nut M6
-
67250000589 Hex. Cap Screw M6 x 12Hex. Cap Screw M6 x 12
-
68207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
69232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
70518326820 Stirrup LHStirrup LH
-
71250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
72250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
73250200039 Flat WasherFlat Washer
-
74518326986 AttachAttach
-
75233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
76233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
77250000535 Torx Truss M8 x 55Torx Truss M8 x 55
-
78207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79233261414 Elastic Flange Nut M6Elastic Flange Nut M6
