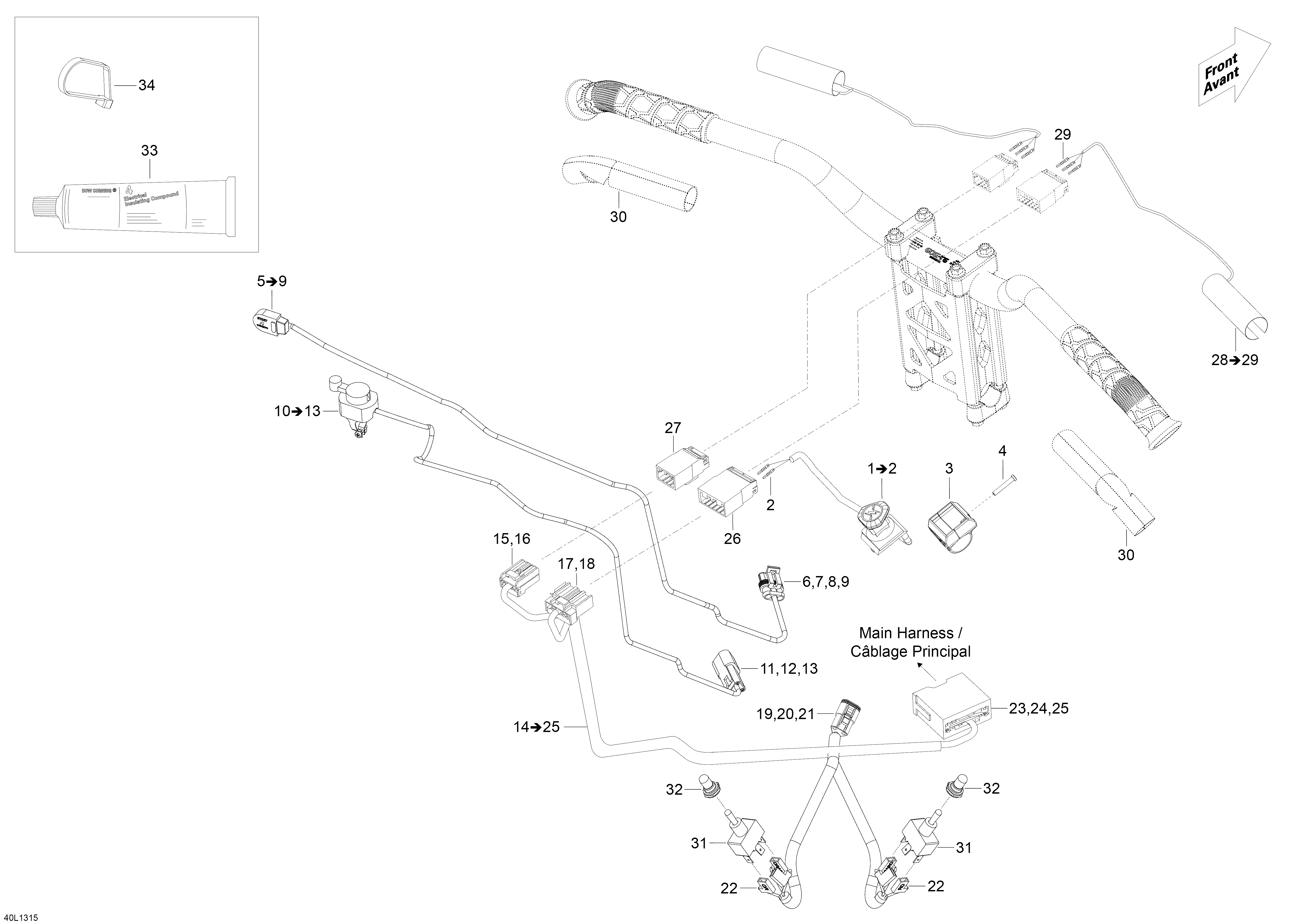

10- Steering Wiring Harness для BRP Lynx BoonDocker 600 E-TEC - 2013
-
№АртикулНазвание
-
1515177362 Kill Switch. Includes 1 To 2Kill Switch. Includes 1 To 2
-
2515175232 Male TerminalMale Terminal
-
3515176825 Kill Switch SupportKill Switch Support
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176987 Switch. Includes 5 To 9Switch. Includes 5 To 9
-
6409209600 HousingHousing
-
7278001014 Female TerminalFemale Terminal
-
8278001013 SealSeal
-
9409013700 PlugPlug
-
10515177433 Dimmer Switch. Includes 10 To 13Dimmer Switch. Includes 10 To 13
-
11515175666 HousingHousing
-
12278000631 Male TerminalMale Terminal
-
13409207600 LockLock
-
14515177083 Wiring Harness Ass'y. Includes 14 To 25Wiring Harness Ass'y. Includes 14 To 25
-
15515175543 HousingHousing
-
16515175231 Female TerminalFemale Terminal
-
17515175819 HousingHousing
-
18515175231 Female TerminalFemale Terminal
-
19409207400 HousingHousing
-
20278000632 Female TerminalFemale Terminal
-
21409207200 LockLock
-
22409010400 HousingHousing
-
23515175351 HousingHousing
-
24515175232 Male TerminalMale Terminal
-
25515175273 Male TerminalMale Terminal
-
26515175817 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
27515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
28506152602 Heating Element. Includes 28 To 29Heating Element. Includes 28 To 29
-
29515175232 Male TerminalMale Terminal
-
30506152540 IsolantIsolant
-
31410107300 Switch GripSwitch Grip
-
32515175281 Switch CoverSwitch Cover
-
33619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
34414115200 Tie Rap 180mmTie Rap 180mm
