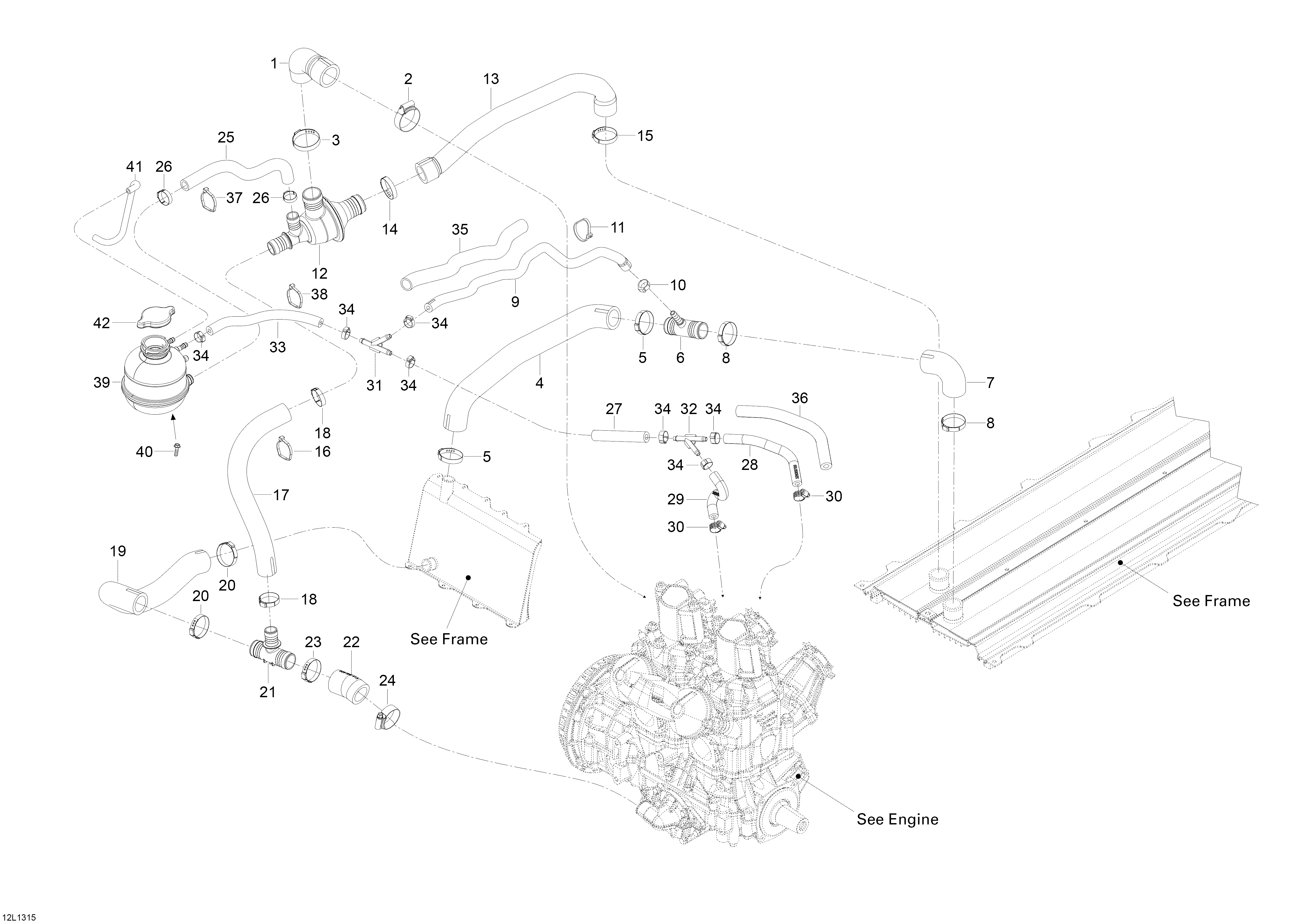

01- Cooling System для BRP Lynx BoonDocker 600 E-TEC - 2013
-
№АртикулНазвание
-
1509000678 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000529 Crimp ClampCrimp Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000443 Gear ClampGear Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000443 Gear ClampGear Clamp
-
9509000502 Breather HoseBreather Hose
-
10293650047 Crimp ClampCrimp Clamp
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12509000499 Thermostat HousingThermostat Housing
-
13509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
14509000529 Crimp ClampCrimp Clamp
-
15509000443 Gear ClampGear Clamp
-
16414115200 Tie Rap 180 mmTie Rap 180 mm
-
17509000672 Bypass HoseBypass Hose
-
18293650099 Gear ClampGear Clamp
-
19509000673 Radiator HoseRadiator Hose
-
20509000443 Gear ClampGear Clamp
-
21509000372 T-FittingT-Fitting
-
22509000675 Radiator HoseRadiator Hose
-
23509000181 Crimp ClampCrimp Clamp
-
24509000443 Gear ClampGear Clamp
-
25509000676 Filling HoseFilling Hose
-
26509000442 Gear ClampGear Clamp
-
27415129508 HoseHose
-
28509000769 HoseHose
-
29509000768 HoseHose
-
30293650170 Tridon Gear ClampTridon Gear Clamp
-
31293710140 Y-ConnectorY-Connector
-
32293710059 Y-ConnectorY-Connector
-
33415129508 HoseHose
-
34293650046 Crimp ClampCrimp Clamp
-
35415080000 Protector TubeProtector Tube
-
36513033231 Protector TubeProtector Tube
-
37293750008 Tie Rap 368 mmTie Rap 368 mm
-
38293750008 Tie Rap 368 mmTie Rap 368 mm
-
39509000368 Coolant TankCoolant Tank
-
40241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
41415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
42509000180 Pressure CapPressure Cap
