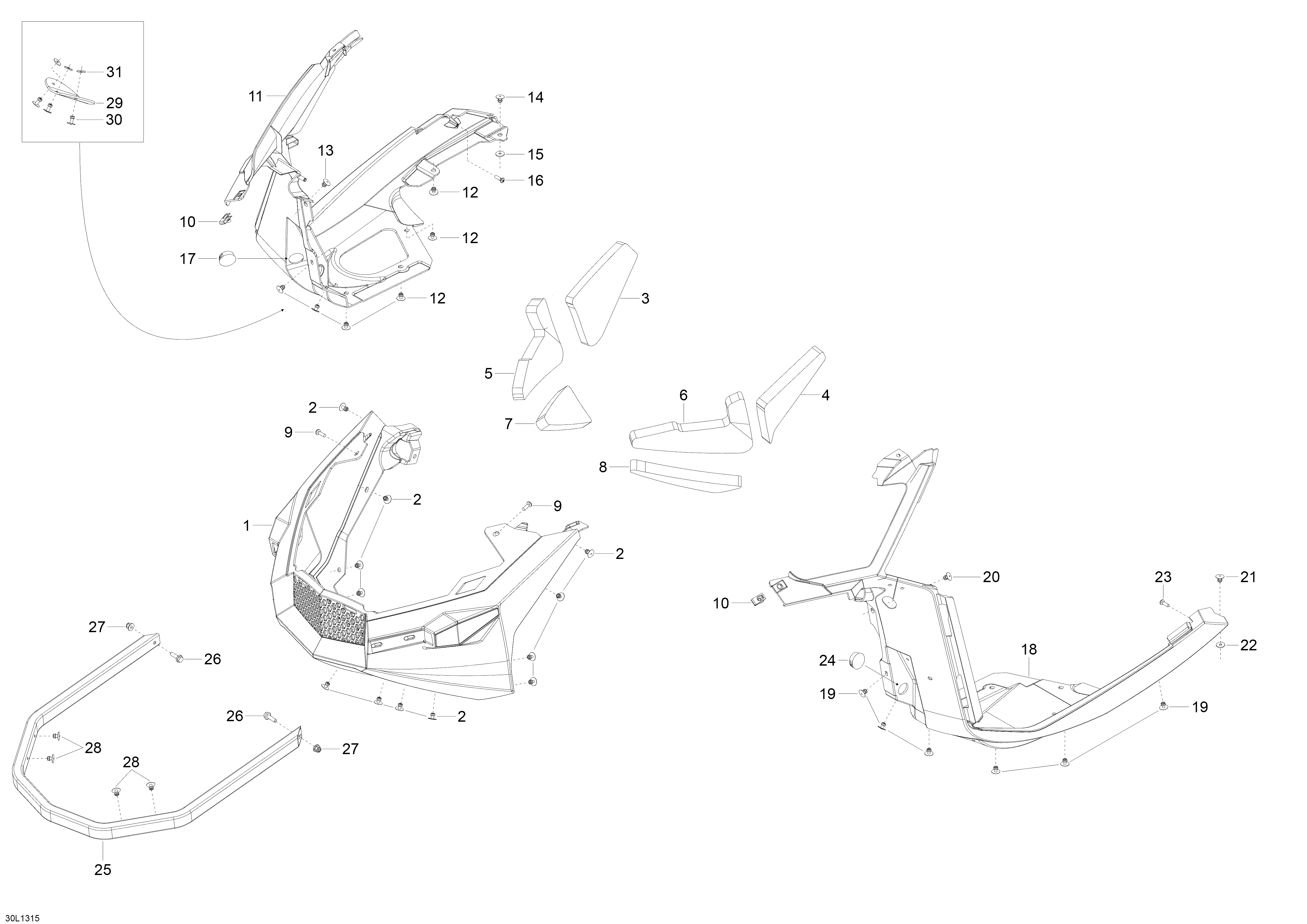

09- Bottom Pan для BRP Lynx BoonDocker 600 E-TEC - 2013
-
№АртикулНазвание
-
1502006971 Bottom PanBottom Pan
-
2293150104 Pop Rivet 3/16Pop Rivet 3/16
-
3502007210 Upper Foam RHUpper Foam RH
-
4502007211 Upper Foam LHUpper Foam LH
-
5502007212 Middle Foam RHMiddle Foam RH
-
6502007213 Middle Foam LHMiddle Foam LH
-
7502007214 Lower Foam RHLower Foam RH
-
8502007215 Lower Foam LHLower Foam LH
-
9250000129 Torx Truss M6 x 16Torx Truss M6 x 16
-
10250100113 Pannel Nut M6Pannel Nut M6
-
11502006831 Bottom Pan RHBottom Pan RH
-
12293150104 Pop Rivet 3/16Pop Rivet 3/16
-
13293150103 Pop Rivet 3/16Pop Rivet 3/16
-
14390402300 Pop Rivet 3/16Pop Rivet 3/16
-
15517124300 WasherWasher
-
16250000146 Truss Head Torx Screw K50 x 16Truss Head Torx Screw K50 x 16
-
17414916600 Nylon CapNylon Cap
-
18502006832 Bottom Pan LHBottom Pan LH
-
19293150104 Pop Rivet 3/16Pop Rivet 3/16
-
20293150103 Pop Rivet 3/16Pop Rivet 3/16
-
21390402300 Pop Rivet 3/16Pop Rivet 3/16
-
22517124300 WasherWasher
-
23250000146 Truss Head Torx Screw K50 x 16Truss Head Torx Screw K50 x 16
-
24414916600 Nylon CapNylon Cap
-
25502007116 Front BumperFront Bumper
-
26207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
27233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
28293150104 Pop Rivet 3/16Pop Rivet 3/16
-
29502006935 Snow DeflectorSnow Deflector
-
30293150108 Pop Rivet 3/16Pop Rivet 3/16
-
31517124300 WasherWasher
