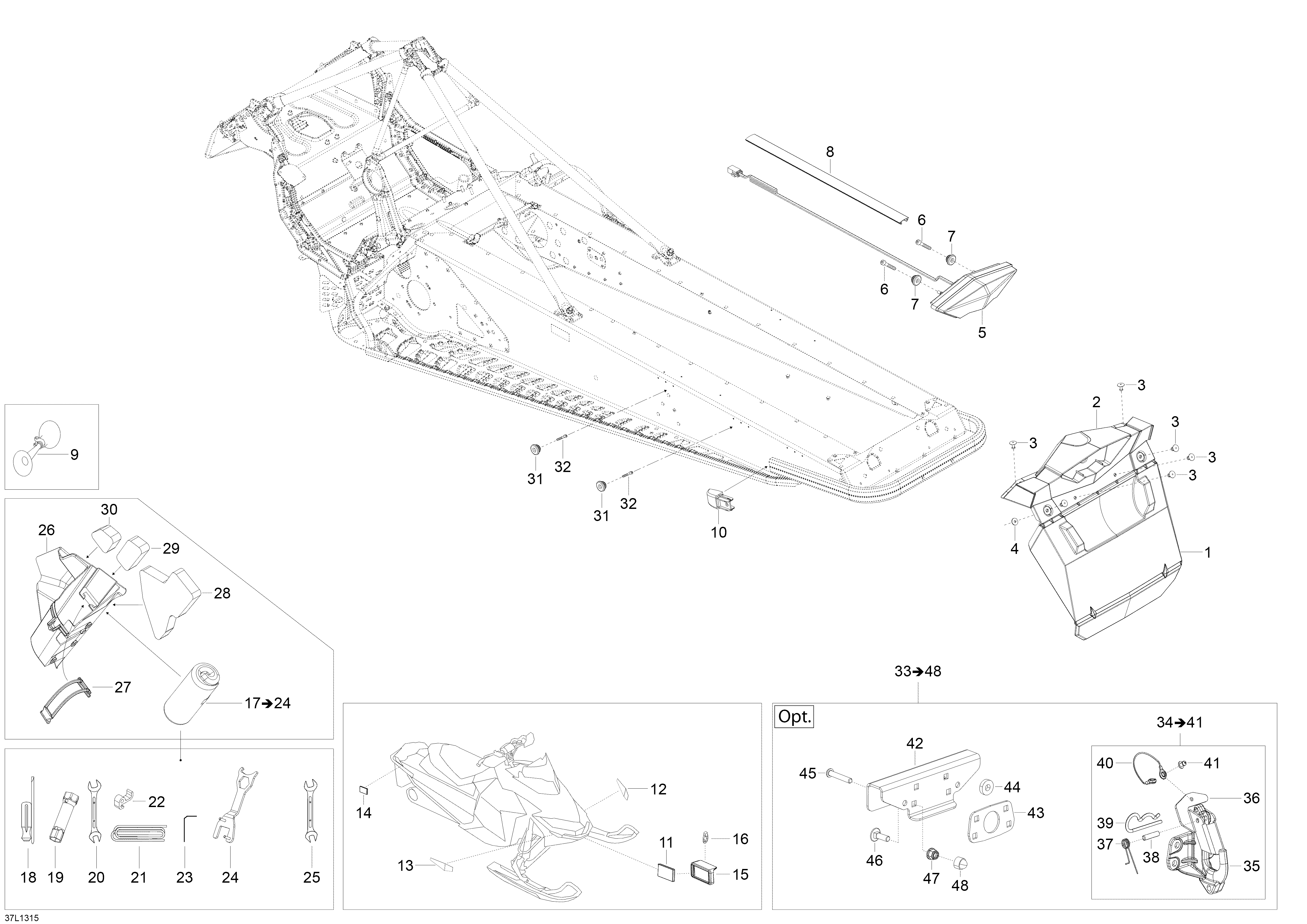

09- Utilities для BRP Lynx BoonDocker 600 E-TEC - 2013
-
№АртикулНазвание
-
1520001069 Snow GuardSnow Guard
-
2511000583 Light CoverLight Cover
-
3293150108 Pop Rivet 3/16Pop Rivet 3/16
-
4517124300 WasherWasher
-
5520000955 Rear LightRear Light
-
6250000451 Torx Screw K40 x 20Torx Screw K40 x 20
-
7705003666 GrommetGrommet
-
8520000829 TrimTrim
-
9549011291 HornHorn
-
10520000965 Cap RHCap RH
-
10520000964 Cap LHCap LH
-
1121118 Reflector, BrightReflector, Bright
-
12520000719 Reflector Front LHReflector Front LH
-
13520000718 Reflector Front RHReflector Front RH
-
1421121 Reflector, YellowReflector, Yellow
-
15520000871 Reflector SupportReflector Support
-
1627120 Tie RapTie Rap
-
17529000065 Tool Kit. Includes 17 To 24Tool Kit. Includes 17 To 24
-
18529000004 Screw DriverScrew Driver
-
19529000046 Socket WrenchSocket Wrench
-
20529000002 Fork Wrench 10/13Fork Wrench 10/13
-
21412500200 Starter RopeStarter Rope
-
22529000060 Starter GripStarter Grip
-
23520001142 KeyKey
-
24520000988 WrenchWrench
-
2534017 Wrench 17/19Wrench 17/19
-
26520000842 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
28520001059 FoamFoam
-
29520001061 FoamFoam
-
30520001062 FoamFoam
-
31520000889 Anchor LinkAnchor Link
-
32250000325 Torx TrussTorx Truss
-
33860200886 J-Hook Kit (Opt.). Includes 33 To 48J-Hook Kit (Opt.). Includes 33 To 48
-
34520001039 Hitch Ass?y. Includes 34 To 41Hitch Ass?y. Includes 34 To 41
-
35520001040 HookHook
-
36520001041 Locking PlateLocking Plate
-
37545693 SpringSpring
-
3841012 Spring PinSpring Pin
-
3941029 Cotter PinCotter Pin
-
405446839 Retainer CableRetainer Cable
-
41390909100 RivetRivet
-
42520001242 Hitch SupportHitch Support
-
43520001243 Hitch Fastening PlateHitch Fastening Plate
-
44520001288 SleeveSleeve
-
45205484546 Socket Screw M8 x 45Socket Screw M8 x 45
-
46207782544 Carriage Bolt M8 x 25Carriage Bolt M8 x 25
-
47233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4828056 CoverCover
