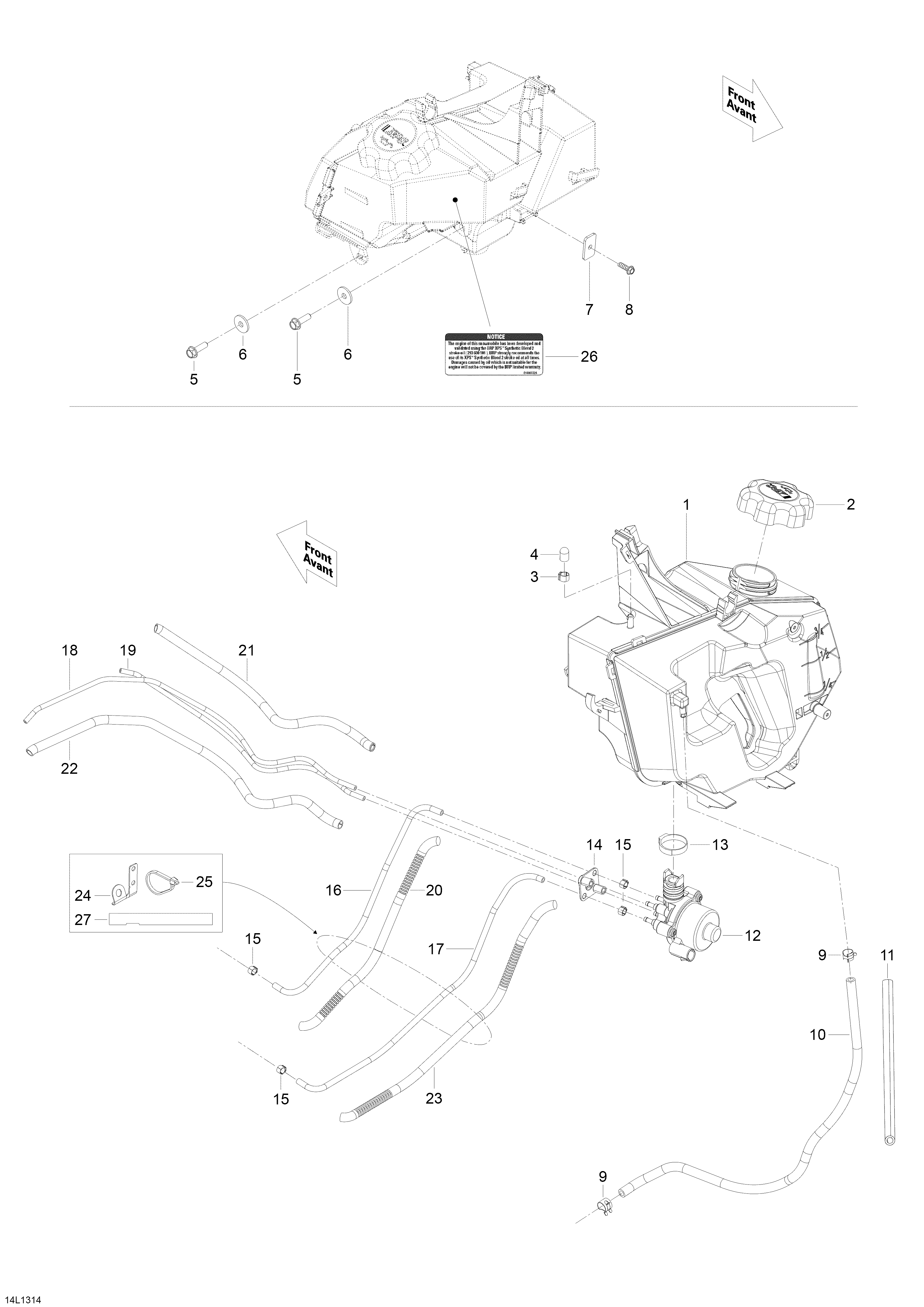

02- Oil System для BRP Lynx BoonDocker 800R E-TEC - 2013
-
№АртикулНазвание
-
1519000297 Oil TankOil Tank
-
2519000273 CapCap
-
3293650043 ClampClamp
-
4519000216 CapCap
-
5250000331 Hex. Flanged Forming Screw M6 x 20Hex. Flanged Forming Screw M6 x 20
-
6224061201 Flat WasherFlat Washer
-
7519000179 BracketBracket
-
8241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
9414554800 Spring ClampSpring Clamp
-
10415080200 Polyurethane Hose, 460mmPolyurethane Hose, 460mm
-
11415079900 Protector TubeProtector Tube
-
12519000281 Oil PumpOil Pump
-
13293650099 Crimp ClampCrimp Clamp
-
14519000271 BracketBracket
-
15293650100 ClampClamp
-
16519000182 HoseHose
-
17519000182 HoseHose
-
18519000184 HoseHose
-
19519000184 HoseHose
-
20515175442 Protector TubeProtector Tube
-
21515175442 Protector TubeProtector Tube
-
22515175442 Protector TubeProtector Tube
-
23515175442 Protector TubeProtector Tube
-
24519000245 BracketBracket
-
25293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
26516005528 Warning DecalWarning Decal
-
27516004648 Protect DecalProtect Decal
