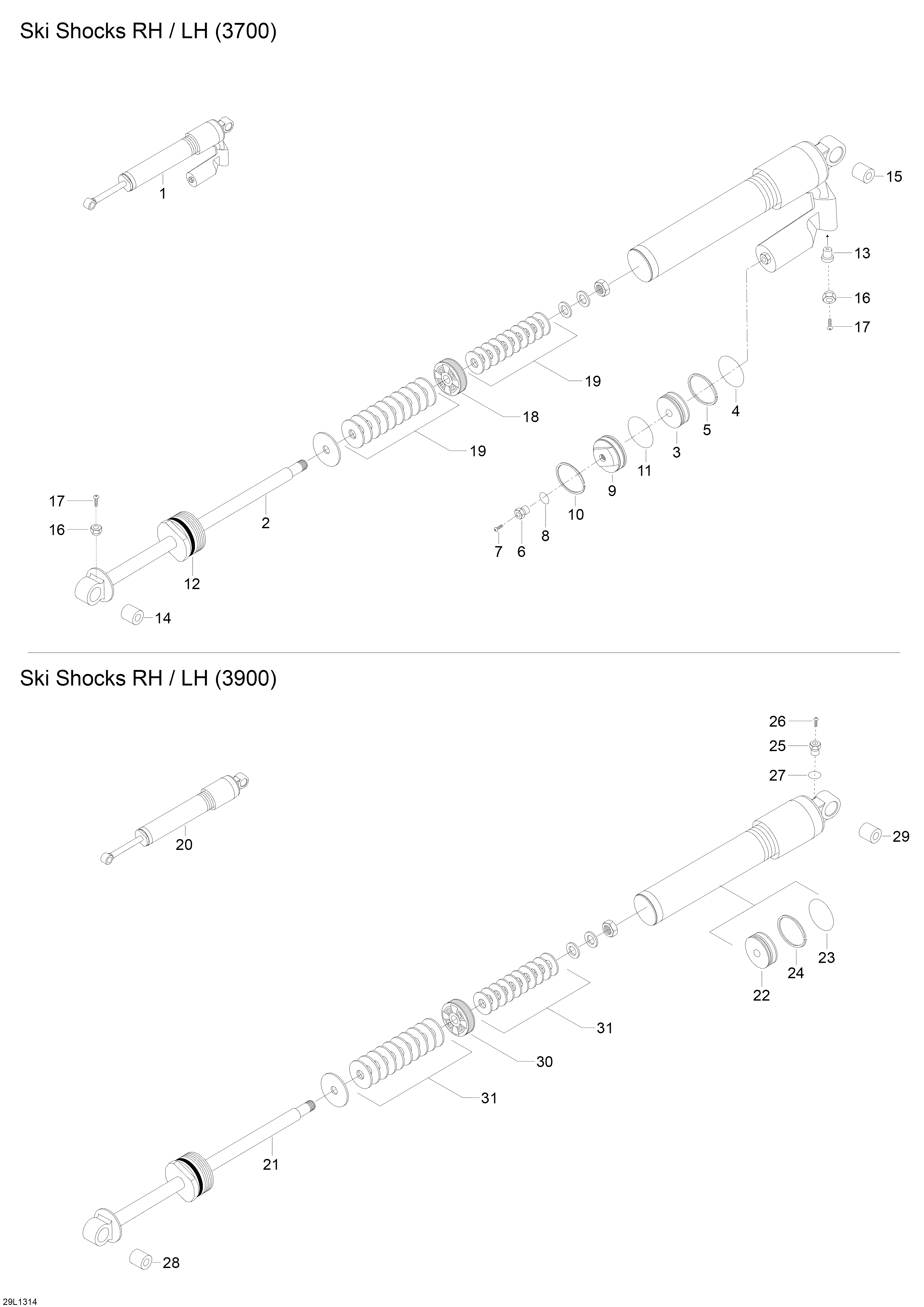

07- Ski Shocks для BRP Lynx BoonDocker 800R E-TEC - 2013
-
№АртикулНазвание
-
1505073157 Front Shock LH. (3700)Front Shock LH. (3700)
-
1505073158 Front Shock RH. (3700)Front Shock RH. (3700)
-
3619300007 Floating PistonFloating Piston
-
4415093807 O RingO Ring
-
5415093806 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
9619300009 Seal Carrier Ass'ySeal Carrier Ass'y
-
10619300006 Stop RingStop Ring
-
11415093804 O RingO Ring
-
14230055 Rubber BushRubber Bush
-
15619300028 Rubber BushRubber Bush
-
16505072753 Knob AdjusterKnob Adjuster
-
17205031060 Socket Screw M3 x 10Socket Screw M3 x 10
-
19619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
19619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
19619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
19619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
19230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
19230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
19230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
19230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
19619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
19619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
19619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
19619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
19619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
19619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
19619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
19619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
19619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
19619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
19619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
19619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
19619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
19619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
19619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
19619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
19619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
19619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
19619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
19619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
19619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
19619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
19619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
19619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
19619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
19619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
19230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
19619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
19619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
19619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
19619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
19230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
19230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
19230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
19230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
19619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
19230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
19619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
19619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
19503189038 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
19619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
19230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
19230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
19230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
19619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
19503189039 Shim 40/46 mm, 40 x 0,152Shim 40/46 mm, 40 x 0,152
-
19619300112 Shim 40/46 mm, 40 x 0,203Shim 40/46 mm, 40 x 0,203
-
19619300158 Shim 40/46 mm, 40 x 0,254Shim 40/46 mm, 40 x 0,254
-
19619300107 Shim 40/46 mm, 40 x 0,305Shim 40/46 mm, 40 x 0,305
-
20505073117 Front Shock. (3900)Front Shock. (3900)
-
23414888312 O RingO Ring
-
24503189308 Piston RingPiston Ring
-
25505070398 Air ValveAir Valve
-
26505070399 ScrewScrew
-
27505070400 O RingO Ring
-
28230055 Rubber BushRubber Bush
-
29619300028 Rubber BushRubber Bush
-
30619300108 Piston 36 mm, 0 x 0,3 SlitsPiston 36 mm, 0 x 0,3 Slits
-
30415128848 Piston 36 mm, 1 x 0,3 SlitsPiston 36 mm, 1 x 0,3 Slits
-
30619300161 Piston 36 mm, 2 x 0,3 slitsPiston 36 mm, 2 x 0,3 slits
-
30619300071 Piston 36 mm, 3 x 0,3 SlitsPiston 36 mm, 3 x 0,3 Slits
-
30619300109 Piston 36 mm, 4 x 0,3 SlitsPiston 36 mm, 4 x 0,3 Slits
-
30619300111 Piston 36 mm, 5 x 0,3 SlitsPiston 36 mm, 5 x 0,3 Slits
-
30619300110 Piston 36 mm, 6 x 0,3 SlitsPiston 36 mm, 6 x 0,3 Slits
-
31619300162 Shim 36 mm, 12 x 0,114Shim 36 mm, 12 x 0,114
-
31619300075 Shim 36 mm, 12 x 0,152Shim 36 mm, 12 x 0,152
-
31619300117 Shim 36 mm, 12 x 0,203Shim 36 mm, 12 x 0,203
-
31619300120 Shim 36 mm, 12 x 0,254Shim 36 mm, 12 x 0,254
-
31619300076 Shim 36 mm, 13 x 0,114Shim 36 mm, 13 x 0,114
-
31619300077 Shim 36 mm, 13 x 0,152Shim 36 mm, 13 x 0,152
-
31619300078 Shim 36 mm, 13 x 0,203Shim 36 mm, 13 x 0,203
-
31619300079 Shim 36 mm, 13 x 0,254Shim 36 mm, 13 x 0,254
-
31619300080 Shim 36 mm, 14 x 0,114Shim 36 mm, 14 x 0,114
-
31619300081 Shim 36 mm, 14 x 0,152Shim 36 mm, 14 x 0,152
-
31619300082 Shim 36 mm, 14 x 0,203Shim 36 mm, 14 x 0,203
-
31619300083 Shim 36 mm. 14 X 0,254Shim 36 mm. 14 X 0,254
-
31619300121 Shim 36 mm, 15 x 0,114Shim 36 mm, 15 x 0,114
-
31619300115 Shim 36 mm, 15 x 0,152Shim 36 mm, 15 x 0,152
-
31619300122 Shim 36 mm, 15 x 0,203Shim 36 mm, 15 x 0,203
-
31619300118 Shim 36 mm, 15 x 0,254Shim 36 mm, 15 x 0,254
-
31619300084 Shim 36 mm, 16 x 0,114Shim 36 mm, 16 x 0,114
-
31619300114 Shim 36 mm, 16 x 0,152Shim 36 mm, 16 x 0,152
-
31619300119 Shim 36 mm, 16 x 0,203Shim 36 mm, 16 x 0,203
-
31619300116 Shim 36 mm, 16 x 0,254Shim 36 mm, 16 x 0,254
-
31619300085 Shim 36 mm, 17 x 0,114Shim 36 mm, 17 x 0,114
-
31619300086 Shim 36 mm, 17 x 0,152Shim 36 mm, 17 x 0,152
-
31619300087 Shim 36 mm, 17 x 0,203Shim 36 mm, 17 x 0,203
-
31619300058 Shim 36 mm, 17 x 0,254Shim 36 mm, 17 x 0,254
-
31230015 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
31619300123 Shim 36 mm, 18 x 0,152Shim 36 mm, 18 x 0,152
-
31619300124 Shim 36 mm, 18 x 0,203Shim 36 mm, 18 x 0,203
-
31230016 Shim 36 mm, 18 x 0,254Shim 36 mm, 18 x 0,254
-
31619300088 Shim 36 mm, 19 x 0,114Shim 36 mm, 19 x 0,114
-
31619300089 Shim 36 mm, 19 x 0,152Shim 36 mm, 19 x 0,152
-
31619300090 Shim 36 mm, 19 x 0,203Shim 36 mm, 19 x 0,203
-
31619300091 Shim 36 mm, 19 x 0,254Shim 36 mm, 19 x 0,254
-
31619300125 Shim 36 mm, 20 x 0,114Shim 36 mm, 20 x 0,114
-
31619300126 Shim 36 mm, 20 x 0,152Shim 36 mm, 20 x 0,152
-
31619300127 Shim 36 mm, 20 x 0,203Shim 36 mm, 20 x 0,203
-
31230017 Shim 36 mm, 20 x 0,254Shim 36 mm, 20 x 0,254
-
31619300128 Shim 36 mm, 21 x 0,114Shim 36 mm, 21 x 0,114
-
31619300092 Shim 36 mm, 21 x 0,152Shim 36 mm, 21 x 0,152
-
31619300093 Shim 36 mm, 21 x 0,203Shim 36 mm, 21 x 0,203
-
31619300094 Shim 36 mm, 21 x 0,254Shim 36 mm, 21 x 0,254
-
31230018 Shim 36 mm, 22 x 0,114Shim 36 mm, 22 x 0,114
-
31619300129 Shim 36 mm, 22 x 0,152Shim 36 mm, 22 x 0,152
-
31619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
31230019 Shim 36 mm, 22 x 0,254Shim 36 mm, 22 x 0,254
-
31230021 Shim 36 mm, 24 x 0,114Shim 36 mm, 24 x 0,114
-
31230022 Shim 36 mm, 24 x 0,152Shim 36 mm, 24 x 0,152
-
31230023 Shim 36 mm, 24 x 0,203Shim 36 mm, 24 x 0,203
-
31619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
31230024 Shim 36 mm, 26 x 0,114Shim 36 mm, 26 x 0,114
-
31619300130 Shim 36 mm, 26 x 0,152Shim 36 mm, 26 x 0,152
-
31619300131 Shim 36 mm, 26 x 0,203Shim 36 mm, 26 x 0,203
-
31619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
31230025 Shim 36 mm, 28 x 0,114Shim 36 mm, 28 x 0,114
-
31619300096 Shim 36 mm, 28 x 0,152Shim 36 mm, 28 x 0,152
-
31619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
31230026 Shim 36 mm, 28 x 0,254Shim 36 mm, 28 x 0,254
-
31619300167 Shim 36 mm, 30 x 0,152Shim 36 mm, 30 x 0,152
-
31619300132 Shim 36 mm, 30 x 0,203Shim 36 mm, 30 x 0,203
-
31619300168 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
