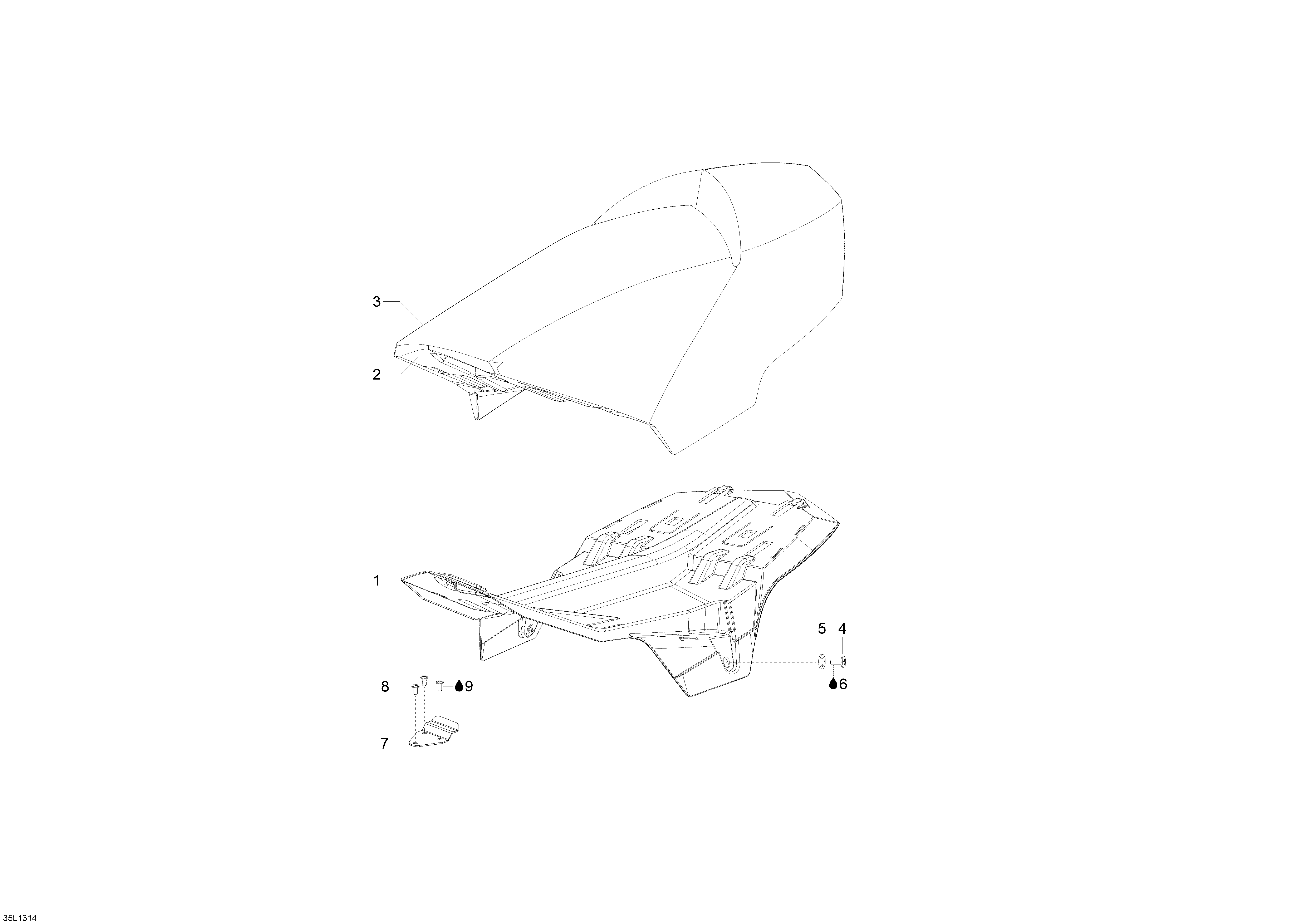

09- Seat для BRP Lynx BoonDocker 800R E-TEC - 2013
![](/wa-data/public/shop/sheme/bombardier/lynx/ce75bcb0-6faf-4aa2-bbd6-ccdef0ef28e5.png)
-
№АртикулНазвание
-
1510004899 Seat BaseSeat Base
-
2510005097 Seat Foam. (BoonDocker 3700)Seat Foam. (BoonDocker 3700)
-
2510004932 Seat Foam. (BoonDocker 3900)Seat Foam. (BoonDocker 3900)
-
3510005516 Seat Cover. (BoonDocker 3700)Seat Cover. (BoonDocker 3700)
-
3510005712 Seat Cover. (BoonDocker 3900)Seat Cover. (BoonDocker 3900)
-
4250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
5510005346 WasherWasher
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
7510005129 Seat Front Fastening PlateSeat Front Fastening Plate
-
8205461046 Socket Screw M6 x 10Socket Screw M6 x 10
-
9293800060 Loctite 243, 10mlLoctite 243, 10ml
