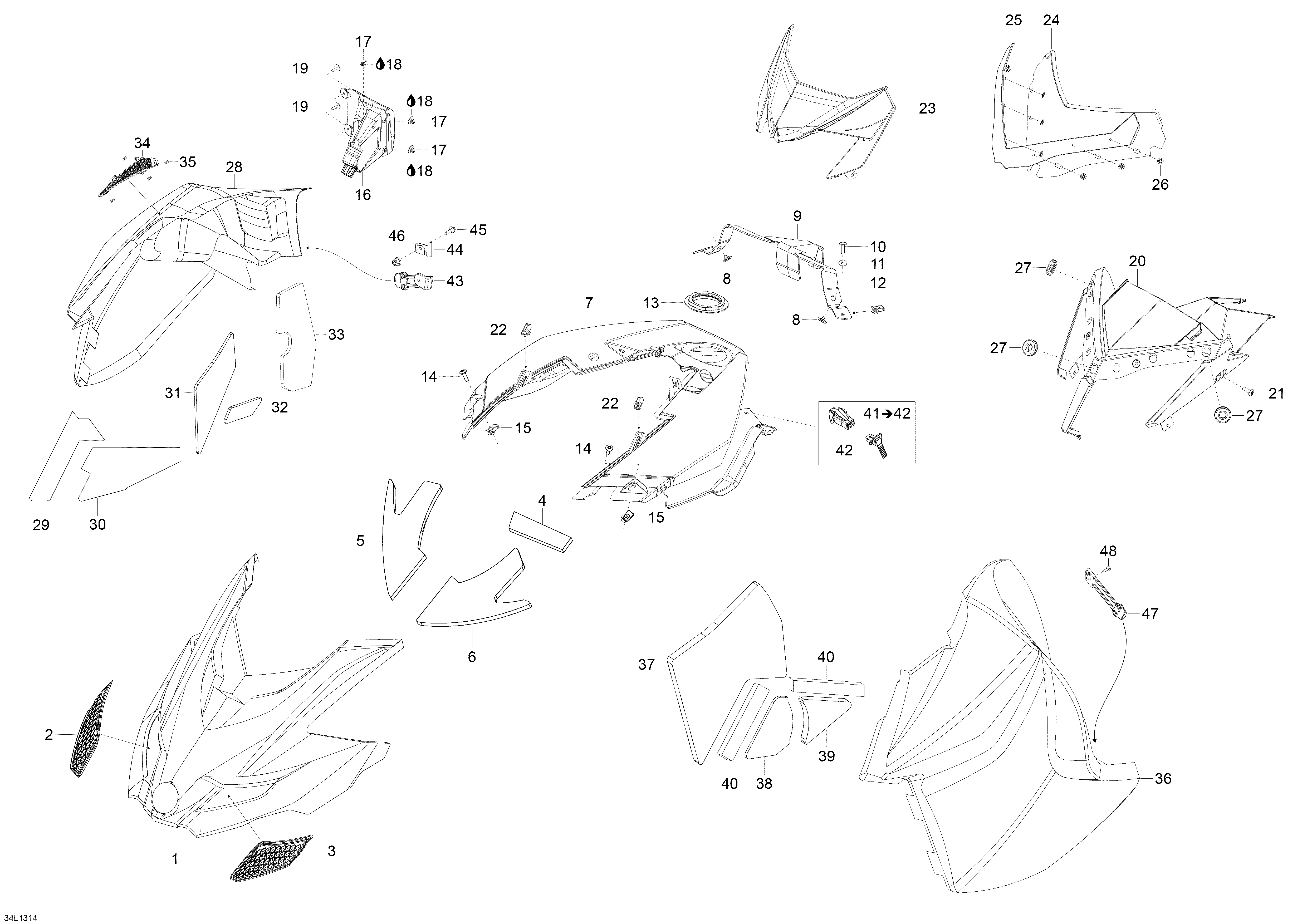

09- Hood для BRP Lynx BoonDocker 800R E-TEC - 2013
-
№АртикулНазвание
-
1517303962 HoodHood
-
2517304141 Hood Grill RHHood Grill RH
-
3517304008 Hood Grill LHHood Grill LH
-
4517304266 FoamFoam
-
5517304263 FoamFoam
-
6517304321 FoamFoam
-
7517304943 ConsoleConsole
-
8605452114 Rubber PlugRubber Plug
-
9517305363 Console Support, BlackConsole Support, Black
-
10250000130 Torx Truss M5 x 20Torx Truss M5 x 20
-
11517124300 WasherWasher
-
12250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
13517304518 Console NutConsole Nut
-
14250000128 Torx Truss M5 x 20Torx Truss M5 x 20
-
15732610057 Jack Nut M6Jack Nut M6
-
16517304322 Console RHConsole RH
-
17275500241 CapCap
-
18619600020 Loctite 480, 20gLoctite 480, 20g
-
19250000113 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
20517304581 Indicator SupportIndicator Support
-
21250000128 Torx Truss M6 x 20Torx Truss M6 x 20
-
22250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
23517303979 ShroudShroud
-
24517304293 WindshieldWindshield
-
25860200089 SupportSupport
-
26732610072 Push NutPush Nut
-
27517303756 GrommetGrommet
-
28517304980 Side Panel RHSide Panel RH
-
29517304264 Aluminium FoilAluminium Foil
-
30517304265 Aluminium FoilAluminium Foil
-
31517304220 FoamFoam
-
32517304306 FoamFoam
-
33517304339 FoamFoam
-
34517304007 GrillGrill
-
35517302785 ClipClip
-
36517304988 Side Panel LHSide Panel LH
-
37517304219 FoamFoam
-
38517304305 FoamFoam
-
39517304340 FoamFoam
-
40517305108 FoamFoam
-
41860200239 Latch Ass?y. Includes 41 To 42Latch Ass?y. Includes 41 To 42
-
42517303981 Latch PanelLatch Panel
-
43517303612 Latch PanelLatch Panel
-
44517304221 Latch SupportLatch Support
-
45207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
46233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
47517303808 Latch Panel LH lowerLatch Panel LH lower
-
48250000128 Torx Truss M6 x 20Torx Truss M6 x 20
