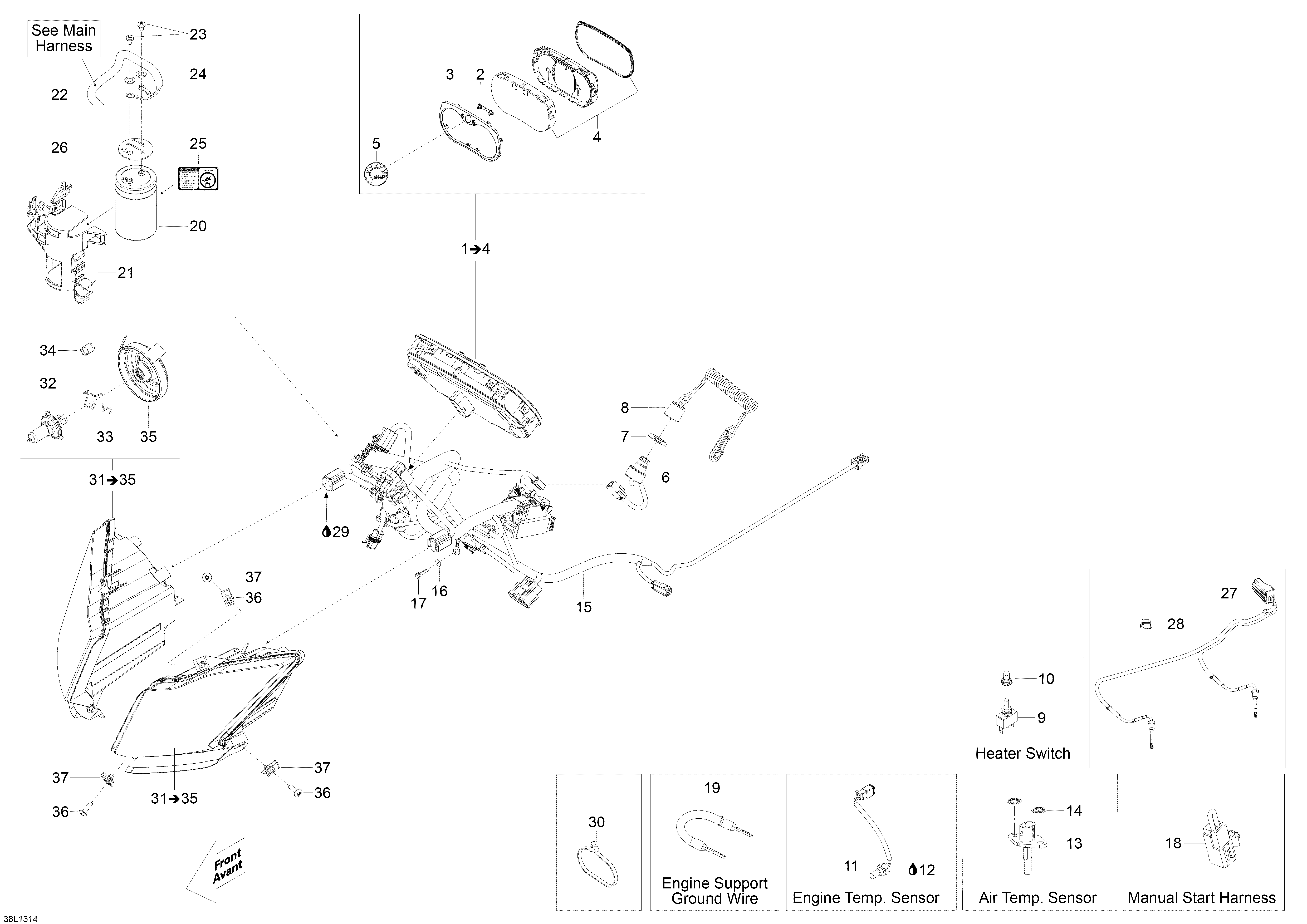

10- Electrical System для BRP Lynx BoonDocker 800R E-TEC - 2013
-
№АртикулНазвание
-
1515177468 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
9410107300 Switch GripSwitch Grip
-
10515175281 Switch CoverSwitch Cover
-
11515177471 Temperature SensorTemperature Sensor
-
13515176366 Air Temperature SensorAir Temperature Sensor
-
14389804300 Push NutPush Nut
-
15515177098 Main HarnessMain Harness
-
16234141601 Lock Washer M4Lock Washer M4
-
17250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
18515176661 Manual Start HarnessManual Start Harness
-
19515177289 Ground WireGround Wire
-
20515176349 CapacitorCapacitor
-
21515176607 Capacitor SupportCapacitor Support
-
23250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
24250200026 Lock washerLock washer
-
25516005515 Capacitor DecalCapacitor Decal
-
26515177193 CapCap
-
27515177446 ModuleModule
-
28414227300 Spring ClipSpring Clip
-
29619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
30414115200 Tie Rap 180mmTie Rap 180mm
-
30293750002 Tie Rap 142mmTie Rap 142mm
-
30293750008 Tie Rap 350mmTie Rap 350mm
-
30293750001 Tie Rap 94mmTie Rap 94mm
-
31517304194 Headlamp Ass'y RH. Includes 31 To 35Headlamp Ass'y RH. Includes 31 To 35
-
31517304195 Headlamp Ass'y LH. Includes 31 To 35Headlamp Ass'y LH. Includes 31 To 35
-
32515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
34515176141 CapCap
-
35515176499 CoverCover
-
36250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
37250100113 Panel Nut M6Panel Nut M6
