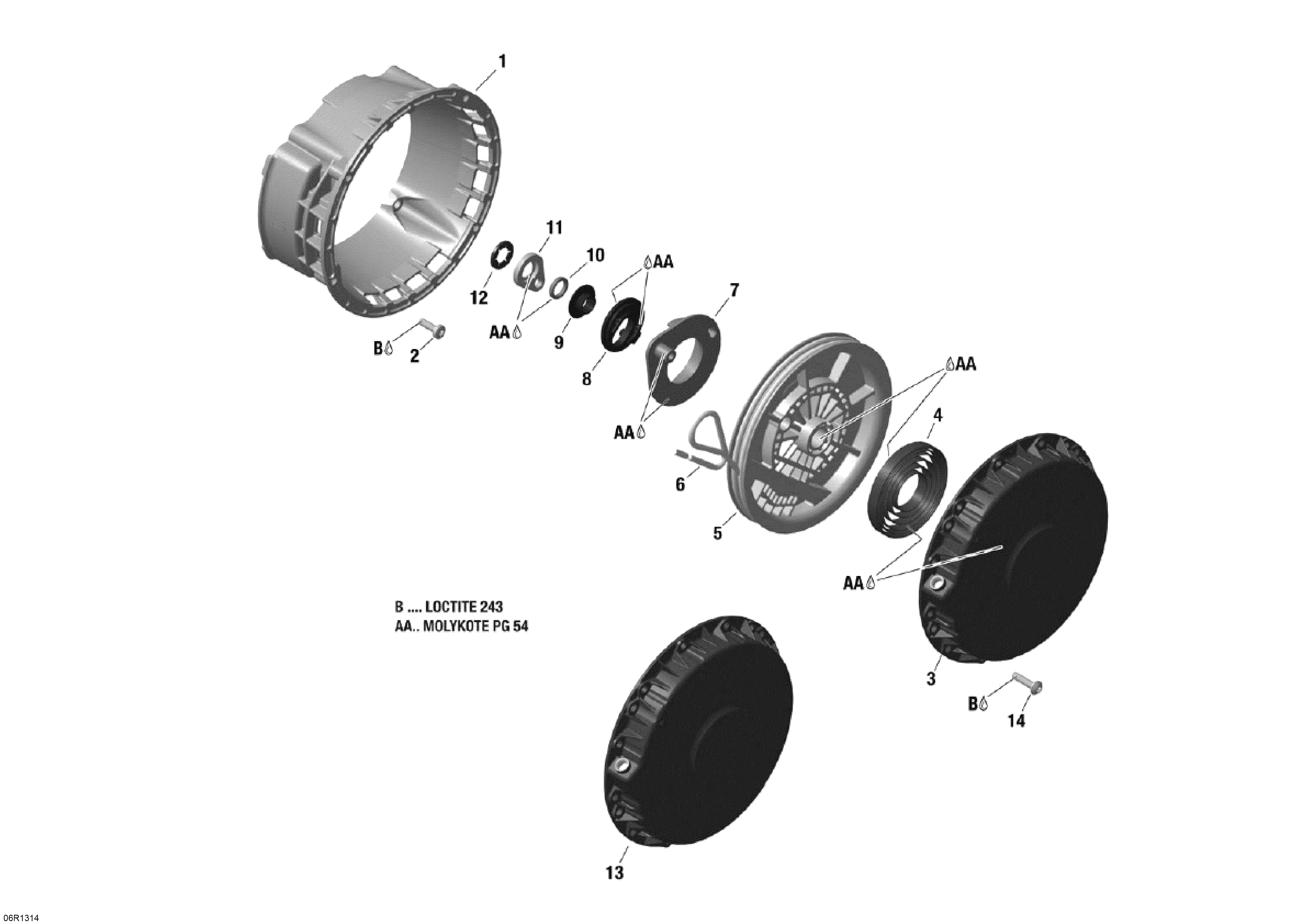

04- Rewind Starter для BRP Lynx BoonDocker 800R E-TEC - 2013
-
№АртикулНазвание
-
1420812941 Connecting FlangeConnecting Flange
-
2420941256 Hex. Collar Screw M6 x 20. Tightening Torque 12-14 NmHex. Collar Screw M6 x 20. Tightening Torque 12-14 Nm
-
-420892618 Rewind Starter Ass'y. Includes 3 To 12Rewind Starter Ass'y. Includes 3 To 12
-
3420910256 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter Rope, MeterStarter Rope, Meter
-
7420852295 PawlPawl
-
8420852640 Pawl LockPawl Lock
-
9420847926 Stage SleeveStage Sleeve
-
10420250407 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420910254 Cover. (Electric Start)Cover. (Electric Start)
-
14420940431 Screw 6 x 25. Tightening Torque 8-10 NmScrew 6 x 25. Tightening Torque 8-10 Nm
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
