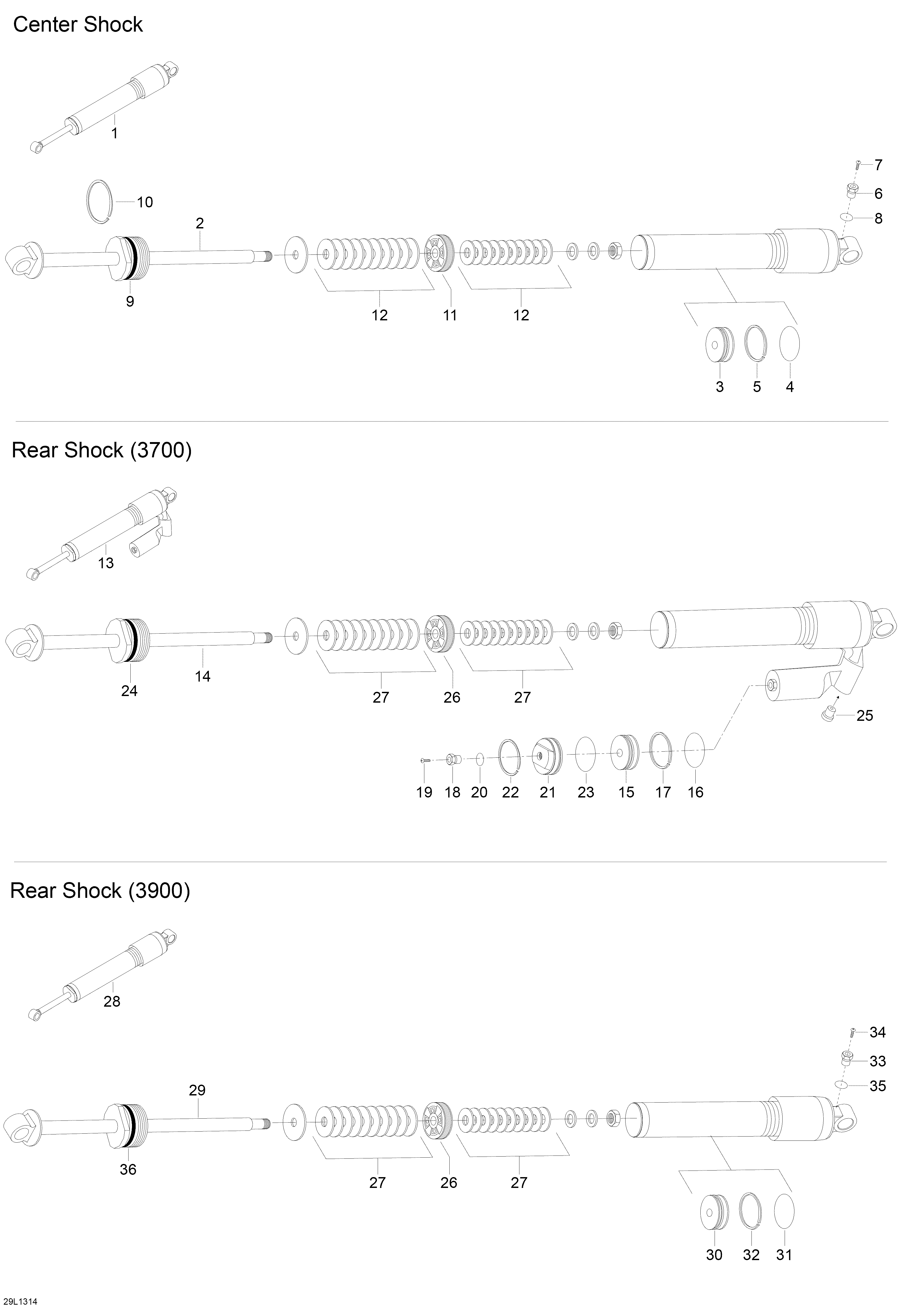

08- Rear Shocks для BRP Lynx BoonDocker 800R E-TEC - 2013
-
№АртикулНазвание
-
1619330004 Shock, Front ArmShock, Front Arm
-
4414888312 O RingO Ring
-
5503189308 Piston RingPiston Ring
-
6505070398 Air Valve Ass?yAir Valve Ass?y
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
11619300108 Piston 36 mm, 0 x 0,3 SlitsPiston 36 mm, 0 x 0,3 Slits
-
11415128848 Piston 36 mm, 1 x 0,3 SlitsPiston 36 mm, 1 x 0,3 Slits
-
11619300161 Piston 36 mm, 2 x 0,3 slitsPiston 36 mm, 2 x 0,3 slits
-
11619300071 Piston 36 mm, 3 x 0,3 SlitsPiston 36 mm, 3 x 0,3 Slits
-
11619300109 Piston 36 mm, 4 x 0,3 SlitsPiston 36 mm, 4 x 0,3 Slits
-
11619300111 Piston 36 mm, 5 x 0,3 SlitsPiston 36 mm, 5 x 0,3 Slits
-
11619300110 Piston 36 mm, 6 x 0,3 SlitsPiston 36 mm, 6 x 0,3 Slits
-
12619300162 Shim 36 mm, 12 x 0,114Shim 36 mm, 12 x 0,114
-
12619300075 Shim 36 mm, 12 x 0,152Shim 36 mm, 12 x 0,152
-
12619300117 Shim 36 mm, 12 x 0,203Shim 36 mm, 12 x 0,203
-
12619300120 Shim 36 mm, 12 x 0,254Shim 36 mm, 12 x 0,254
-
12619300076 Shim 36 mm, 13 x 0,114Shim 36 mm, 13 x 0,114
-
12619300077 Shim 36 mm, 13 x 0,152Shim 36 mm, 13 x 0,152
-
12619300078 Shim 36 mm, 13 x 0,203Shim 36 mm, 13 x 0,203
-
12619300079 Shim 36 mm, 13 x 0,254Shim 36 mm, 13 x 0,254
-
12619300080 Shim 36 mm, 14 x 0,114Shim 36 mm, 14 x 0,114
-
12619300081 Shim 36 mm, 14 x 0,152Shim 36 mm, 14 x 0,152
-
12619300082 Shim 36 mm, 14 x 0,203Shim 36 mm, 14 x 0,203
-
12619300083 Shim 36 mm. 14 X 0,254Shim 36 mm. 14 X 0,254
-
12619300121 Shim 36 mm, 15 x 0,114Shim 36 mm, 15 x 0,114
-
12619300115 Shim 36 mm, 15 x 0,152Shim 36 mm, 15 x 0,152
-
12619300122 Shim 36 mm, 15 x 0,203Shim 36 mm, 15 x 0,203
-
12619300118 Shim 36 mm, 15 x 0,254Shim 36 mm, 15 x 0,254
-
12619300084 Shim 36 mm, 16 x 0,114Shim 36 mm, 16 x 0,114
-
12619300114 Shim 36 mm, 16 x 0,152Shim 36 mm, 16 x 0,152
-
12619300119 Shim 36 mm, 16 x 0,203Shim 36 mm, 16 x 0,203
-
12619300116 Shim 36 mm, 16 x 0,254Shim 36 mm, 16 x 0,254
-
12619300085 Shim 36 mm, 17 x 0,114Shim 36 mm, 17 x 0,114
-
12619300086 Shim 36 mm, 17 x 0,152Shim 36 mm, 17 x 0,152
-
12619300087 Shim 36 mm, 17 x 0,203Shim 36 mm, 17 x 0,203
-
12619300058 Shim 36 mm, 17 x 0,254Shim 36 mm, 17 x 0,254
-
12230015 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
12619300123 Shim 36 mm, 18 x 0,152Shim 36 mm, 18 x 0,152
-
12619300124 Shim 36 mm, 18 x 0,203Shim 36 mm, 18 x 0,203
-
12230016 Shim 36 mm, 18 x 0,254Shim 36 mm, 18 x 0,254
-
12619300088 Shim 36 mm, 19 x 0,114Shim 36 mm, 19 x 0,114
-
12619300089 Shim 36 mm, 19 x 0,152Shim 36 mm, 19 x 0,152
-
12619300090 Shim 36 mm, 19 x 0,203Shim 36 mm, 19 x 0,203
-
12619300091 Shim 36 mm, 19 x 0,254Shim 36 mm, 19 x 0,254
-
12619300125 Shim 36 mm, 20 x 0,114Shim 36 mm, 20 x 0,114
-
12619300126 Shim 36 mm, 20 x 0,152Shim 36 mm, 20 x 0,152
-
12619300127 Shim 36 mm, 20 x 0,203Shim 36 mm, 20 x 0,203
-
12230017 Shim 36 mm, 20 x 0,254Shim 36 mm, 20 x 0,254
-
12619300128 Shim 36 mm, 21 x 0,114Shim 36 mm, 21 x 0,114
-
12619300092 Shim 36 mm, 21 x 0,152Shim 36 mm, 21 x 0,152
-
12619300093 Shim 36 mm, 21 x 0,203Shim 36 mm, 21 x 0,203
-
12619300094 Shim 36 mm, 21 x 0,254Shim 36 mm, 21 x 0,254
-
12230018 Shim 36 mm, 22 x 0,114Shim 36 mm, 22 x 0,114
-
12619300129 Shim 36 mm, 22 x 0,152Shim 36 mm, 22 x 0,152
-
12619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
12230019 Shim 36 mm, 22 x 0,254Shim 36 mm, 22 x 0,254
-
12230021 Shim 36 mm, 24 x 0,114Shim 36 mm, 24 x 0,114
-
12230022 Shim 36 mm, 24 x 0,152Shim 36 mm, 24 x 0,152
-
12230023 Shim 36 mm, 24 x 0,203Shim 36 mm, 24 x 0,203
-
12619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
12230024 Shim 36 mm, 26 x 0,114Shim 36 mm, 26 x 0,114
-
12619300130 Shim 36 mm, 26 x 0,152Shim 36 mm, 26 x 0,152
-
12619300131 Shim 36 mm, 26 x 0,203Shim 36 mm, 26 x 0,203
-
12619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
12230025 Shim 36 mm, 28 x 0,114Shim 36 mm, 28 x 0,114
-
12619300096 Shim 36 mm, 28 x 0,152Shim 36 mm, 28 x 0,152
-
12619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
12230026 Shim 36 mm, 28 x 0,254Shim 36 mm, 28 x 0,254
-
12619300104 Shim 36 mm, 30 x 0,152Shim 36 mm, 30 x 0,152
-
12619300132 Shim 36 mm, 30 x 0,203Shim 36 mm, 30 x 0,203
-
12619300168 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
-
13503193041 Shock, Rear Arm. (3700)Shock, Rear Arm. (3700)
-
15619300007 Floating PistonFloating Piston
-
16415093807 O RingO Ring
-
17415093806 Piston RingPiston Ring
-
18505070398 Air Valve Ass?yAir Valve Ass?y
-
19505070399 ScrewScrew
-
20505070400 O RingO Ring
-
21619300009 Seal Carrier Ass?ySeal Carrier Ass?y
-
22619300006 Stop RingStop Ring
-
23415093804 O RingO Ring
-
24619300019 Seal Carrier Ass?y 46mmSeal Carrier Ass?y 46mm
-
25619300015 Valve Ass?yValve Ass?y
-
26230043 Piston 46 mm, 0 mmPiston 46 mm, 0 mm
-
26619300159 Piston 46 mm, 1.2 mmPiston 46 mm, 1.2 mm
-
26619300160 Piston 46 mm, 1.7 mmPiston 46 mm, 1.7 mm
-
26230039 Piston 46 mm, 2.0 mmPiston 46 mm, 2.0 mm
-
27619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
27619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
27619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
27619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
27230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
27230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
27230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
27230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
27619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
27619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
27619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
27619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
27619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
27619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
27619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
27619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
27619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
27619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
27619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
27619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
27619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
27619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
27619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
27619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
27619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
27619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
27619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
27619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
27619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
27619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
27619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
27619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
27619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
27619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
27230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
27619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
27619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
27619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
27619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
27230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
27230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
27230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
27230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
27619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
27230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
27619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
27619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
27503189038 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
27619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
27230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
27230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
27230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
27619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
27503189039 Shim 40/46 mm, 40 x 0,152Shim 40/46 mm, 40 x 0,152
-
27619300112 Shim 40/46 mm, 40 x 0,203Shim 40/46 mm, 40 x 0,203
-
27619300158 Shim 40/46 mm, 40 x 0,254Shim 40/46 mm, 40 x 0,254
-
27619300107 Shim 40/46 mm, 40 x 0,305Shim 40/46 mm, 40 x 0,305
-
28503193514 Shock, Rear Arm. (BoonDocker 3900)Shock, Rear Arm. (BoonDocker 3900)
-
30503189008 Floating PistonFloating Piston
-
31503189007 O RingO Ring
-
32503189006 Piston RingPiston Ring
-
33505070398 Air ValveAir Valve
-
34505070399 ScrewScrew
-
35505070400 O RingO Ring
-
36230060 Seal Carrier Ass?y 46mmSeal Carrier Ass?y 46mm
