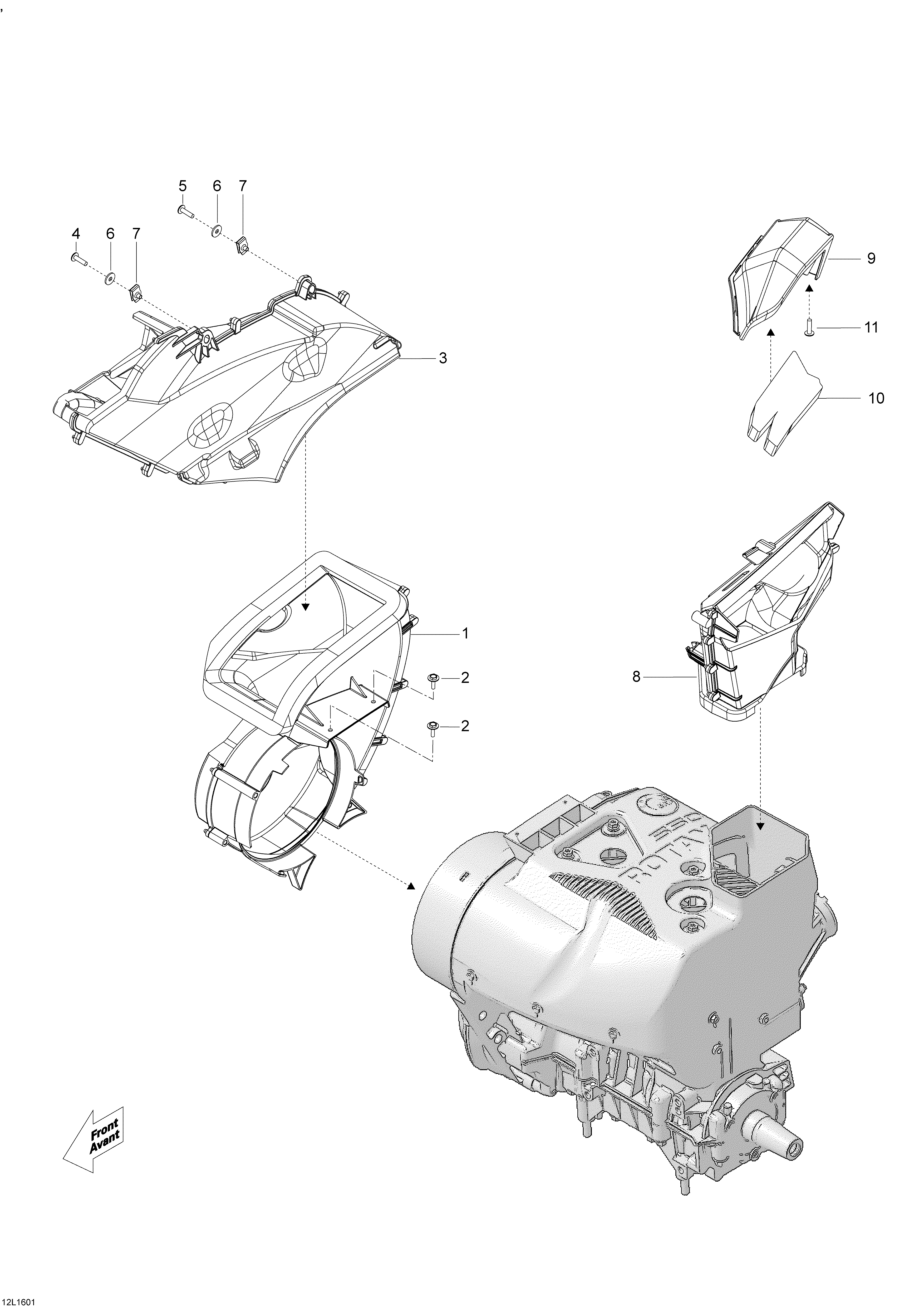

01- Cooling System для BRP Lynx 59 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1509000840 Inlet Duct Ass'yInlet Duct Ass'y
-
2250000725 Screw M4 x 16Screw M4 x 16
-
3509000684 Air Chamber Ass'yAir Chamber Ass'y
-
4250000724 Torx Screw M5 x 20Torx Screw M5 x 20
-
5250000762 Torx-Truss Screw M5 x 25Torx-Truss Screw M5 x 25
-
6391301600 WasherWasher
-
7250000079 Panel Nut M5Panel Nut M5
-
8509000683 Outlet Duct Ass'yOutlet Duct Ass'y
-
9509000687 Air Out DeflectorAir Out Deflector
-
10509000831 Air Inlet FoamAir Inlet Foam
-
11293700048 Plastofast Screw 6 x 16Plastofast Screw 6 x 16
