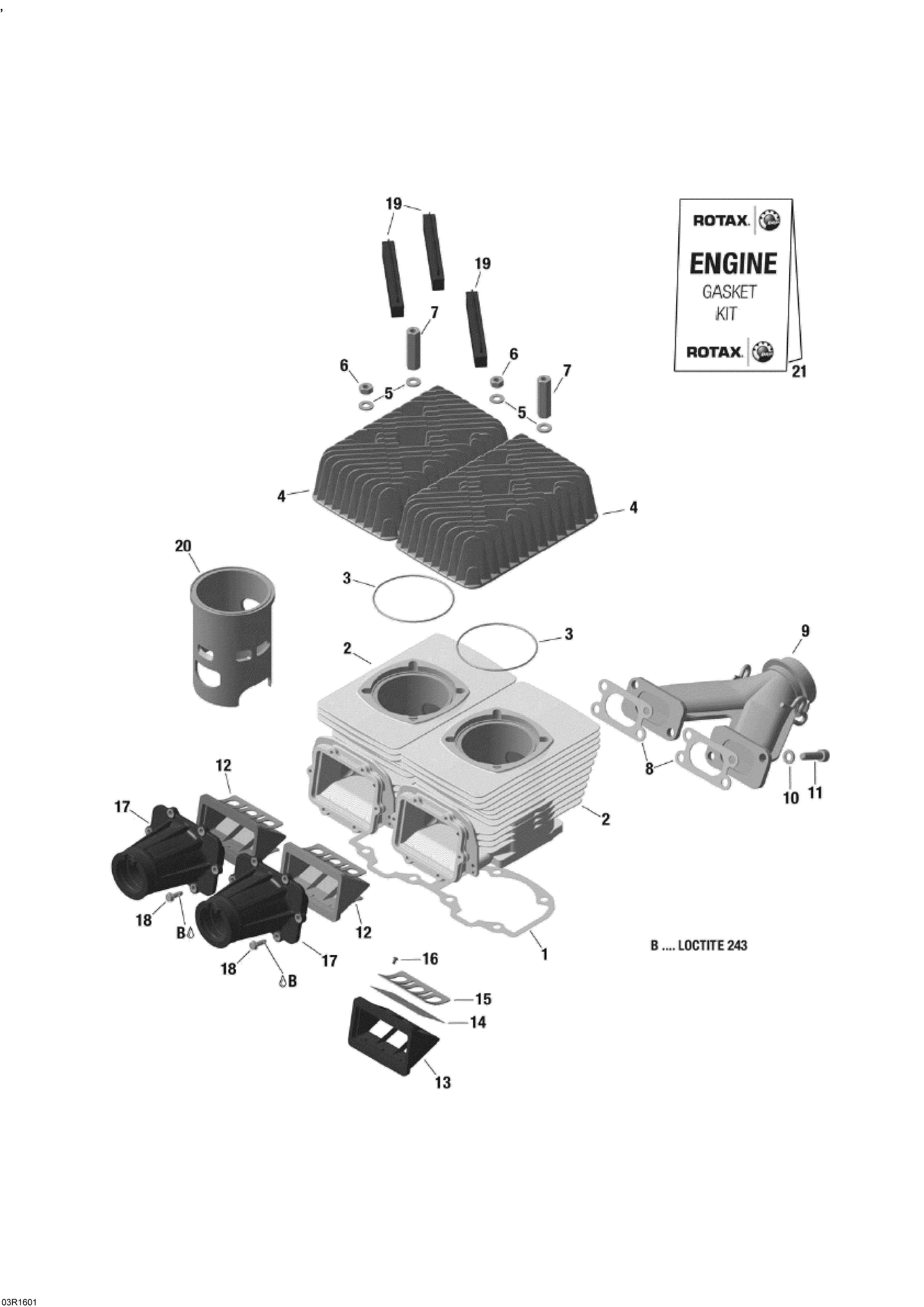

01- Cylinder And Cylinder Head - 550F для BRP Lynx 59 YETI (2-Stroke) - 2016

№

Артикул

Название
1

420950910 Gasket 0.3mm

Gasket 0.3mm

5 150 ₽
1

420950911 Gasket 0.4mm

Gasket 0.4mm

6 020 ₽
1

420950912 Gasket 0.6mm

Gasket 0.6mm

6 020 ₽
2

420623142 Cylinder With Sleeve

Cylinder With Sleeve

164 850 ₽
3

293300026 O-Ring

O-Ring

4 480 ₽
4

420923597 Cylinderhead

Cylinderhead

91 350 ₽
5

420250311 Washer

Washer

110 ₽
6

232081414 Nut M8. Tightening Torque 21-23 Nm

Nut M8. Tightening Torque 21-23 Nm

270 ₽
7

420842204 Distance Nut M8 x 47. Tightening Torque 21-23 Nm

Distance Nut M8 x 47. Tightening Torque 21-23 Nm

1 250 ₽
8

420831849 Gasket

Gasket

3 340 ₽
9

420673065 Exhaust Manifold Ass'y

Exhaust Manifold Ass'y

105 700 ₽
10

420945752 Lock Washer

Lock Washer

420 ₽
11

205083044 Allen Screw M8 x 30. Tightening Torque 21-22 Nm

Allen Screw M8 x 30. Tightening Torque 21-22 Nm

390 ₽
12

420924519 Reed Valve Ass'y

Reed Valve Ass'y

56 280 ₽
14

420924532 Reed Petal

Reed Petal

14 560 ₽
15

420924539 Reed Petal Stop

Reed Petal Stop

3 820 ₽
16

420941215 Oval Head Screw M3 x 5. Tightening Torque 1,2-1,5 Nm

Oval Head Screw M3 x 5. Tightening Torque 1,2-1,5 Nm

160 ₽
17

420667600 Carburetor Socket

Carburetor Socket

46 890 ₽
18

420941925 Taptite Screw M5 x 16. Tightening Torque 5-6 Nm

Taptite Screw M5 x 16. Tightening Torque 5-6 Nm

180 ₽
19

420860091 Noise Damper

Noise Damper

1 250 ₽
21

420889911 Engine Gasket Set

Engine Gasket Set

9 630 ₽
