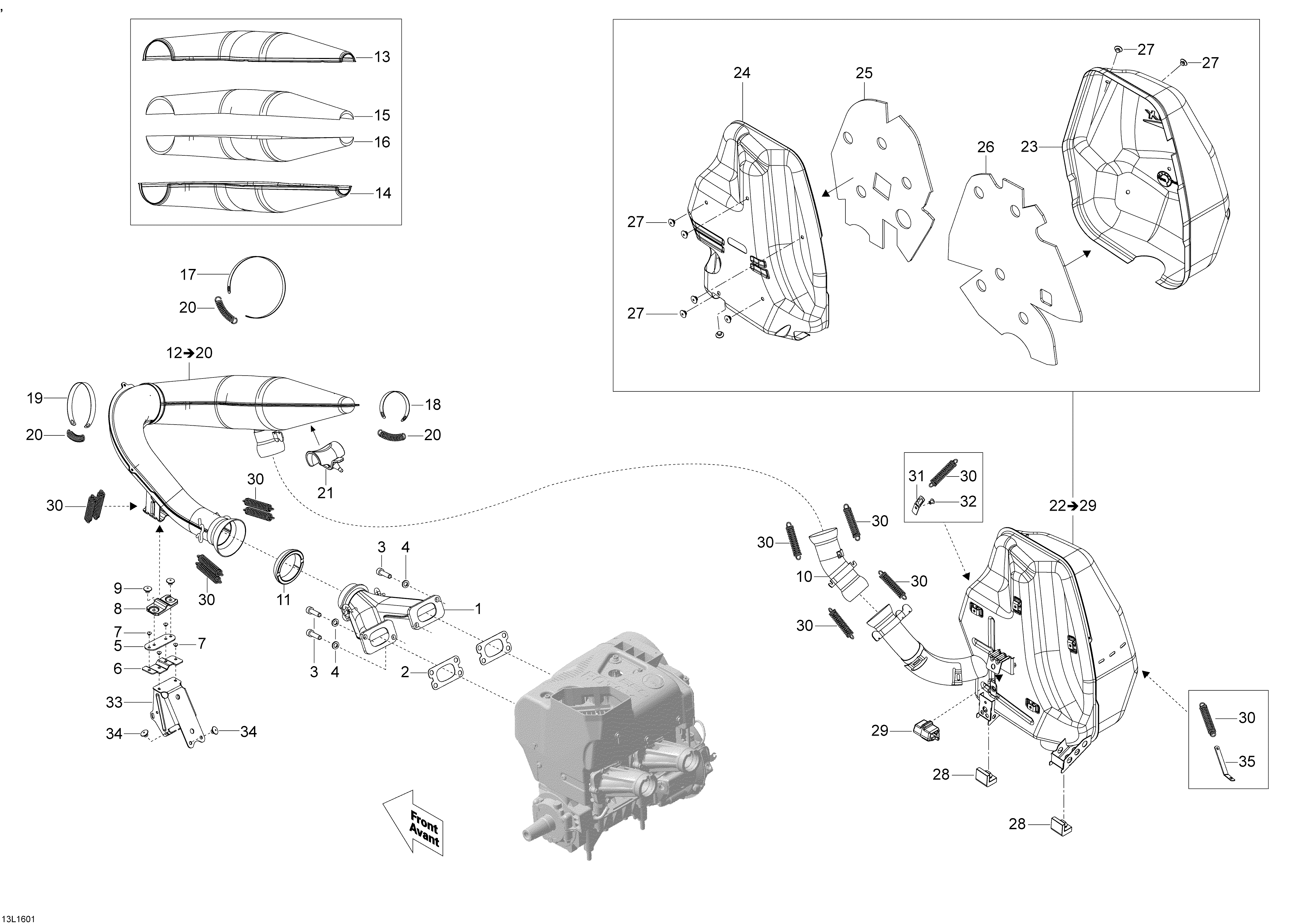

01- Exhaust System для BRP Lynx 59 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0mmGasket 1.0mm
-
3205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
4250200111 WasherWasher
-
5514055275 Support PlateSupport Plate
-
6514055270 SupportSupport
-
7390909200 RivetRivet
-
8514054617 BumperBumper
-
9293150103 Pop Rivet 3/16Pop Rivet 3/16
-
10514054411 Exhaust ElbowExhaust Elbow
-
11514053644 Exhaust GasketExhaust Gasket
-
12514054414 Calibrated Tube Ass'y. Includes 12 To 20Calibrated Tube Ass'y. Includes 12 To 20
-
13514054208 Rear Upper Half EnvelopeRear Upper Half Envelope
-
14514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
15514054244 Upper Insulating WoolUpper Insulating Wool
-
16514054243 Lower Insulating WoolLower Insulating Wool
-
17514053502 Retaining StrapRetaining Strap
-
18514053492 Retaining StrapRetaining Strap
-
19514053498 Retaining StrapRetaining Strap
-
20514053643 SpringSpring
-
21514054513 BumperBumper
-
22514055055 Muffler Ass'y. Includes 22 To 29Muffler Ass'y. Includes 22 To 29
-
23514054984 RH DeflectorRH Deflector
-
24514055069 LH DeflectorLH Deflector
-
25514054421 LH Insulated WoolLH Insulated Wool
-
26514054711 RH Insulating WoolRH Insulating Wool
-
27390910000 Pop Rivet 3/16Pop Rivet 3/16
-
28514054529 Lower StopperLower Stopper
-
29514054606 Upper StopperUpper Stopper
-
30415107100 SpringSpring
-
31514054391 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16Pop Rivet 3/16
-
33514054767 Muffler SupportMuffler Support
-
34293150096 RivetRivet
-
35514054846 Spring BracketSpring Bracket
