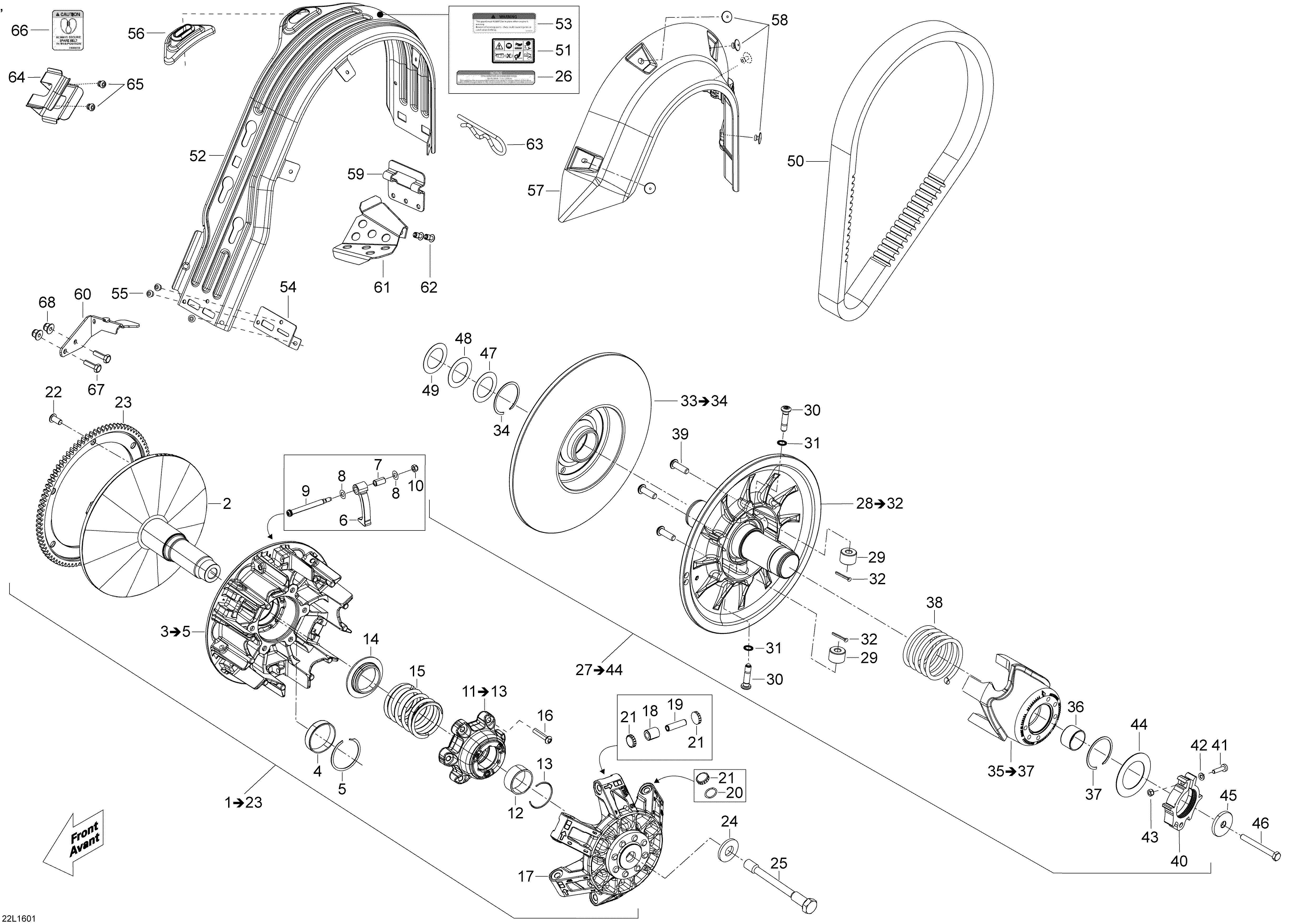

05- Pulley System для BRP Lynx 59 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
2417223870 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223855 Sliding Flange Ass'y. Includes 3 To 5Sliding Flange Ass'y. Includes 3 To 5
-
4417222758 Journal BearingJournal Bearing
-
5293370037 CirclipCirclip
-
6417223604 Ramp (700)Ramp (700)
-
8417223255 WasherWasher
-
9417223694 Axle RampAxle Ramp
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223907 Spring Cover Ass'y. Includes 11 To 13Spring Cover Ass'y. Includes 11 To 13
-
13293370065 CirclipCirclip
-
14417223752 Spring SeatSpring Seat
-
15417223748 Spring (Red/Yellow, 355-789N / 80-177lbs)Spring (Red/Yellow, 355-789N / 80-177lbs)
-
16250000580 Torx Button Head Screw M6 x 30Torx Button Head Screw M6 x 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300185 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250000706 Torx Button Head Screw M8 x 16, Scotch GripTorx Button Head Screw M8 x 16, Scotch Grip
-
23417223476 Gear RingGear Ring
-
24250200144 Spring WasherSpring Washer
-
25417300432 Drive Pulley BoltDrive Pulley Bolt
-
26516005503 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
28417127466 Fixed Flange Ass'y. Includes 28 To 32Fixed Flange Ass'y. Includes 28 To 32
-
29417127189 RollerRoller
-
30417127294 StudStud
-
31250200009 Lock WasherLock Washer
-
32250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
33417127366 Sliding Flange Ass'y. Includes 33 To 34Sliding Flange Ass'y. Includes 33 To 34
-
34293370049 CirclipCirclip
-
35417127460 Cam Ass'y (47/44°). Includes 35 To 37Cam Ass'y (47/44°). Includes 35 To 37
-
36417127318 BushingBushing
-
37293370049 CirclipCirclip
-
38417127243 Spring (White, 476-705N / 107-158lbs)Spring (White, 476-705N / 107-158lbs)
-
39250000757 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
40415129604 Pulley Adjuster Ass'yPulley Adjuster Ass'y
-
41205052544 Socket Screw M5 x 25Socket Screw M5 x 25
-
42234051410 Flat Washer M5Flat Washer M5
-
43232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
44417127155 WasherWasher
-
45517302322 Strength WasherStrength Washer
-
46207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
47417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
-
48417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
-
49504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
50414860700 Drive BeltDrive Belt
-
51516003919 Warning Decal. Model-EuropeWarning Decal. Model-Europe
-
52417300382 Belt GuardBelt Guard
-
53516006900 Belt Guard Security DecalBelt Guard Security Decal
-
54417300380 ReinforcementReinforcement
-
55390909200 RivetRivet
-
56417300381 GuideGuide
-
57417300356 Side ProtectorSide Protector
-
58293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
59417300363 Belt Guard BracketBelt Guard Bracket
-
60417300451 Belt Guard BracketBelt Guard Bracket
-
61518325626 Brake Hose CoverBrake Hose Cover
-
62293150163 RivetRivet
-
63114045200 Hair PinHair Pin
-
64517281905 Drive Belt BracketDrive Belt Bracket
-
65390909100 RivetRivet
-
66516007493 Belt DecalBelt Decal
-
67207162044 Screw M6 x 20Screw M6 x 20
-
68233261414 Nut M6Nut M6
