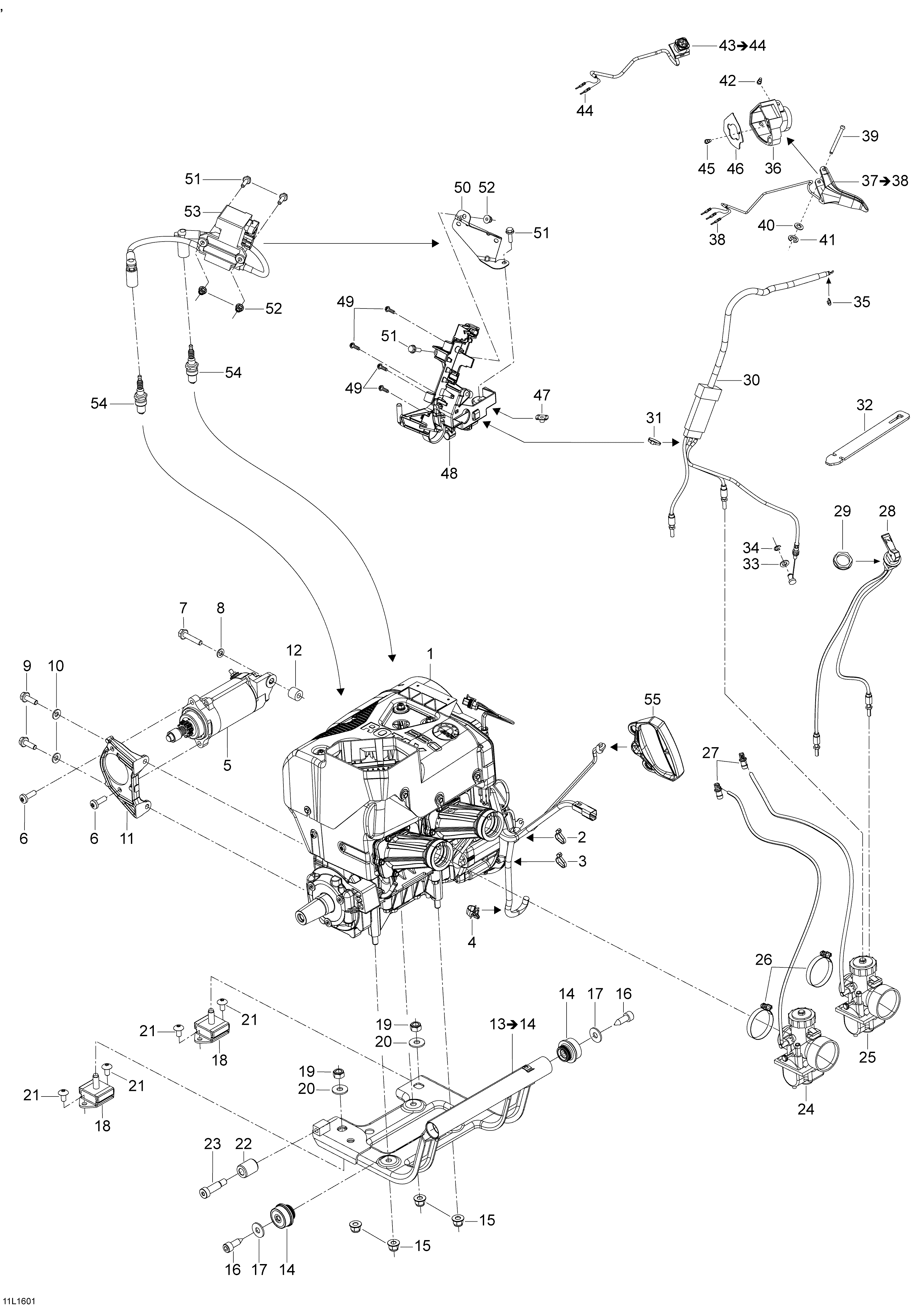

01- Engine And Engine Support для BRP Lynx 59 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
2414115200 Tie-Rap 180mmTie-Rap 180mm
-
3414115200 Tie-Rap 180mmTie-Rap 180mm
-
4515176795 ClipClip
-
5515177389 Electric StarterElectric Starter
-
6250000752 Pan HD Screw M8 x 25Pan HD Screw M8 x 25
-
7207584544 Hex. Flange Screw M8 x 45Hex. Flange Screw M8 x 45
-
8250200008 Flat WasherFlat Washer
-
9207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11512060656 SupportSupport
-
12515176597 SpacerSpacer
-
13512060637 Engine Support Ass'y. Includes 13 To 14Engine Support Ass'y. Includes 13 To 14
-
14512059691 Rubber MountRubber Mount
-
15233201414 Hex. Flange Elastic Nut M10Hex. Flange Elastic Nut M10
-
16250000094 Screw M10 x 30Screw M10 x 30
-
17250200014 Flat WasherFlat Washer
-
18512060564 Rubber MountRubber Mount
-
19232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
20250200014 Flat WasherFlat Washer
-
21250000198 Torx Truss Screw M8 x 16Torx Truss Screw M8 x 16
-
22512060395 StopperStopper
-
23250000463 Socket Head Screw M12 x 30, Scotch GripSocket Head Screw M12 x 30, Scotch Grip
-
24403138814 Carburetor VM30-219 (PTO)Carburetor VM30-219 (PTO)
-
25403138813 Carburetor VM30-218 (MAG)Carburetor VM30-218 (MAG)
-
26512059834 ClampClamp
-
27414814100 Male ConnectorMale Connector
-
28512060676 Choke CableChoke Cable
-
29512060671 Plastic NutPlastic Nut
-
30512060885 Throttle CableThrottle Cable
-
31414115200 Tie-Rap 188mmTie-Rap 188mm
-
32293850117 Rubber StrapRubber Strap
-
33234081100 Flat WasherFlat Washer
-
34414753500 CirclipCirclip
-
35414274500 CirclipCirclip
-
36512060603 Throttle HousingThrottle Housing
-
37512060307 Handle Ass'y. Includes 37 To 38Handle Ass'y. Includes 37 To 38
-
38515175232 Male TerminalMale Terminal
-
39414438700 Pin LeverPin Lever
-
40234051600 Flat WasherFlat Washer
-
41293370050 CirclipCirclip
-
42414440800 Set Screw M8 x 10Set Screw M8 x 10
-
43515177362 Kill Switch. Includes 43 To 44Kill Switch. Includes 43 To 44
-
44515175232 Male TerminalMale Terminal
-
45250000265 Torx Screw 2.9 x 12Torx Screw 2.9 x 12
-
46512060390 PlatePlate
-
47293100003 Weld Nut M6Weld Nut M6
-
48512060924 Support CoilsSupport Coils
-
49241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
50512060460 Support CoilsSupport Coils
-
51207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
52233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
53512060324 Calibrated ModuleCalibrated Module
-
54512059552 Spark Plug (BR9ECS-5)Spark Plug (BR9ECS-5)
-
55512060136 Starter GripStarter Grip
