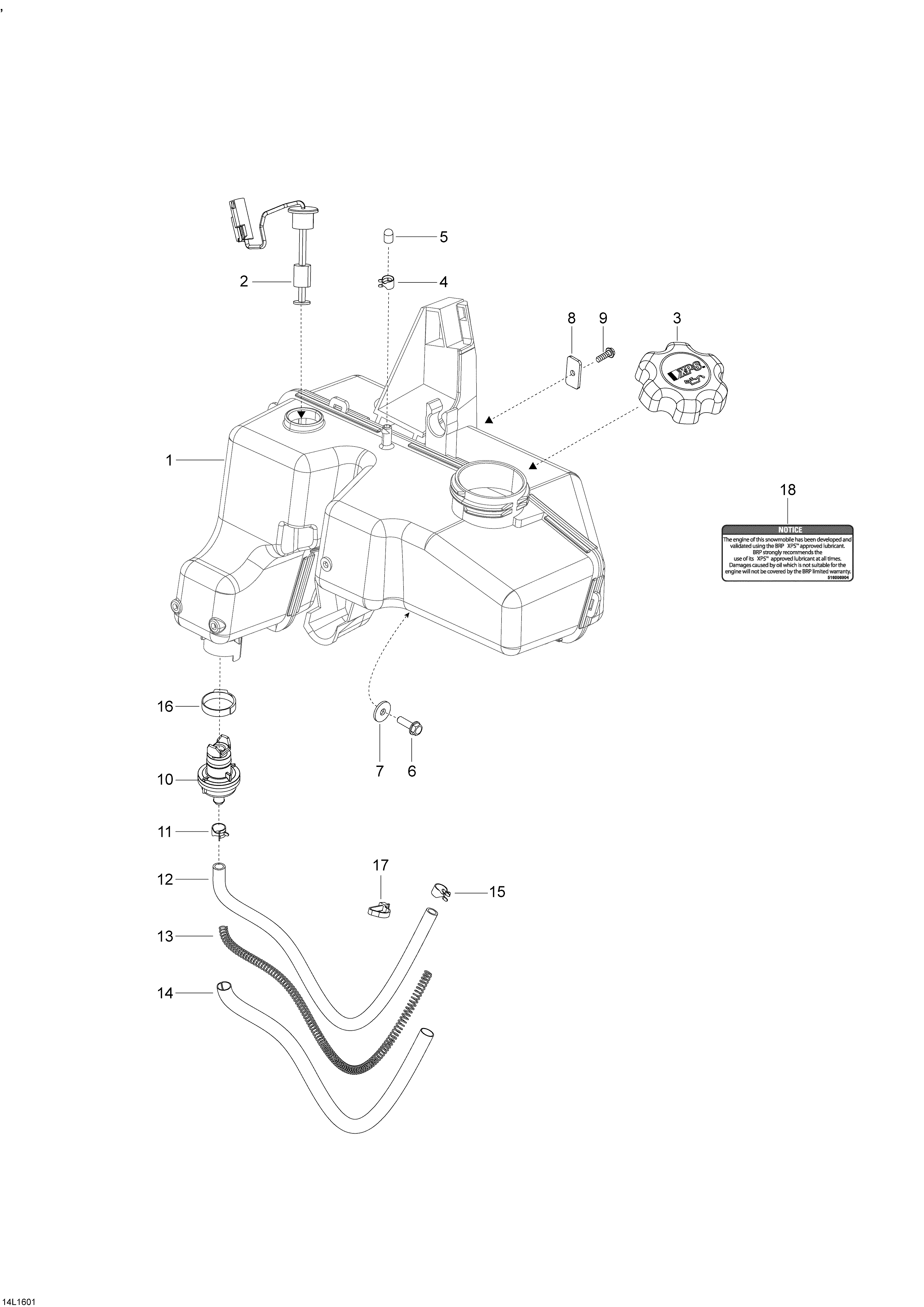

02- Oil System для BRP Lynx 59 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1519000255 Oil TankOil Tank
-
2515176978 Level SensorLevel Sensor
-
3519000273 CapCap
-
4293650043 ClampClamp
-
5519000216 CapCap
-
6250000768 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
7224061201 Flat WasherFlat Washer
-
8519000179 BracketBracket
-
9241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
10519000242 Oil FilterOil Filter
-
11414415200 Spring ClampSpring Clamp
-
12415080700 Polyurethane Hose (440mm)Polyurethane Hose (440mm)
-
13519000196 SpringSpring
-
14415079900 TubingTubing
-
15414420700 Spring ClipSpring Clip
-
16293650099 Crimp ClampCrimp Clamp
-
17414115200 Tie-Rap 180mmTie-Rap 180mm
-
18516006904 Warning DecalWarning Decal
