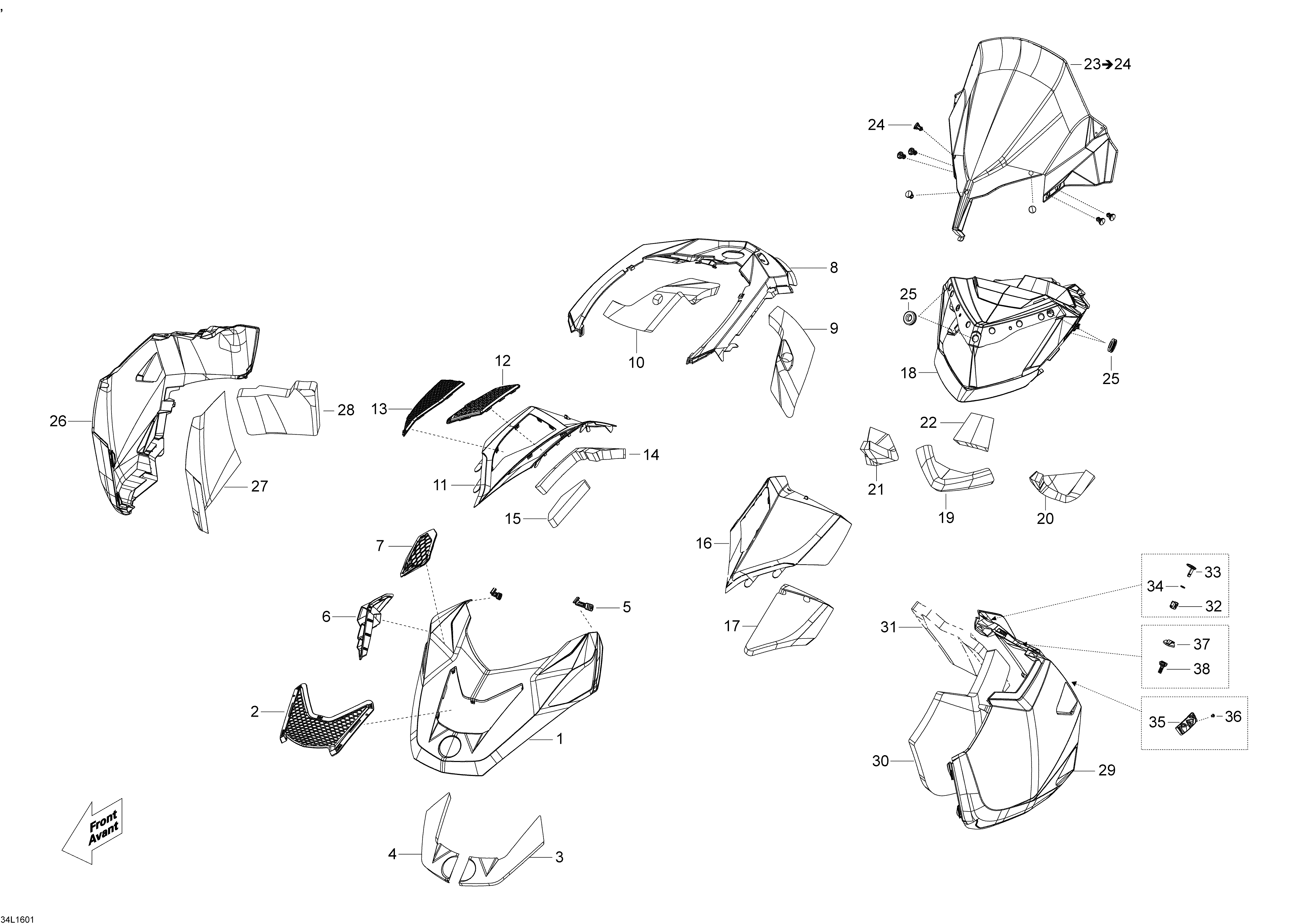

09- Hood And Windshield для BRP Lynx 59 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1517304588 Red HoodRed Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517304855 Intake GrillIntake Grill
-
7517304584 Intake GrillIntake Grill
-
8517304820 Black ConsoleBlack Console
-
9517305644 InsulatorInsulator
-
10517304318 InsulatorInsulator
-
11517304831 Red RH Side Access PanelRed RH Side Access Panel
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Access Panel Grill LowerRH Access Panel Grill Lower
-
14517304311 InsulatorInsulator
-
15517305987 InsulatorInsulator
-
16517304841 Red LH Side Access PanelRed LH Side Access Panel
-
17517304313 InsulatorInsulator
-
18517304002 Indicator SupportIndicator Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860201000 Windshield (580) Ass'y. Includes 23 To 24Windshield (580) Ass'y. Includes 23 To 24
-
24517304744 KnobKnob
-
25517303756 GrommetGrommet
-
26517304328 Black RH Side PanelBlack RH Side Panel
-
27517304709 RH FoamRH Foam
-
28517304310 RH Foam RearRH Foam Rear
-
29517304329 Black LH Side PanelBlack LH Side Panel
-
30517304707 LH FoamLH Foam
-
31517304309 LH Foam RearLH Foam Rear
-
32517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
33517304296 Quarter-Turn HandleQuarter-Turn Handle
-
34517304538 Locking PlateLocking Plate
-
35517304497 Side Panel SupportSide Panel Support
-
36293150211 RivetRivet
-
37517304075 End PieceEnd Piece
-
38517306057 LatchLatch
