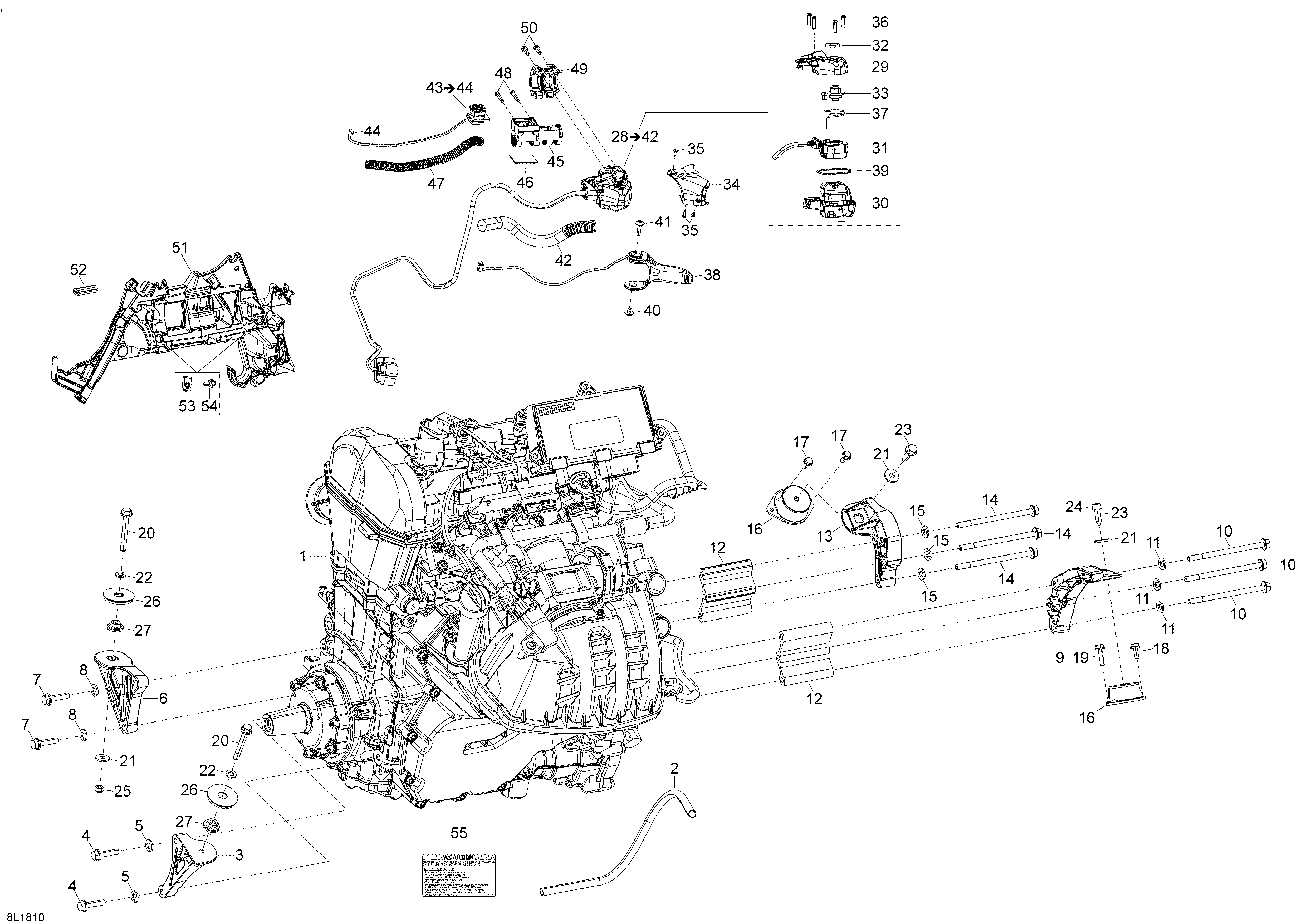

01- Engine Commander - 900 ACE для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
2512061067 Protector TubeProtector Tube
-
3512061139 Rear Support PTORear Support PTO
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6512061140 Front Support PTOFront Support PTO
-
7207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
8234281474 Conical Spring Washer M8Conical Spring Washer M8
-
9512061142 Rear Support MAGRear Support MAG
-
10207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
11250200157 Conical Spring Washer M8Conical Spring Washer M8
-
13512061141 Front Support MAGFront Support MAG
-
14207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
15250200157 Conical Spring Washer M8Conical Spring Washer M8
-
16512060729 Rubber MountRubber Mount
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
20207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
21503183200 Washer, YellowWasher, Yellow
-
22250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
23250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
24250000639 Cone Screw, M8 X 25Cone Screw, M8 X 25
-
25232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
26512060826 StopperStopper
-
27512060285 SpacerSpacer
-
28512061256 Housing Ass'y. Includes 28 to 34Housing Ass'y. Includes 28 to 34
-
29
-
30512060862 CapCap
-
31250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
32250000671 Torx ScrewTorx Screw
-
33512060961 ScrewScrew
-
34250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
43515177362 Kill SwitchKill Switch
-
45512060844 SupportSupport
-
46294000973 Friction TapeFriction Tape
-
47515177946 Protector TubeProtector Tube
-
48250000263 Torx Screw #8-18Torx Screw #8-18
-
49512060987 Front HousingFront Housing
-
50250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
51512060994 Module SupportModule Support
-
52271001530 TrimTrim
-
53250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
54207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
55516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
-
70414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
71293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
72414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
73293300123 O-RingO-Ring
-
74414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
75414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
76293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
