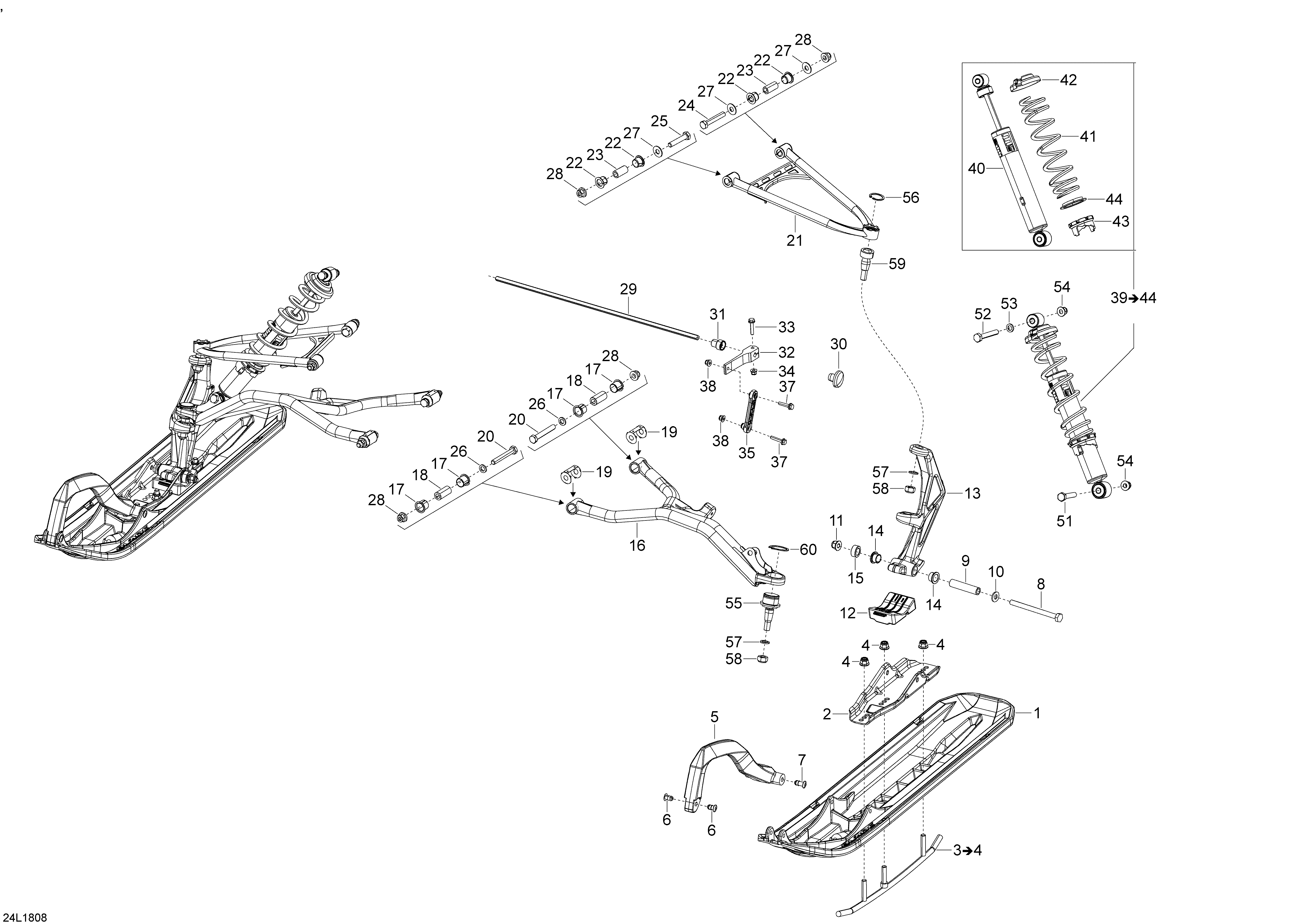

07- Front Suspension And Ski Commander - 900ACE - Package GT для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
1505074262 Ski Blade Xc BlackSki Blade Xc Black
-
2505073240 Ski Bridge WeldSki Bridge Weld
-
3860200959 Ski Runner Blade 3 Carb.. Includes 3 To 4Ski Runner Blade 3 Carb.. Includes 3 To 4
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5505073109 HandleHandle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Screw Socket M10 X 100Screw Socket M10 X 100
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505073579 Black LH Ski LegBlack LH Ski Leg
-
13505073580 Black RH Ski LegBlack RH Ski Leg
-
14505072690 Leg BushingLeg Bushing
-
15505072807 SpacerSpacer
-
16505073925 Arm-lower RhArm-lower Rh
-
16505073924 Arm-lower LhArm-lower Lh
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073985 Arm-upper Lh W Sway BarArm-upper Lh W Sway Bar
-
21505073986 Arm-upper Rh W Sway BarArm-upper Rh W Sway Bar
-
22505073329 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29505072444 StabilisatorStabilisator
-
30572091300 CapCap
-
31505072445 BushingBushing
-
32505074294 Stabilisator LeverStabilisator Lever
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505074123 Double Ball Joint LinkDouble Ball Joint Link
-
37207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
38233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
40505074275 Front Shock (eur). Package ComfortFront Shock (eur). Package Comfort
-
41505074329 Black Spring 300mm-18n/mm. All Packages Except ComfortBlack Spring 300mm-18n/mm. All Packages Except Comfort
-
42706200881 Spring StopperSpring Stopper
-
43505073625 Adjustment CamAdjustment Cam
-
44503191872 Spring GuideSpring Guide
-
51207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
52207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
53503189564 WasherWasher
-
54233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
55505073636 Ball JointBall Joint
-
56293370070 CirclipCirclip
-
57234021410 Flat Washer 12 mmFlat Washer 12 mm
-
58250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
59505072913 Upper Ball JointUpper Ball Joint
-
60293370035 CirclipCirclip
