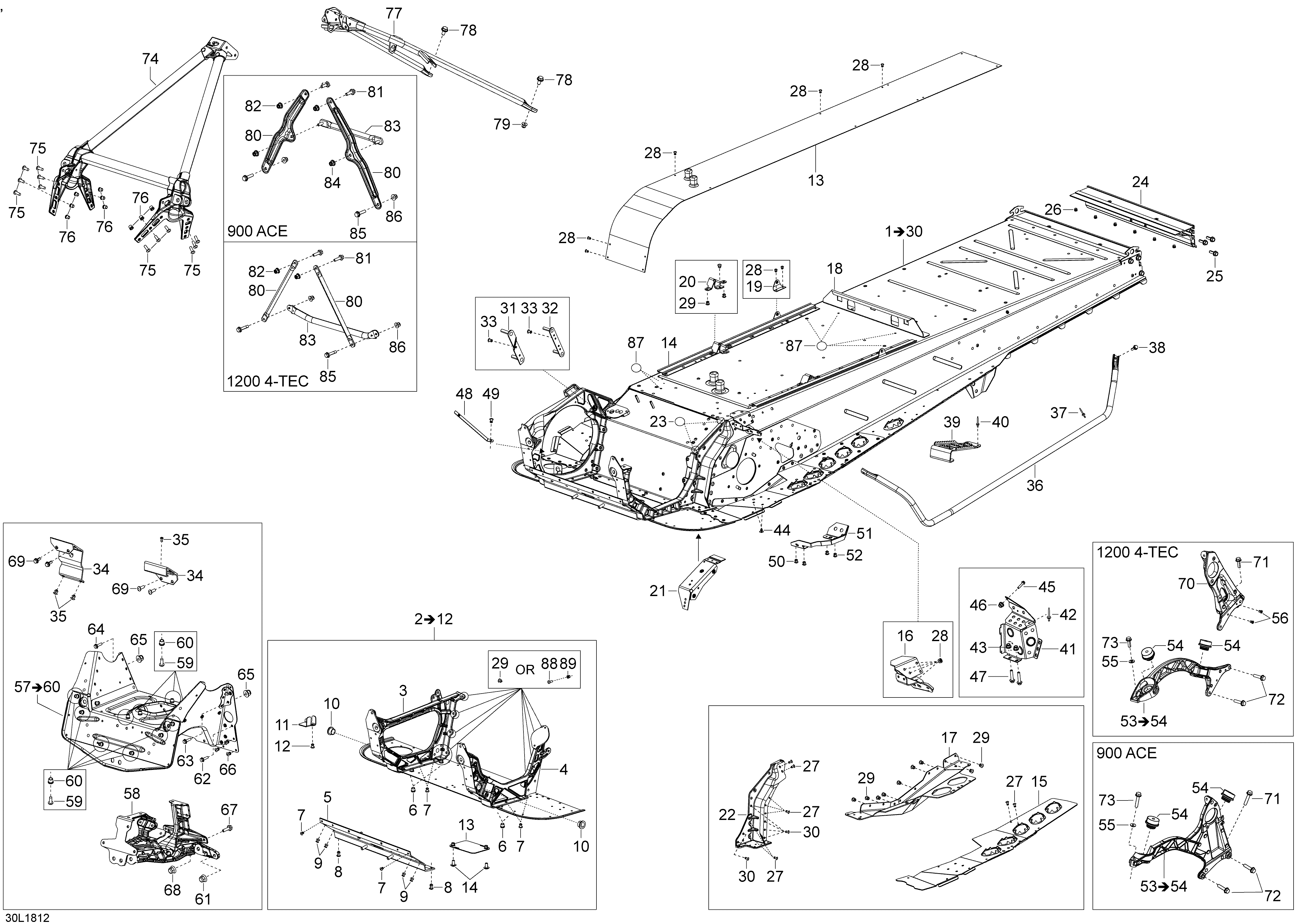

09- Frame COMMANDER - 900 ACE для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
1518329584 Black, Frame. Package Comfort. Includes 1 to 30Black, Frame. Package Comfort. Includes 1 to 30
-
1518329681 Black, Frame. All Packages Except Comfort. Includes 1 to 30Black, Frame. All Packages Except Comfort. Includes 1 to 30
-
2518329825 Module E. Includes 2 to 12Module E. Includes 2 to 12
-
2.1518329826 Bottom Plate. Not ShownBottom Plate. Not Shown
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg BushingLeg Bushing
-
11518327983 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000976 Tunnel Radiator. Includes 13 to 13,2Tunnel Radiator. Includes 13 to 13,2
-
13.1518329083 Rear Arm Bracket. Not ShownRear Arm Bracket. Not Shown
-
13.2518329083 Rear Arm Bracket. Not ShownRear Arm Bracket. Not Shown
-
14518326107 Fastening railFastening rail
-
15518328332 Footrest LHFootrest LH
-
15518328333 Footrest RHFootrest RH
-
16605355235 Fastening BracketFastening Bracket
-
17518328016 LH Drive Axle CoverLH Drive Axle Cover
-
17518328017 RH Drive Axle CoverRH Drive Axle Cover
-
18518325986 Battery support plateBattery support plate
-
19518329164 Seat Box BracketSeat Box Bracket
-
20518329109 LH Support Tube BracketLH Support Tube Bracket
-
20518329110 RH Support Tube BracketRH Support Tube Bracket
-
21518326430 Clinch nut plateClinch nut plate
-
22518325524 Frame Corner LHFrame Corner LH
-
22518328024 Frame Corner RHFrame Corner RH
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328748 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518326178 Engine SupportEngine Support
-
35293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
36518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
37390909100 Avex RivetAvex Rivet
-
36518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
38207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
39520001208 Black Rear Footrest. Package GT & LTDBlack Rear Footrest. Package GT & LTD
-
40293150102 Rivet 3/16''. Package GT & LTDRivet 3/16''. Package GT & LTD
-
41518327374 Black LH Toe HookBlack LH Toe Hook
-
42390909200 Avex RivetAvex Rivet
-
43605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
44414644300 DartDart
-
41518327376 Black RH Toe HookBlack RH Toe Hook
-
45207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
48514054846 Spring BracketSpring Bracket
-
49390909200 Avex RivetAvex Rivet
-
50390909200 Avex RivetAvex Rivet
-
53518327535 Brace Ass'y. Includes 53 to 54Brace Ass'y. Includes 53 to 54
-
54512060295 Rubber MountRubber Mount
-
55234281474 Conical Spring Washer M8Conical Spring Washer M8
-
57518328391 Cross Member. Includes 57 to 59Cross Member. Includes 57 to 59
-
58518327487 Front Suspension SupportFront Suspension Support
-
59207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
62210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
63207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
64207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
65233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
66293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
69207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
71207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
72207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
73207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
74518326975 Front MemberFront Member
-
77518329105 Upper Support TubeUpper Support Tube
-
78207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
79232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
80518326848 Upper Column SupportUpper Column Support
-
81207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
82233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
83518326355 Center Column SupportCenter Column Support
-
84233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
85207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
86233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
87518325560 Adhesive PatchAdhesive Patch
-
90518327505 Radiator Protector. Package Comfort & IceRipperRadiator Protector. Package Comfort & IceRipper
-
91860200737 Tunnel Protector Kit. Package Comfort & IceRipper. Not ShownTunnel Protector Kit. Package Comfort & IceRipper. Not Shown
