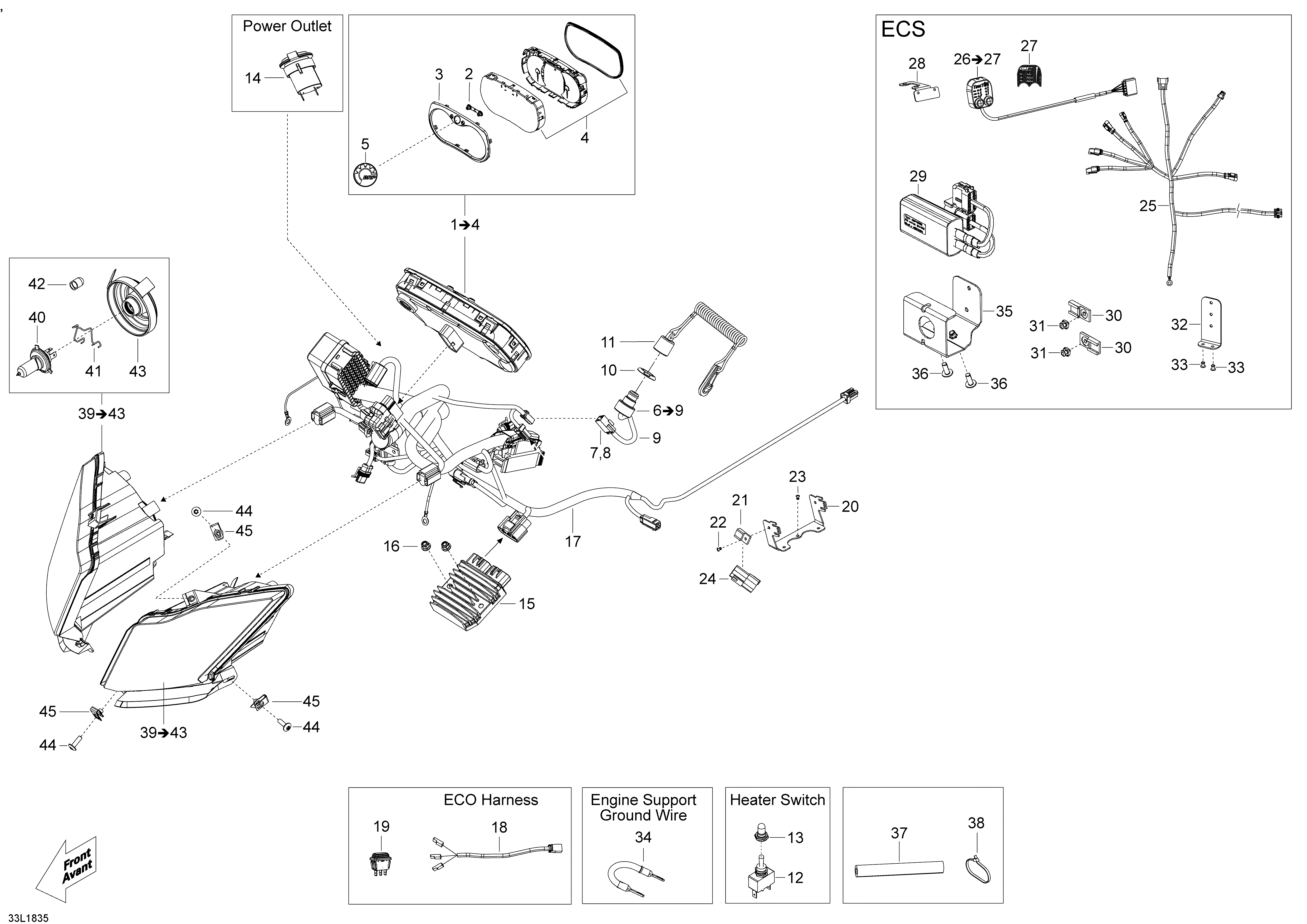

10- Electrical System для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
1515177913 Indicator. Includes 1 To 4Indicator. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515178146 Cap-Dess.. 900 ACECap-Dess.. 900 ACE
-
11515178044 DESS Cap. 1200 4-TECDESS Cap. 1200 4-TEC
-
11515178046 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12410110700 Heat Grip Switch. Model-ECSHeat Grip Switch. Model-ECS
-
13515175281 Switch Cover. Model-ECSSwitch Cover. Model-ECS
-
14710001248 Outlet DCOutlet DC
-
15515177325 Voltage RegulatorVoltage Regulator
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17515178451 Wiring Harness. 900 ACEWiring Harness. 900 ACE
-
18515177568 ECO HarnessECO Harness
-
19515177569 ECO Rocker SwitchECO Rocker Switch
-
20515178394 Fusebox SupportFusebox Support
-
21270000141 ClipClip
-
22293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
23390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
24710003006 HousingHousing
-
25515177976 Electric Suspension Harness. Model-ECSElectric Suspension Harness. Model-ECS
-
26515177777 Control Box Ass'y. Includes 26 To 27, Model-ECSControl Box Ass'y. Includes 26 To 27, Model-ECS
-
27515177778 Sticker. Model-ECSSticker. Model-ECS
-
28515178101 Control Box Assy Fastener. Model-ECSControl Box Assy Fastener. Model-ECS
-
29515177780 Control Box. Model-ECSControl Box. Model-ECS
-
30270000141 Clip. Model-ECSClip. Model-ECS
-
31293150037 Avdel Rivet 3/16''. Model-ECSAvdel Rivet 3/16''. Model-ECS
-
32515177944 Wire Support Plate. Model-ECSWire Support Plate. Model-ECS
-
33390909200 Avex Rivet. Model-ECSAvex Rivet. Model-ECS
-
34515176883 Ground WireGround Wire
-
35503194013 Support. Model-ECSSupport. Model-ECS
-
36250000721 Torx Screw. Model-ECSTorx Screw. Model-ECS
-
3739066 Aluminum Coated Tube (150mm)Aluminum Coated Tube (150mm)
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
39517304194 RH Headlamp Ass'y. Includes 39 To 43RH Headlamp Ass'y. Includes 39 To 43
-
39517304195 LH Headlamp Ass'y. Includes 39 To 43LH Headlamp Ass'y. Includes 39 To 43
-
40515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
42515176498 CapCap
-
43515176499 CoverCover
-
44250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
45250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
