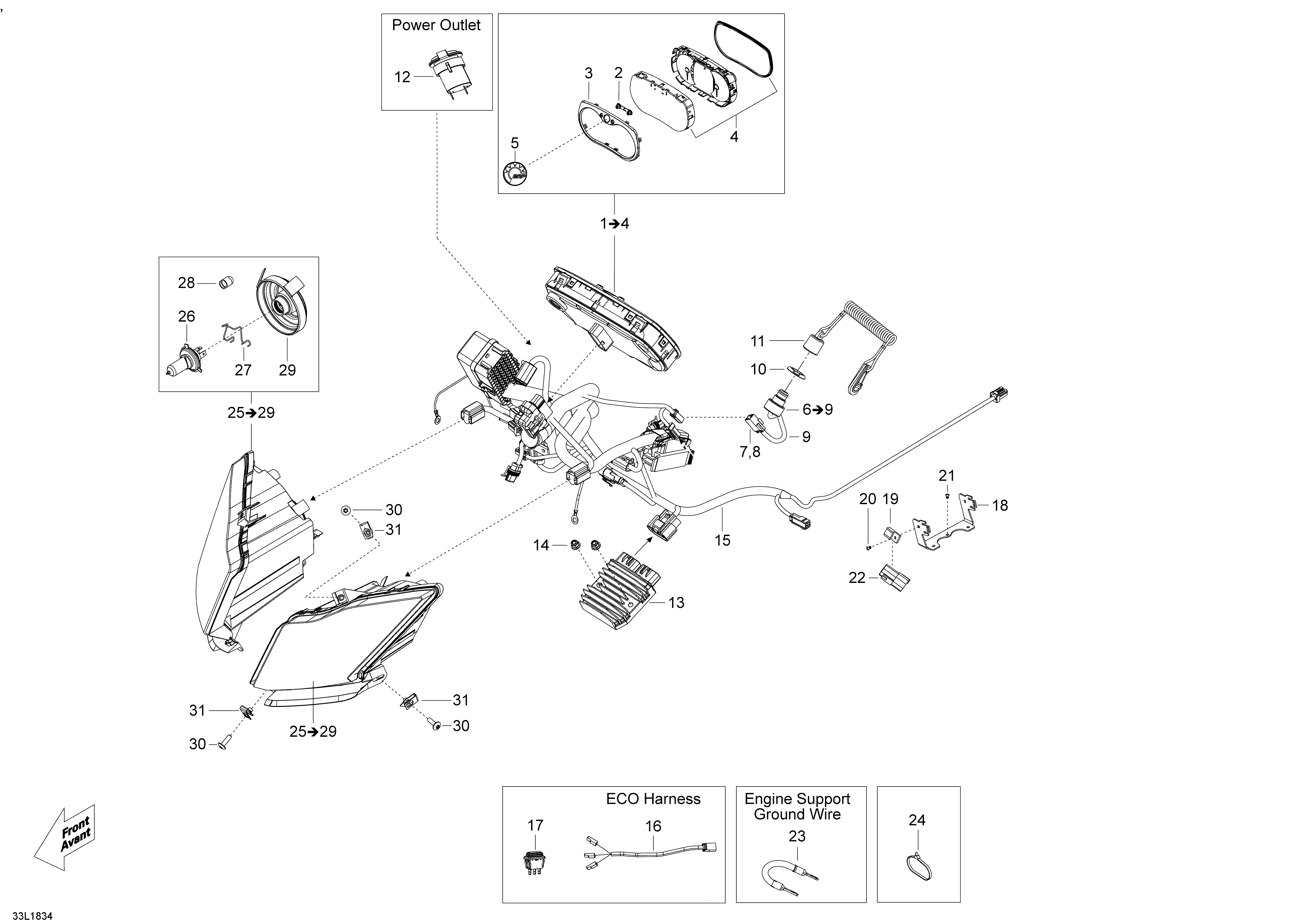

10- Electrical System 900 ACE для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
1515177913 Indicator. Includes 1 To 4Indicator. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515178044 DESS CapDESS Cap
-
11515178046 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12710001248 Outlet DCOutlet DC
-
13515177325 Voltage RegulatorVoltage Regulator
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15515178451 Wiring HarnessWiring Harness
-
16515177568 ECO HarnessECO Harness
-
17515177569 ECO Rocker SwitchECO Rocker Switch
-
18515178394 Fusebox SupportFusebox Support
-
19270000141 ClipClip
-
20293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22710003006 HousingHousing
-
23515176883 Ground WireGround Wire
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
24293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
25517304194 RH Headlamp Ass'y. Includes 25 To 29RH Headlamp Ass'y. Includes 25 To 29
-
25517304195 LH Headlamp Ass'y. Includes 25 To 29LH Headlamp Ass'y. Includes 25 To 29
-
26515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
28515176498 CapCap
-
29515176499 CoverCover
-
30250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
31250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
