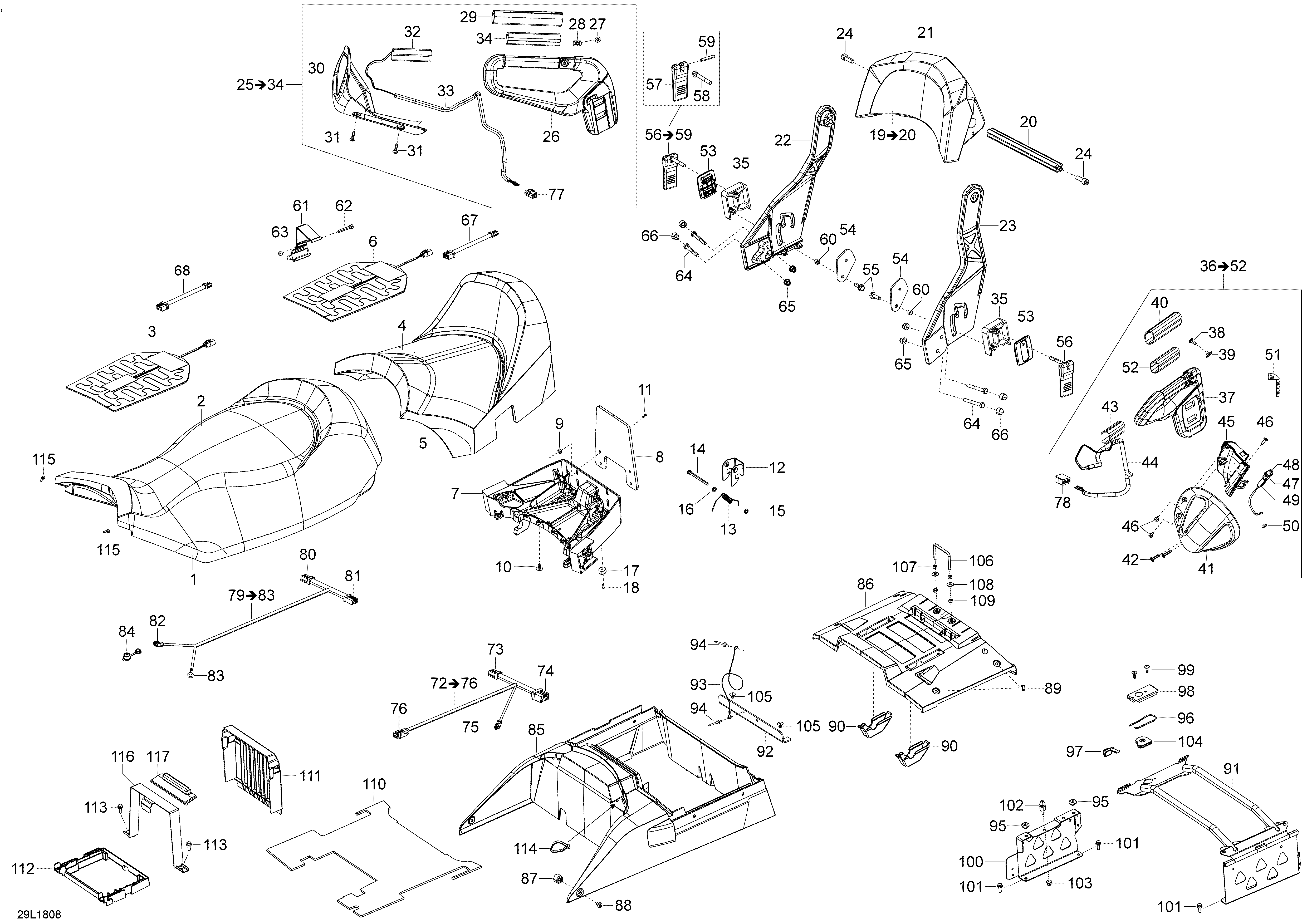

09- Seat Commander - GT & LTD для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
1510006315 Front Seat FoamFront Seat Foam
-
2510006371 Front CoverFront Cover
-
3515178222 Heated FilmHeated Film
-
4510006395 Rear Seat CoverRear Seat Cover
-
5510006094 Rear Seat FoamRear Seat Foam
-
6515178222 Heated Film. Comfort KitHeated Film. Comfort Kit
-
7510004816 Seat BaseSeat Base
-
8510005330 Backrest PlateBackrest Plate
-
9234062410 Flat Washer 6 mmFlat Washer 6 mm
-
10414644300 DartDart
-
11293150067 RivetRivet
-
12708000144 Latch, BlackLatch, Black
-
13708000369 SpringSpring
-
14207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
15732610072 Push NutPush Nut
-
16234061410 Flat Washer 6 mmFlat Washer 6 mm
-
17510006005 Stopper RubberStopper Rubber
-
18293150015 Pop Rivet 1/8”Pop Rivet 1/8”
-
19510006205 Backrest Foam. Includes 17 To 18Backrest Foam. Includes 17 To 18
-
21510006398 Backrest CoverBackrest Cover
-
22510005420 R.H. ArmR.H. Arm
-
23510005419 L.H. ArmL.H. Arm
-
24250000553 Forming Screw M10 x 25Forming Screw M10 x 25
-
25510005866 RH Handle. Includes 25 To 34RH Handle. Includes 25 To 34
-
26510005865 RH HandleRH Handle
-
27250000721 Torx ScrewTorx Screw
-
28293100003 Nut M6Nut M6
-
29510004449 Handle GripHandle Grip
-
30510004415 RH DeflectorRH Deflector
-
31250000199 Screw 25mmScrew 25mm
-
32515176393 HeaterHeater
-
33515175506 TubingTubing
-
34510004709 Handle ReinforforcementHandle Reinforforcement
-
35510004939 AdapterAdapter
-
36510005867 LH Handle. Includes 36 To 52LH Handle. Includes 36 To 52
-
37510005862 LH HandleLH Handle
-
38250000721 Torx ScrewTorx Screw
-
39293100003 Nut M6Nut M6
-
40510004449 Handle GripHandle Grip
-
41510004416 LH DeflectorLH Deflector
-
42250000199 Screw 25mmScrew 25mm
-
43515176393 HeaterHeater
-
44515175506 TubingTubing
-
45510004566 Switch HousingSwitch Housing
-
46250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
47510004413 Rocker SwitchRocker Switch
-
48510004414 Switch ProtectorSwitch Protector
-
49515176241 LH Handle HarnessLH Handle Harness
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
51516002835 Handle Heater DecalHandle Heater Decal
-
52510004709 Handle ReinforforcementHandle Reinforforcement
-
53510004405 MouldingMoulding
-
54510004990 Counter PlateCounter Plate
-
55250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
56510004992 Lock Ass'y. Includes 56 To 59Lock Ass'y. Includes 56 To 59
-
575243419 LockLock
-
58510004993 ScrewScrew
-
59414821400 PinPin
-
60510005507 SleeveSleeve
-
61510005139 Security LockSecurity Lock
-
62205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
63232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
64207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
65233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6628056 CoverCover
-
67515177286 Seat Heated Adapter. Comfort KitSeat Heated Adapter. Comfort Kit
-
68515177286 Seat Heated Adapter. Comfort KitSeat Heated Adapter. Comfort Kit
-
72515177084 Seat Harness. Includes 72 To 76Seat Harness. Includes 72 To 76
-
73515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
73515175231 Female TerminalFemale Terminal
-
74515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
74515175231 Female TerminalFemale Terminal
-
75515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
75515175232 Male TerminalMale Terminal
-
77515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
78515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
79515177210 Seat Harness. Includes 79 To 83Seat Harness. Includes 79 To 83
-
80515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
80515175231 Female TerminalFemale Terminal
-
81515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
81515175232 Male TerminalMale Terminal
-
83515175172 Open BarrelOpen Barrel
-
84572103300 CapCap
-
85510006243 Storage BoxStorage Box
-
86510006244 Storage Box CoverStorage Box Cover
-
87510005147 BushingBushing
-
88250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
89293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
90510004999 CoverCover
-
91510005714 Lock tubeLock tube
-
92510005156 Cable Support PlateCable Support Plate
-
93293750070 Seat Retainer CableSeat Retainer Cable
-
94293150163 Rivet HucklokRivet Hucklok
-
95605452114 PlugPlug
-
96269700017 Latch SpringLatch Spring
-
97510005072 PullerPuller
-
98510005698 Lock Pin CoverLock Pin Cover
-
99250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
100510005845 Locking PlateLocking Plate
-
101207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
102605452035 Lock PinLock Pin
-
103233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
104510005044 Lock Pin GuideLock Pin Guide
-
105293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
106510004876 Fastener PinFastener Pin
-
107250000135 Hex. Nut M6Hex. Nut M6
-
10820117 WasherWasher
-
109232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
110510005043 FoamFoam
-
111510005079 Battery CoverBattery Cover
-
112515176804 Battery SupportBattery Support
-
113207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
114605627000 Tie-RapTie-Rap
-
115250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
116510005143 Battery StrapBattery Strap
-
117510005146 Strap CoverStrap Cover
