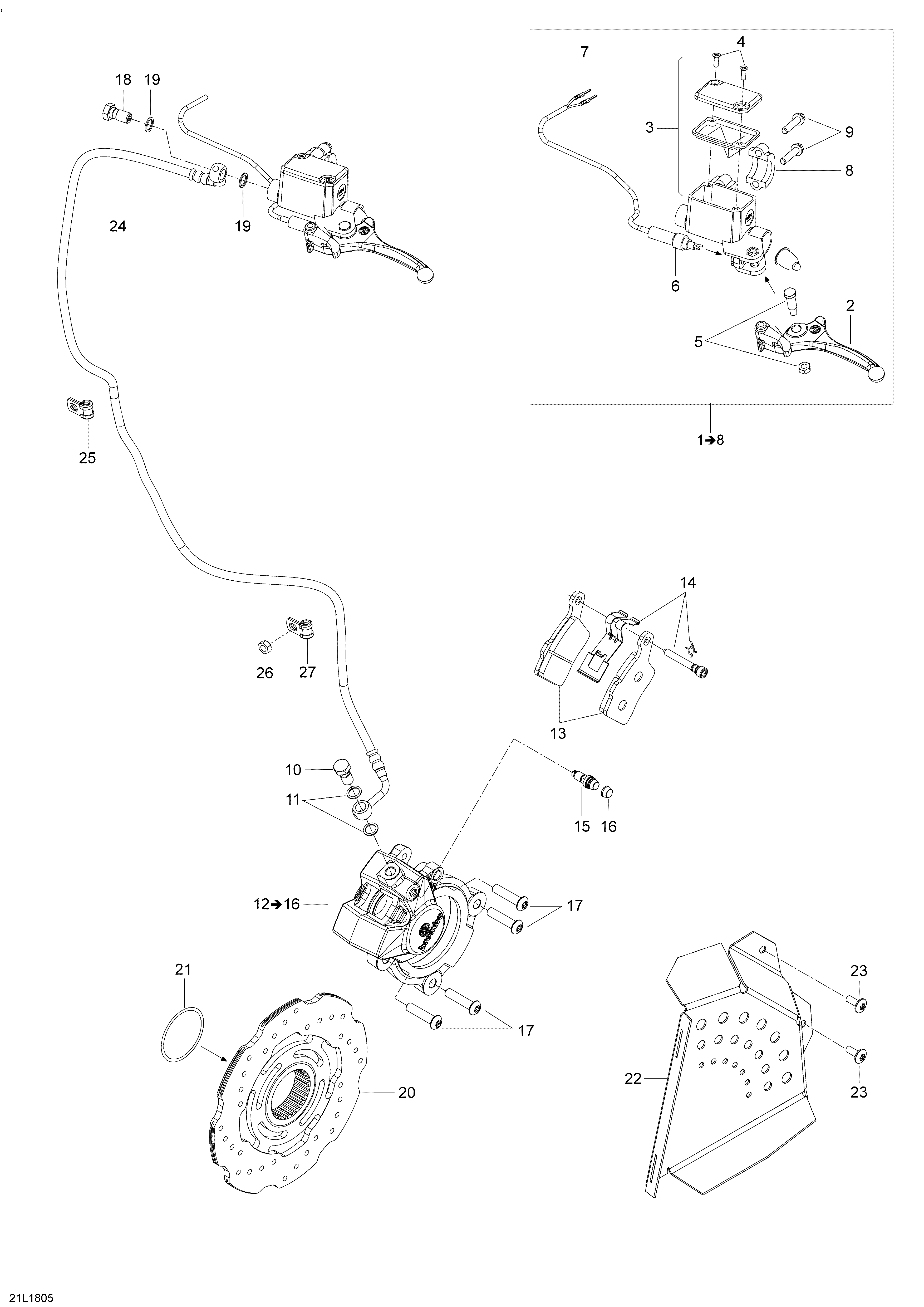

06- Brakes Tunnel 500 для BRP Lynx Commander 900 ACE - 2018
-
№АртикулНазвание
-
1507032596 Master Cylinder Ass'y. Includes 10 to 10,007Master Cylinder Ass'y. Includes 10 to 10,007
-
2507032476 LeverLever
-
60507032477 Clamp And Screw Kit. Includes 10,002 to 10,003Clamp And Screw Kit. Includes 10,002 to 10,003
-
60250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
3507032478 Master Cylinder Reservoir Ass'y. Includes 10,004 to 10,005Master Cylinder Reservoir Ass'y. Includes 10,004 to 10,005
-
4415129356 Screw M4 X 20Screw M4 X 20
-
5415030000 Pin Ass'yPin Ass'y
-
6507032592 MicroswitchMicroswitch
-
8719000049 Clamps KitClamps Kit
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032594 Brake caliper assembly. CE. Includes 200 to 200,003Brake caliper assembly. CE. Includes 200 to 200,003
-
12507032602 Brake caliper assembly. Includes 200 to 200,003Brake caliper assembly. Includes 200 to 200,003
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
15507032475 BleederBleeder
-
17250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21293300209 O-ringO-ring
-
22507032537 Disk ProtectorDisk Protector
-
60518328661 Counter Plate. Includes 505 to 505,001Counter Plate. Includes 505 to 505,001
-
23233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
60293900129 Hexagonal CapHexagonal Cap
-
24507032548 Hose, Steel BraidedHose, Steel Braided
-
25414108400 Open ClampOpen Clamp
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
