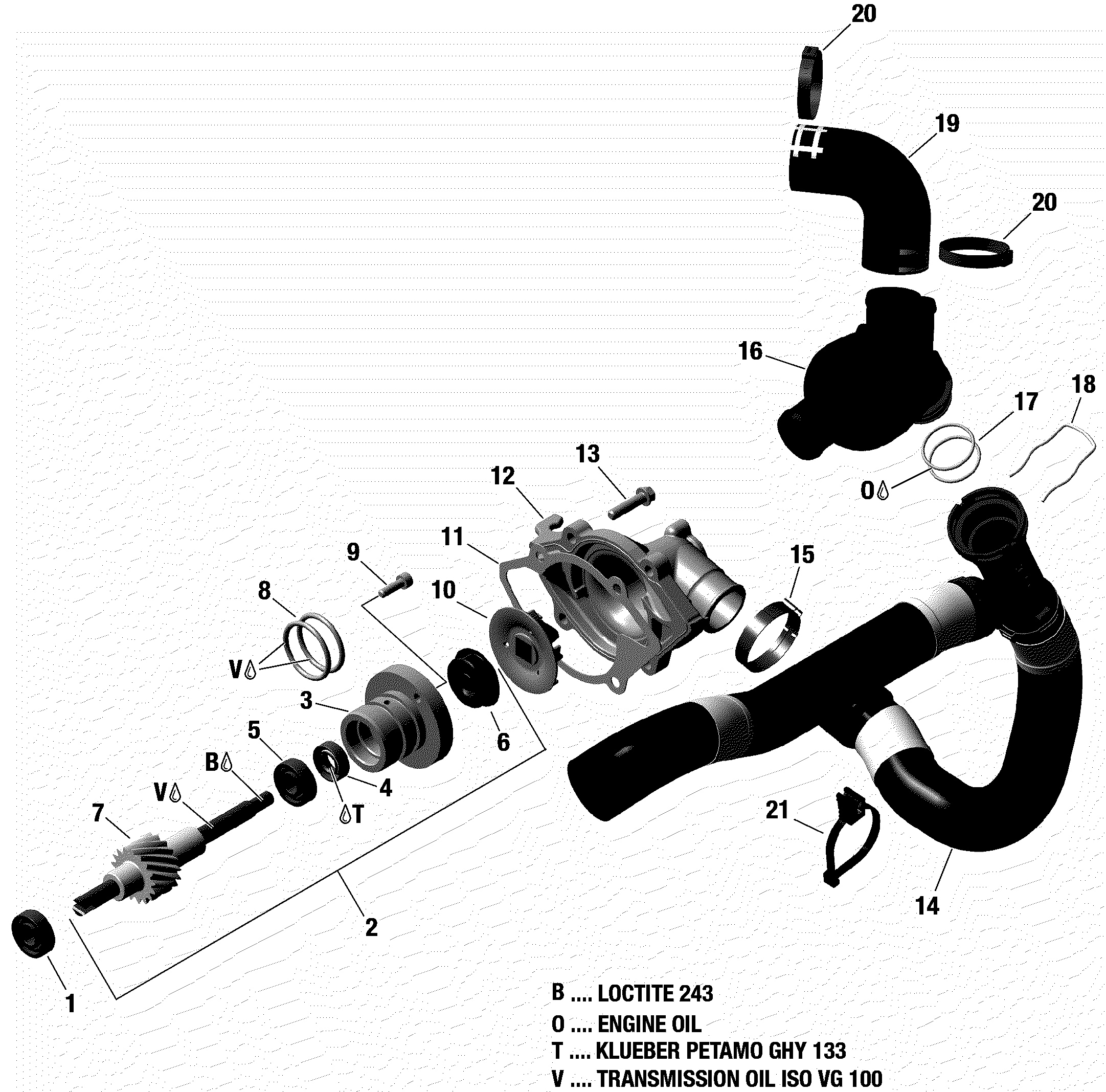

01- Engine Cooling для BRP Lynx RAVE Racing - 2018
-
№АртикулНазвание
-
1420232100 Ball BearingBall Bearing
-
2>8420891479 Water Pump ShaftWater Pump Shaft
-
3420847933 Step CollarStep Collar
-
4420230198 Oil SealOil Seal
-
5420232100 Ball BearingBall Bearing
-
6420650370 Rotary SealRotary Seal
-
8420950890 O-RingO-Ring
-
9420840514 Allen Screw M5 x 16Allen Screw M5 x 16
-
10420222507 ImpellerImpeller
-
11420931812 GasketGasket
-
12420933632 Waterpump HousingWaterpump Housing
-
13420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
14420822801 Molded HoseMolded Hose
-
15420951293 Gear ClampGear Clamp
-
16420822837 Thermostat HousingThermostat Housing
-
17420430062 O-RingO-Ring
-
18420939344 Spring ClipSpring Clip
-
19420822820 Hose ReturnHose Return
-
20420951123 Clamp 34.9-38.1MMClamp 34.9-38.1MM
-
21420951652 Tie Rap 200 X 4.6Tie Rap 200 X 4.6
